Installation Procedure

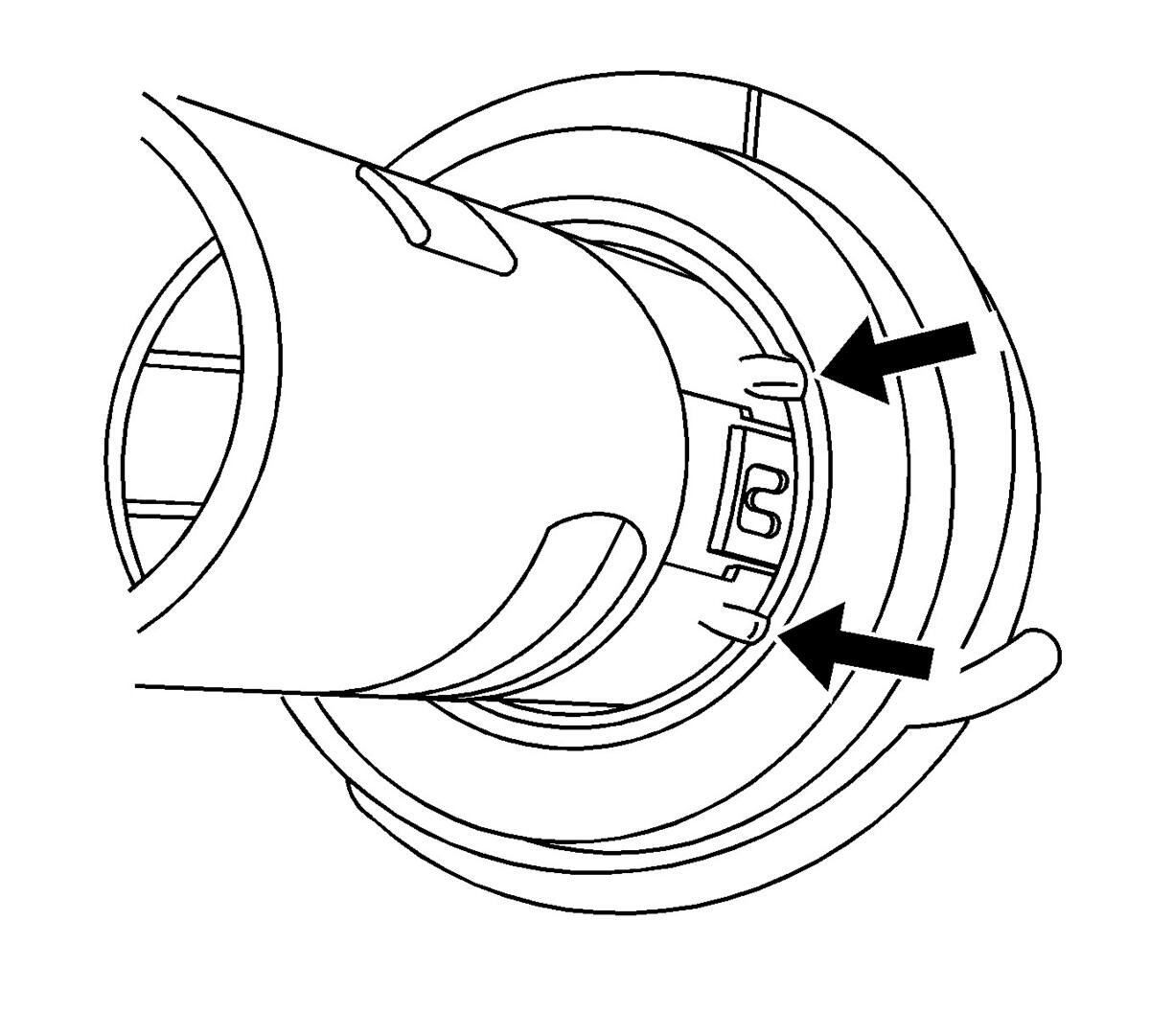

    Fig 1: Receptacle Tabs & Retainer Slots
    GM901555Courtesy of GENERAL MOTORS COMPANY
  1. Route the connector through the retainer. Align the accessory power receptacle retainer to the slot in the opening.
  2. Install the retainer by pressing into place fully seated.
  3. Connect the electrical connector to the receptacle.
  4. Align the tabs on the receptacle to the slots in the retainer. Install the accessory power receptacle by pressing into place until fully seated.
  5. Install the accessory power receptacle fuse.
