Battery Negative Cable Replacement

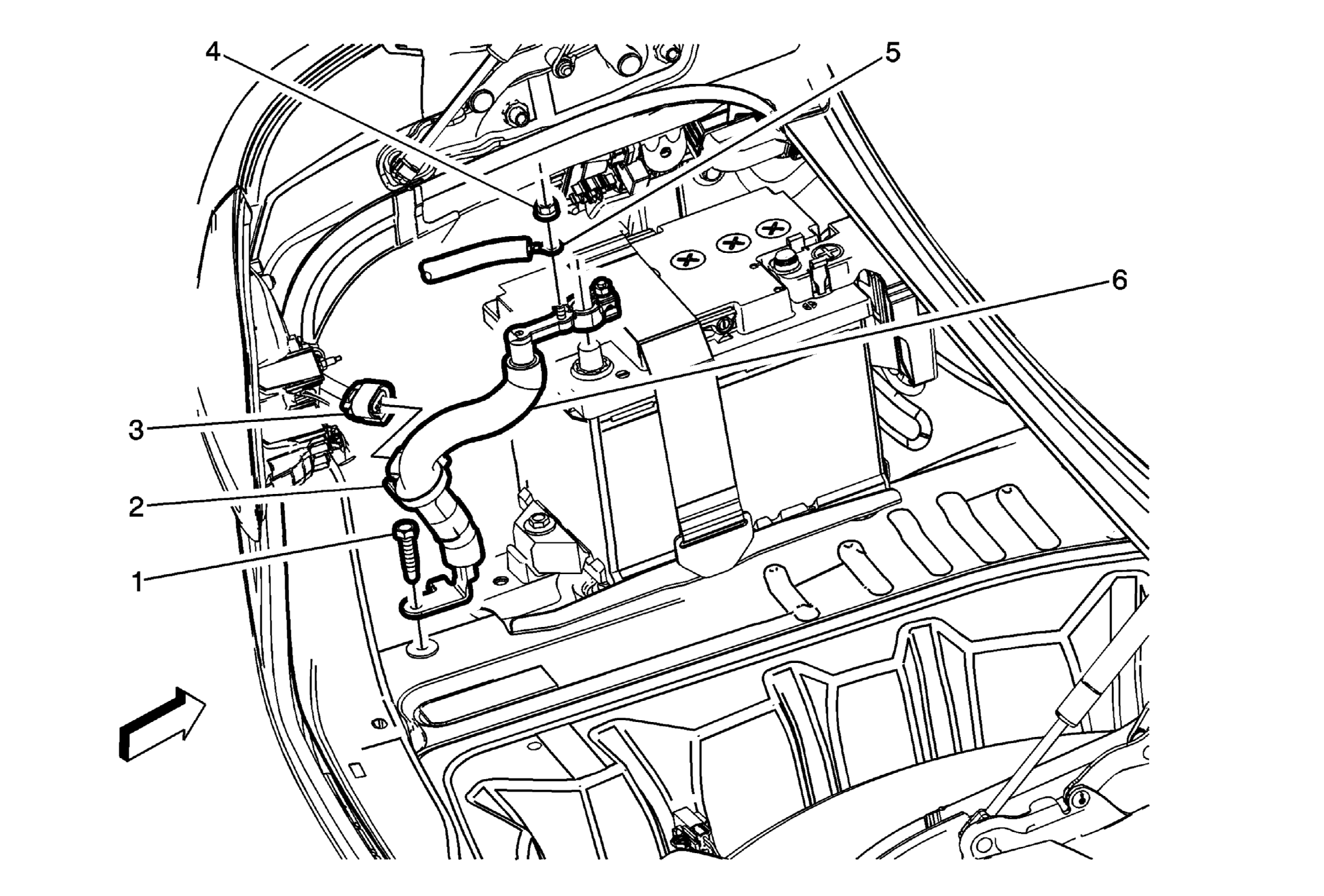

Fig 1: Battery Negative Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Battery Disconnect Warning . Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Battery Negative Cable Ground Fastener CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Battery Current Sensor
3	Body Harness Connector
4	Body Harness Ground Fastener Tighten 9 N.m (80 lb in)
5	Body Harness Ground Terminal
6	Battery Negative Cable Procedure Disconnect the body harness connector from the battery current sensor. Remove the body harness ground attached to the battery negative cable clamp. Remove the battery negative cable ground fastener and remove the battery negative cable from the rear compartment. If replacing the battery negative cable, transfer the battery current sensor.
