Installation Procedure

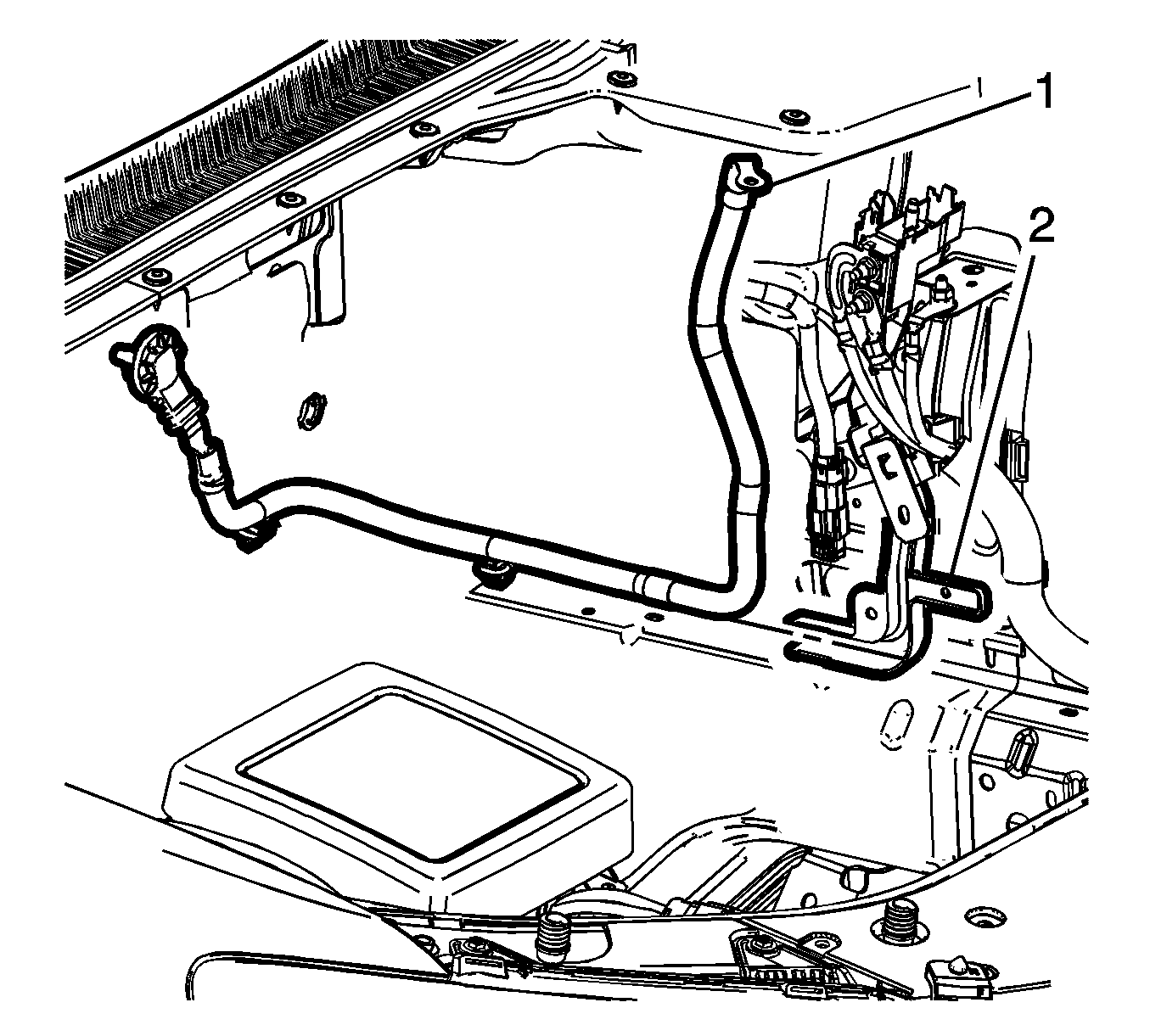

    Fig 1: Battery Positive Extension Cable & Conduit
    GM3218184Courtesy of GENERAL MOTORS COMPANY
  1. Install the battery positive extension cable (1) into the harness cable conduit (2).

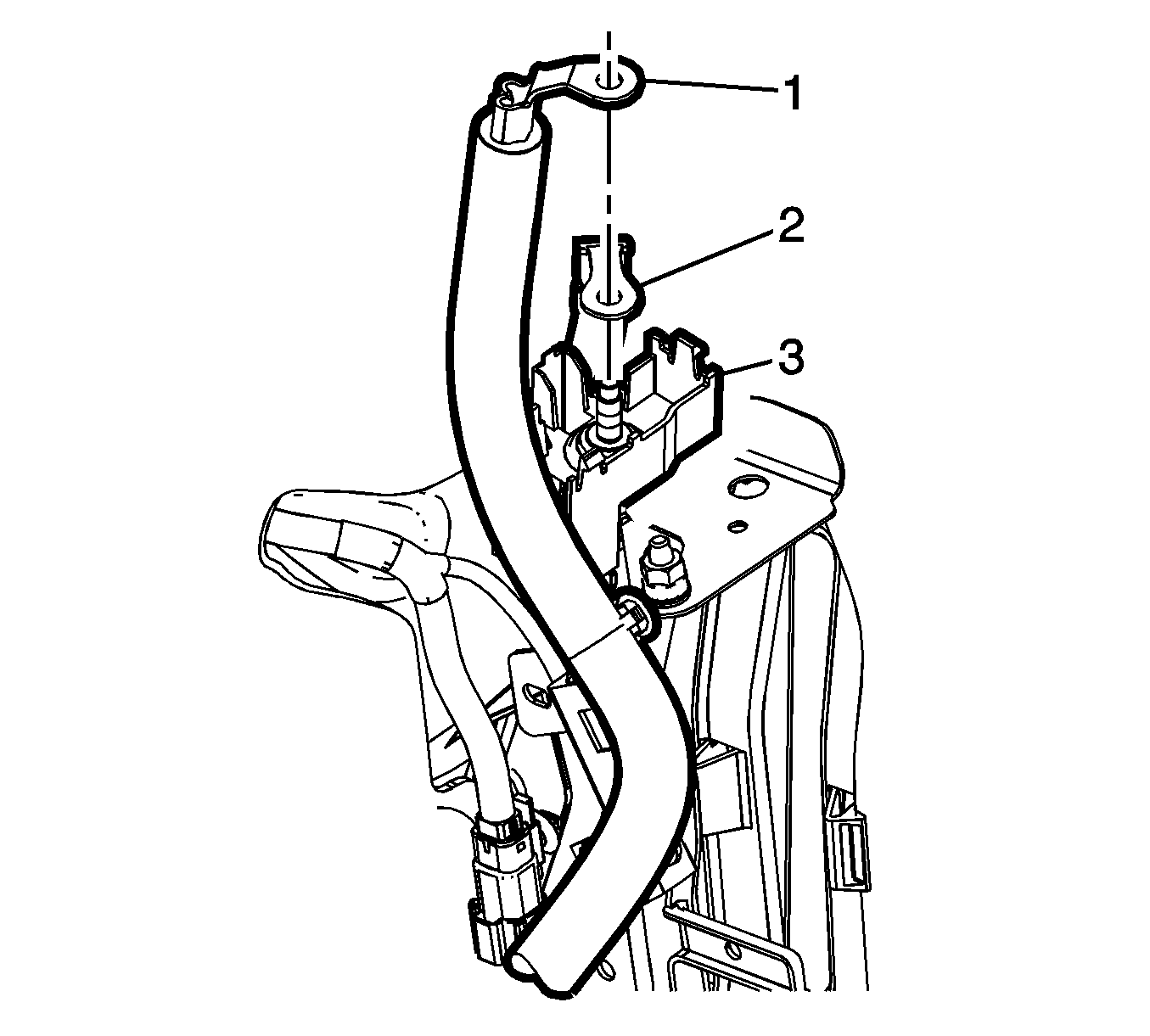

    2. Fig 2: Starter Solenoid Wiring Harness, Extension Cable & Junction Block
    GM3218183Courtesy of GENERAL MOTORS COMPANY
  2. Attach the battery positive extension cable terminal (2) to the stud on the junction block (3).
  3. Attach the starter solenoid wiring harness cable (1) to the junction block stud.

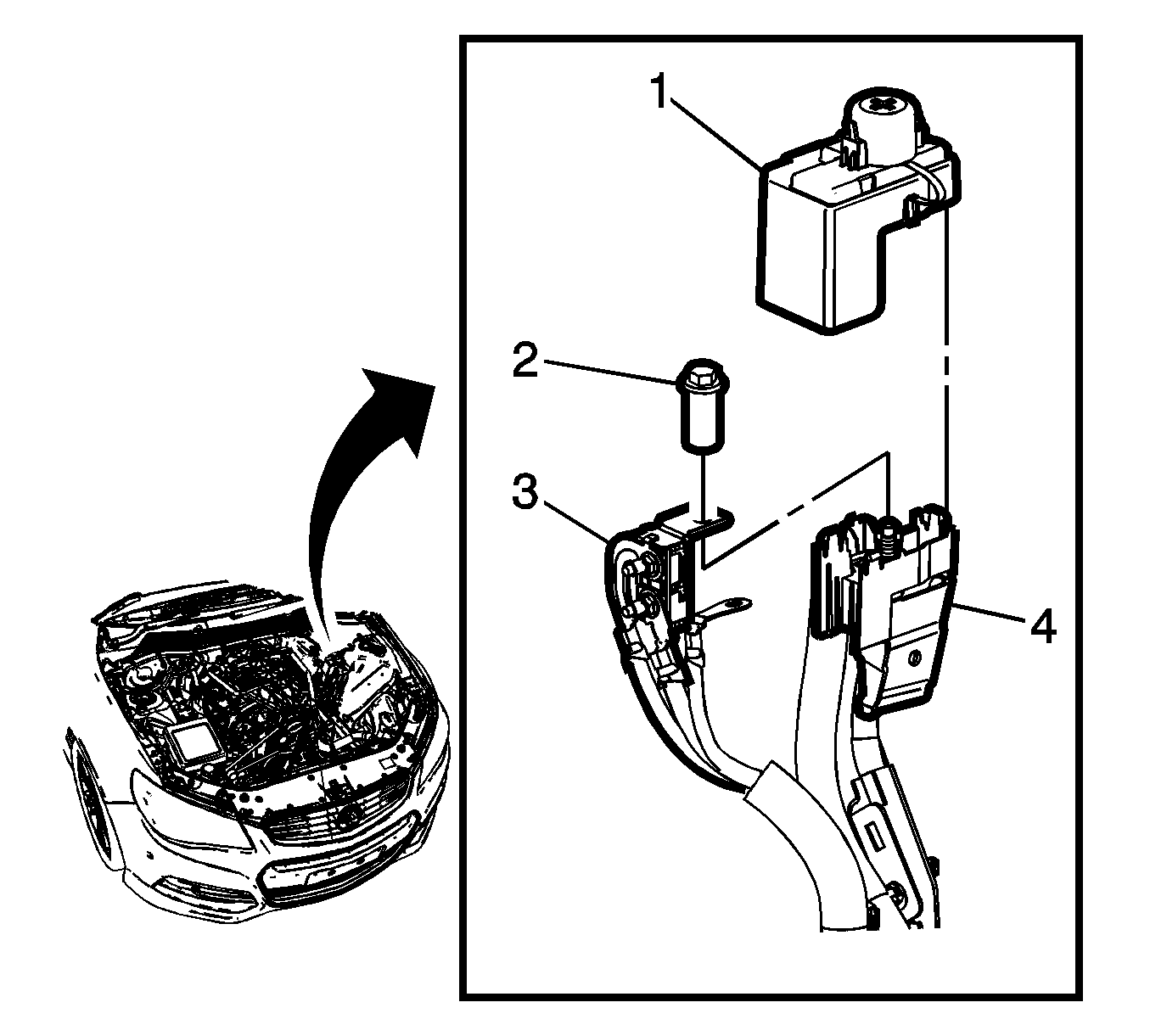

    4. Fig 3: Battery Positive Cable Junction Block Stud & Cover
    GM3218181Courtesy of GENERAL MOTORS COMPANY
  4. Install the engine wiring and battery positive cable along with the attached mega fuse, to the junction block (4).
    5. CAUTION:

    Refer to Fastener Caution .

  5. Install the battery positive junction block stud (2) and tighten to 15 N.m (11 lb ft).
  6. Install the junction block cover (1).

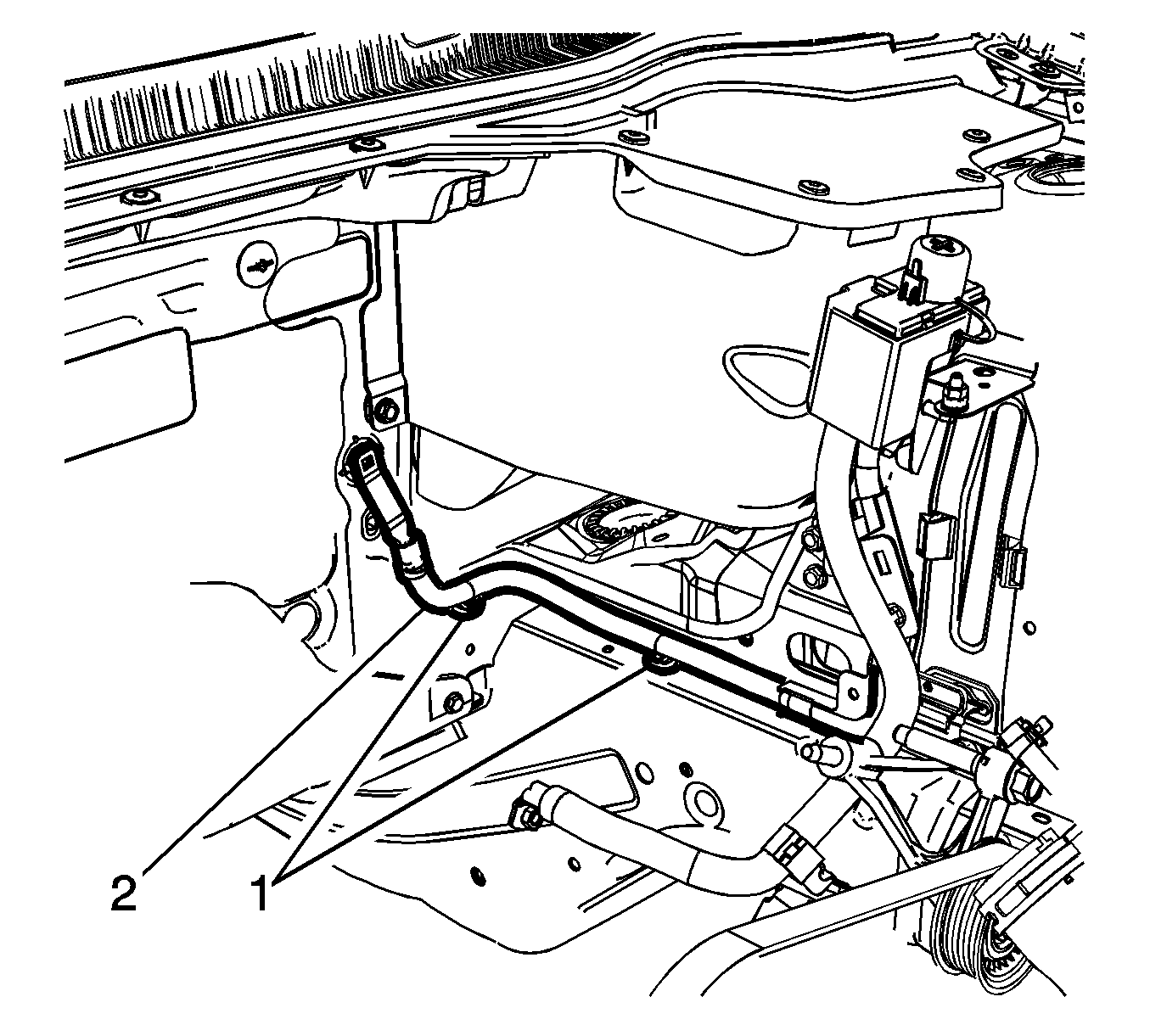

    7. Fig 4: Battery Positive Extension Cable Retainers
    GM3218180Courtesy of GENERAL MOTORS COMPANY
  7. Install the battery positive extension cable retainers (1) to the frame rail.
  8. Position the battery positive extension cable (2) into the plenum passthrough opening.

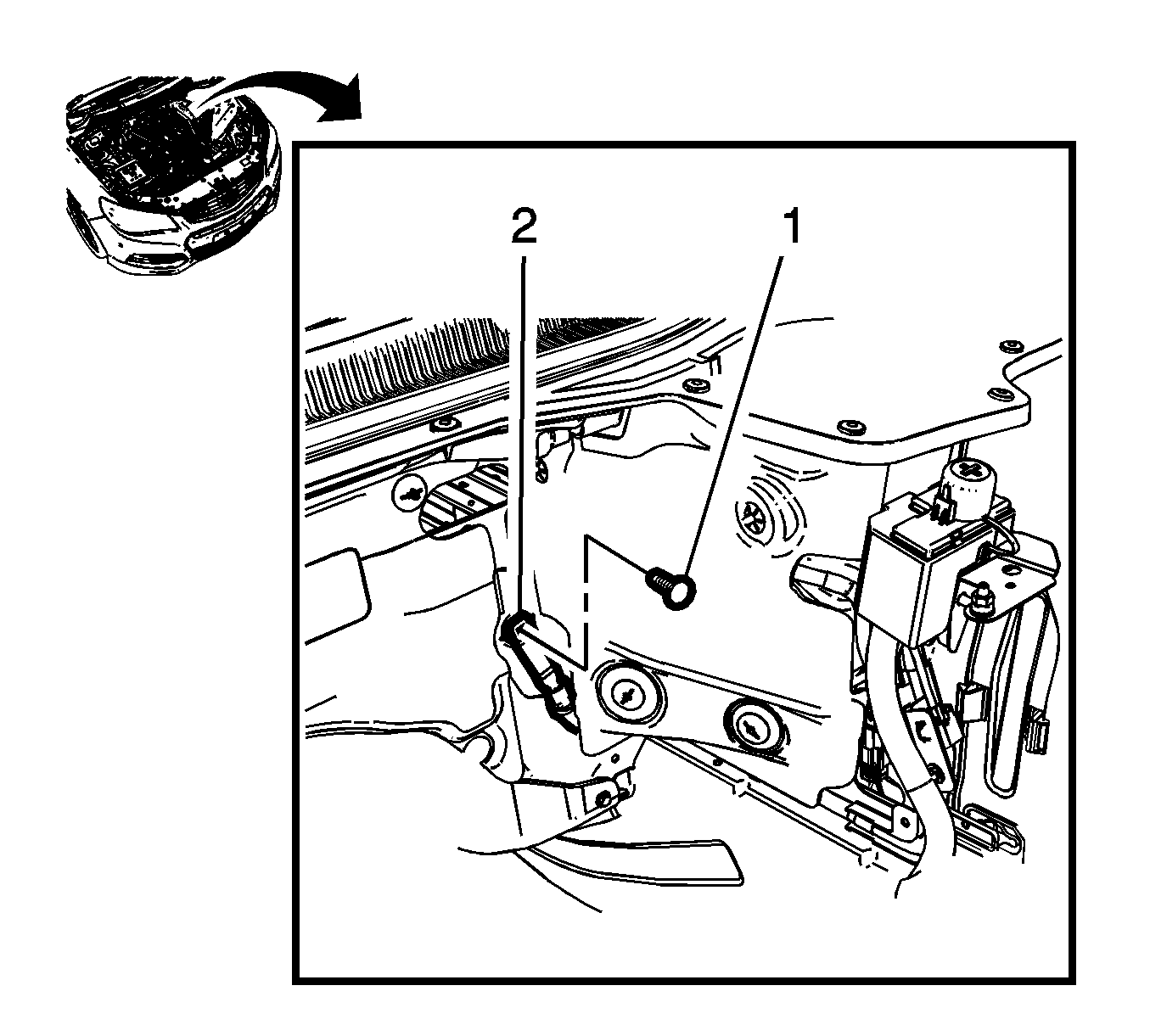

    9. Fig 5: Battery Positive Extension Cable & Passthrough Stud
    GM3218178Courtesy of GENERAL MOTORS COMPANY
  9. Install the plenum passthrough stud (1) into the battery positive extension cable (2).
  10. Install the protective sleeve over the battery positive extension cable.

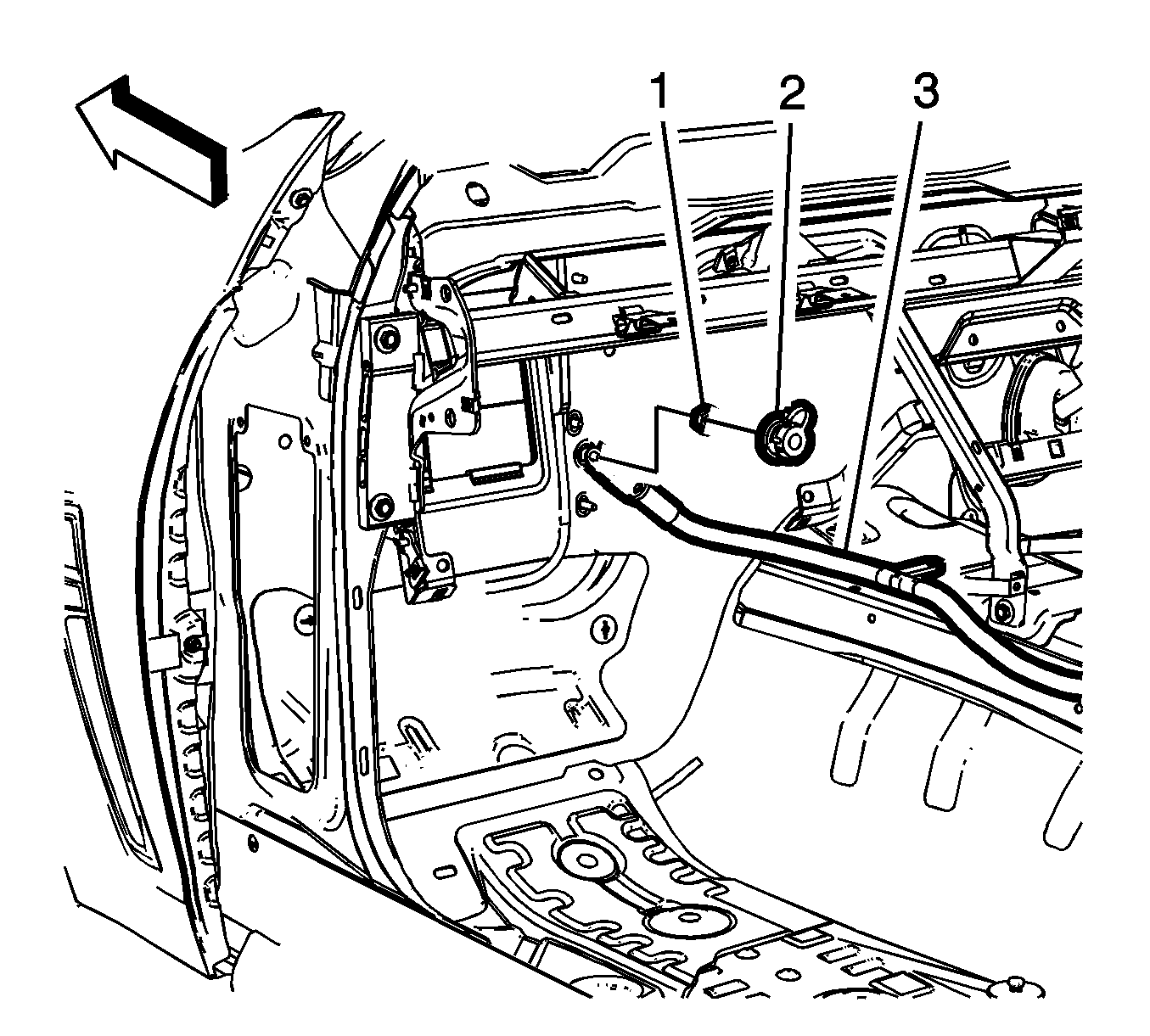

    11. Fig 6: Battery Positive Cable, Protective Cover & Fastener
    GM3218177Courtesy of GENERAL MOTORS COMPANY
  11. Install the battery positive extension cable (3) to the plenum passthrough stud and tighten the fastener (1) to 15 N.m (11 lb ft).
  12. Install the battery positive cable protective cover (2).
  13. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
