Installation Procedure

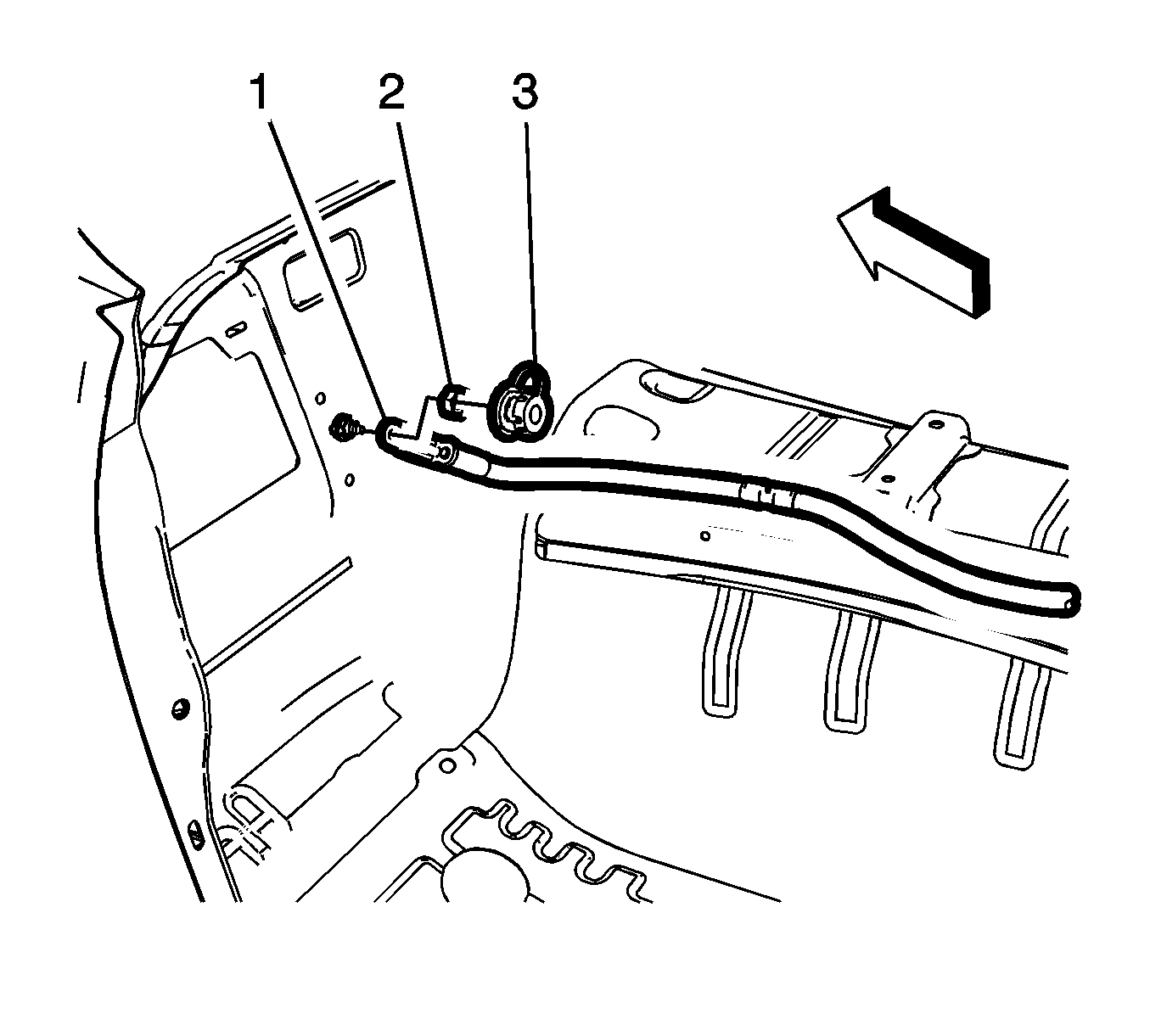

    Fig 1: Battery Positive Cable, Passthrough Fastener & Cable Cover
    GM3226068Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the battery positive cable (1) to the passthrough stud and tighten the fastener (2) to 15 N.m (11 lb ft).
  2. Install the protective cover (3).

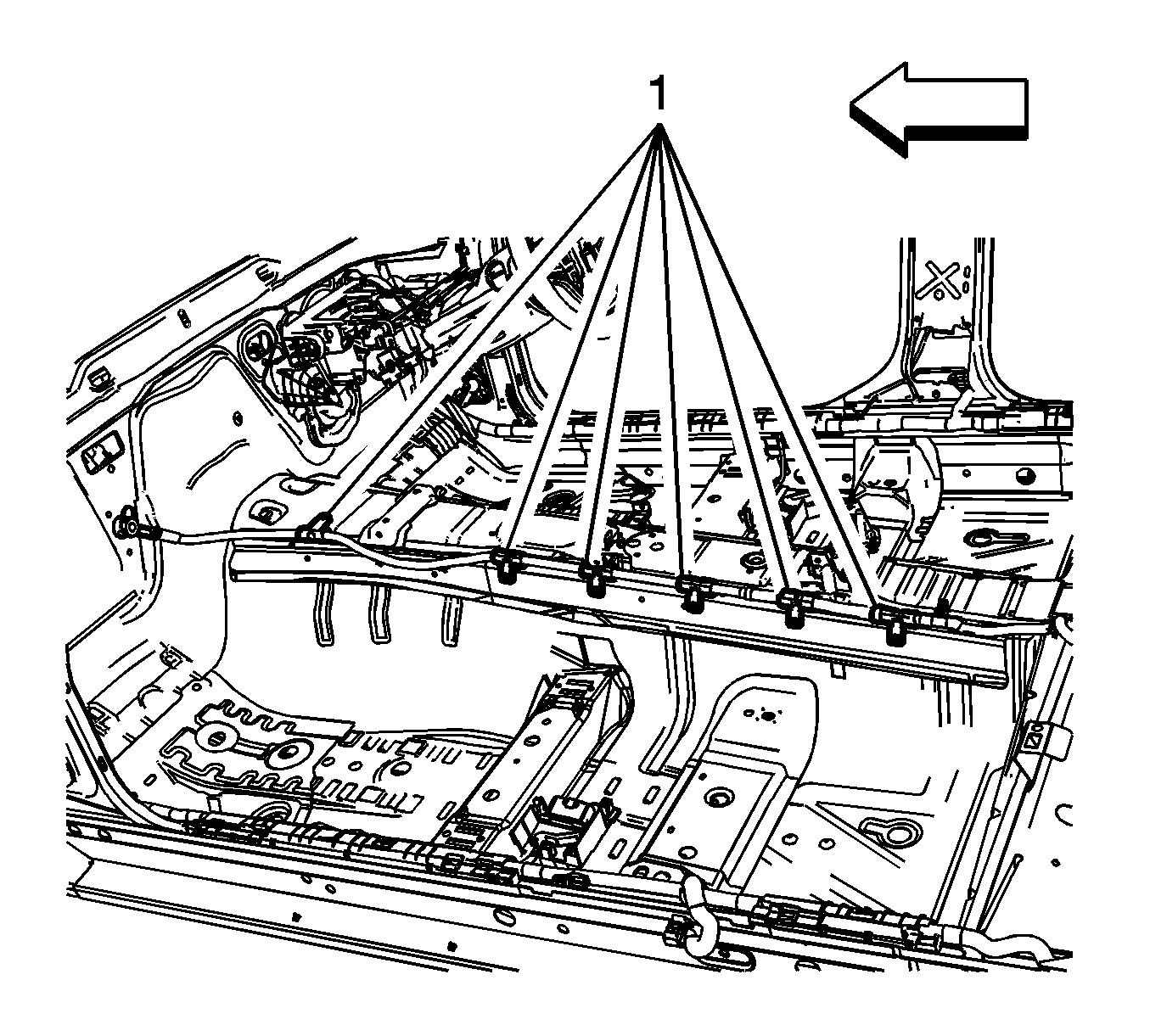

    3. Fig 2: Battery Positive Cable Retainers
    GM3226069Courtesy of GENERAL MOTORS COMPANY
  3. Install the battery positive cable retainers (1) to the floor panel tunnel.

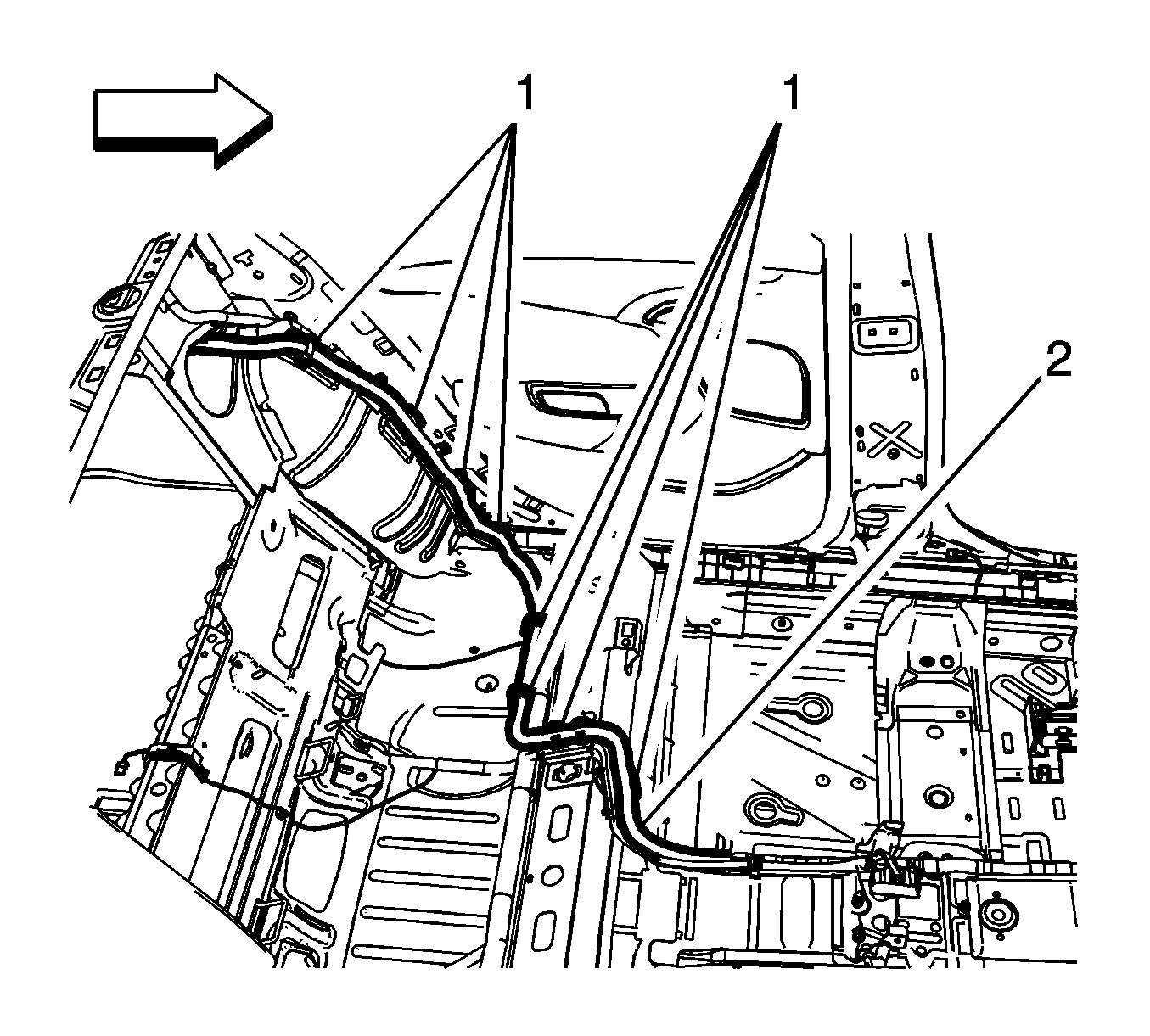

    4. Fig 3: Battery Positive Cable & Retainers
    GM3226072Courtesy of GENERAL MOTORS COMPANY
  4. Route the battery positive cable (2) along the body harness conduit and attach the battery positive cable retainers (1).

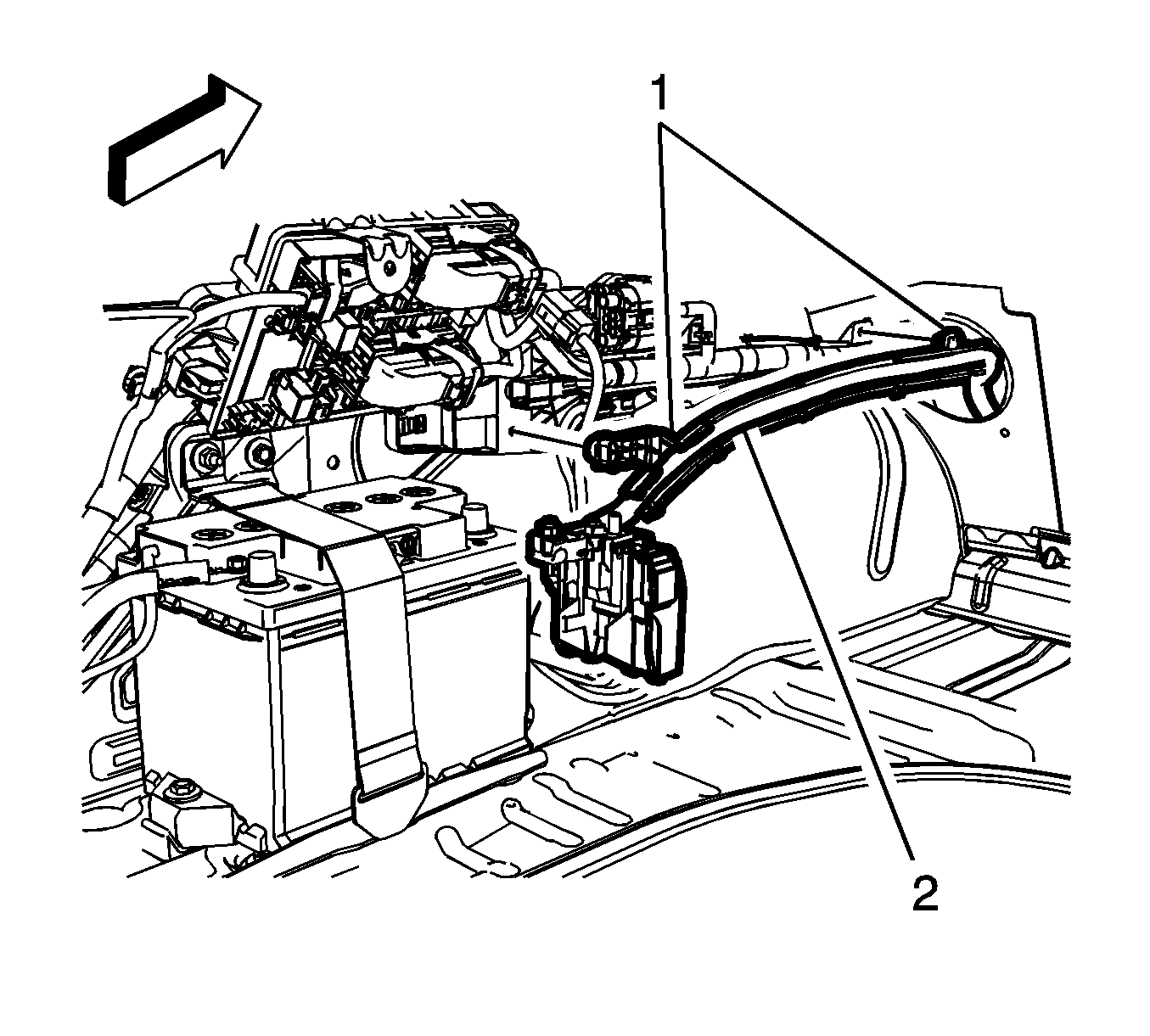

    5. Fig 4: Battery Positive Cable & Retainers
    GM3226086Courtesy of GENERAL MOTORS COMPANY
  5. Slide the battery positive cable (2) into the rear compartment area and attach the battery positive cable retainers (1) to the body harness conduit.

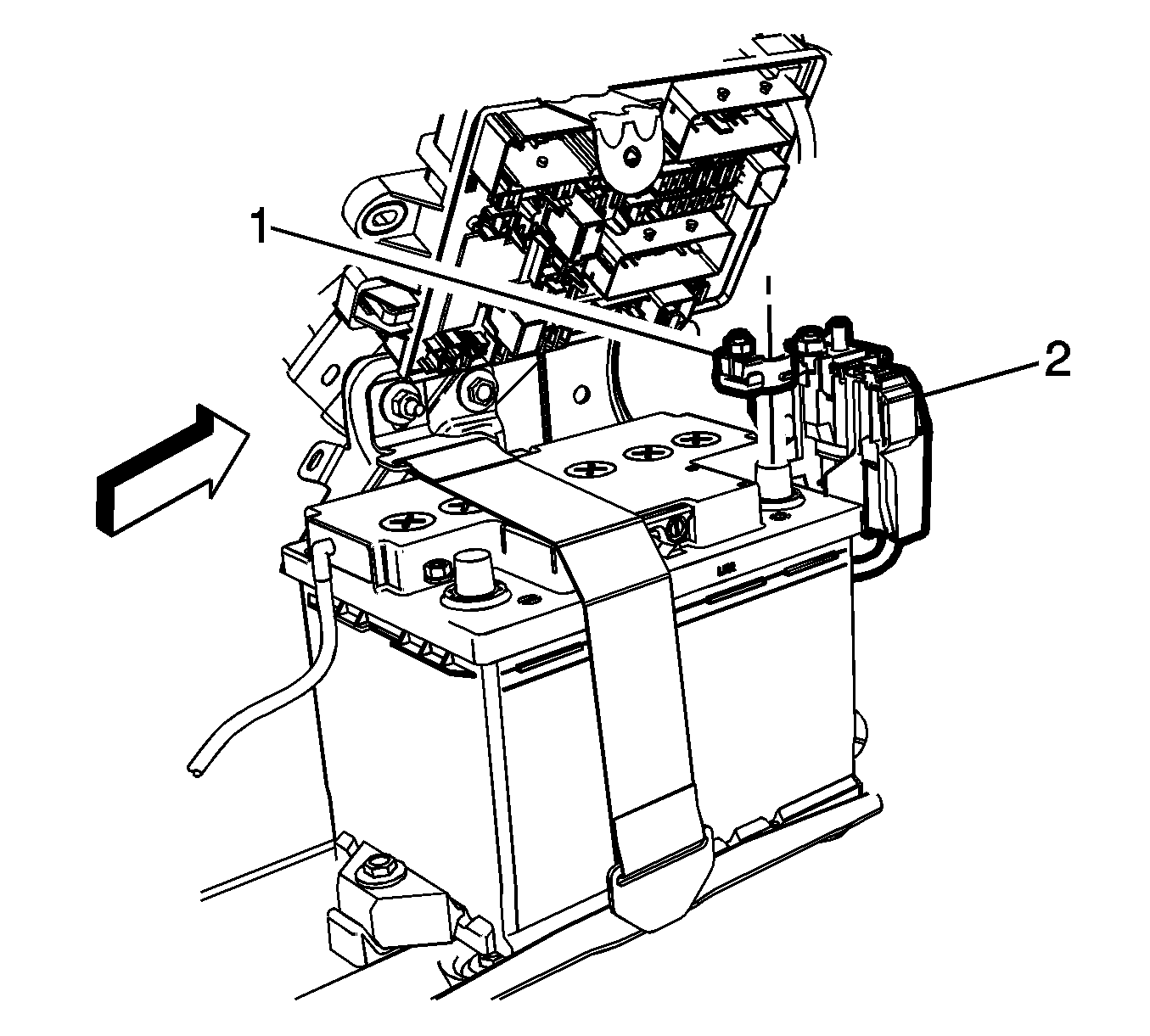

    6. Fig 5: Battery Positive Cable & Clamp
    GM3226087Courtesy of GENERAL MOTORS COMPANY
  6. Connect the battery positive cable (2) to the battery and tighten the clamp fastener (1) to 5 N.m (44 lb in).

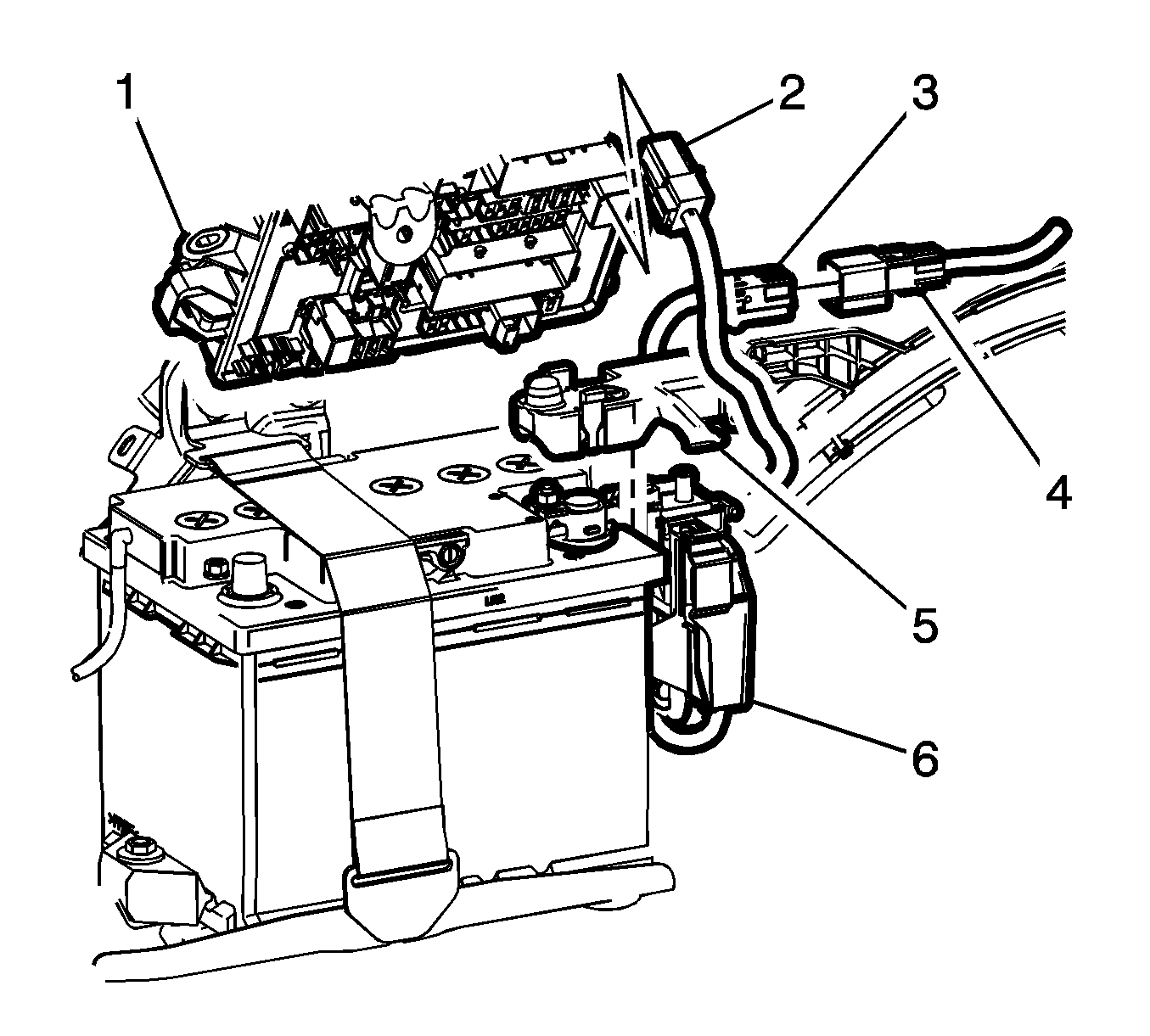

    7. Fig 6: Accessory Relay Block, Positive Cable & Body Harness Connectors
    GM3226089Courtesy of GENERAL MOTORS COMPANY
  7. Install the battery positive cable cover (5).
  8. Connect the battery positive cable connector (3) to the body harness connector (4).
  9. Connect the battery positive cable connector (2) to the accessory relay block (1).
  10. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  11. Install the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement (Left Side)Rear Compartment Side Trim Panel Replacement (Right Side) .
  12. Install the rear compartment floor panel carpet. Refer to Rear Compartment Floor Panel Carpet Replacement .
  13. Install the rear seat cushion. Refer to Rear Seat Back Cushion Removal and Installation (Split Folding Side Cushion Sedan)Rear Seat Back Cushion Removal and Installation (Split Folding Center Cushion Sedan)Rear Seat Back Cushion Removal and Installation (Fixed Back) .
  14. Install the passenger front seat. Refer to Driver or Passenger Seat Removal and Installation .
