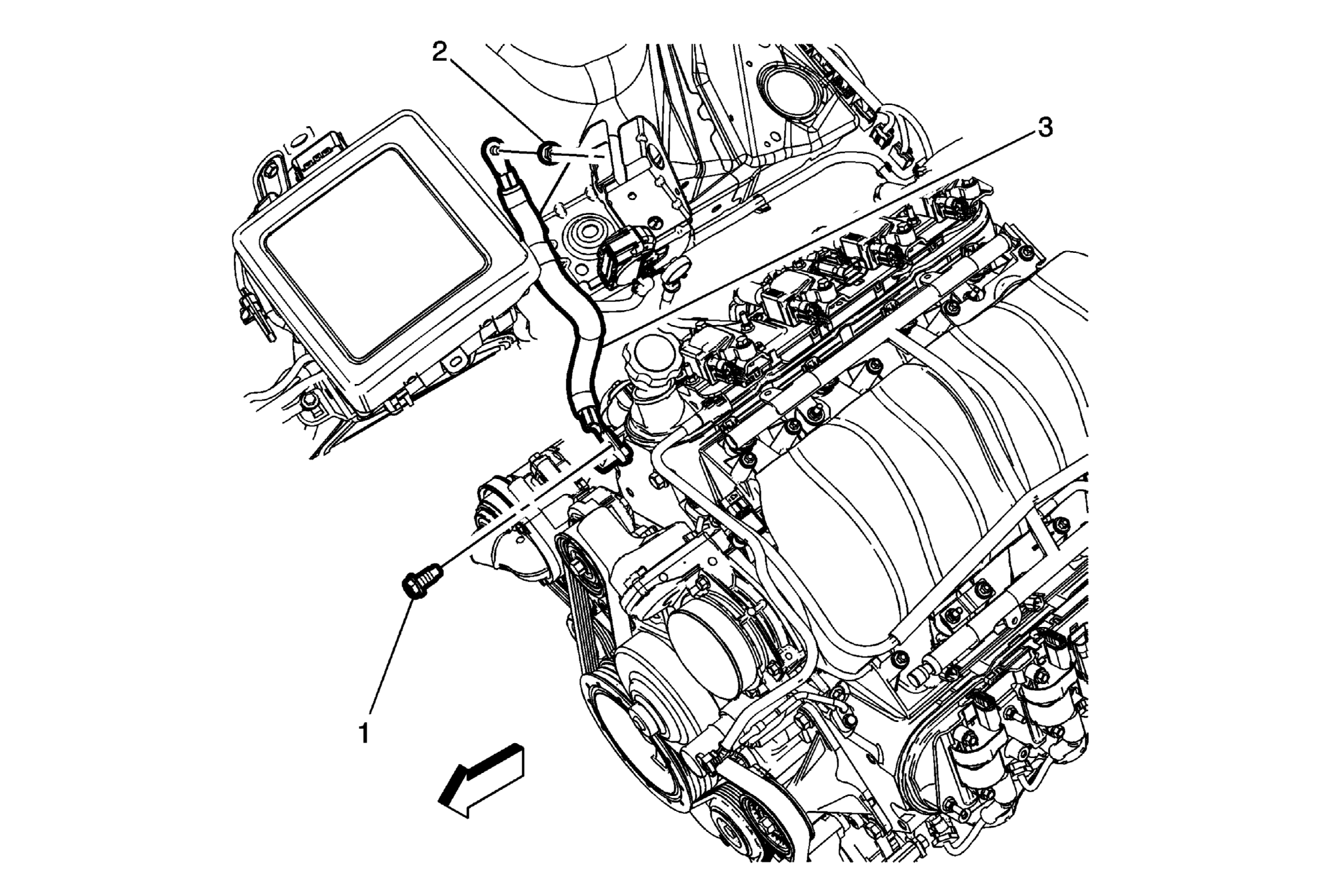

Engine Ground Cable Replacement (LS3)
| Callout | Component Name |
|---|---|
| 1 | Engine Ground Cable Fastener
CAUTION:
Refer to Fastener Caution . Tighten 25 (18 lb ft) |
| 2 | Engine Ground Cable Fastener Tighten 22 (16 lb ft) |
| 3 | Engine Ground Cable |
