Left Side of Engine Compartment Components

Left Side of Engine Compartment Components

Items
1: B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor
2: M75 Windshield Wiper Motor M75 Windshield Wiper Motor
3: B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
4: B5LF Wheel Speed Sensor - Left Front B5LF Wheel Speed Sensor - Left Front

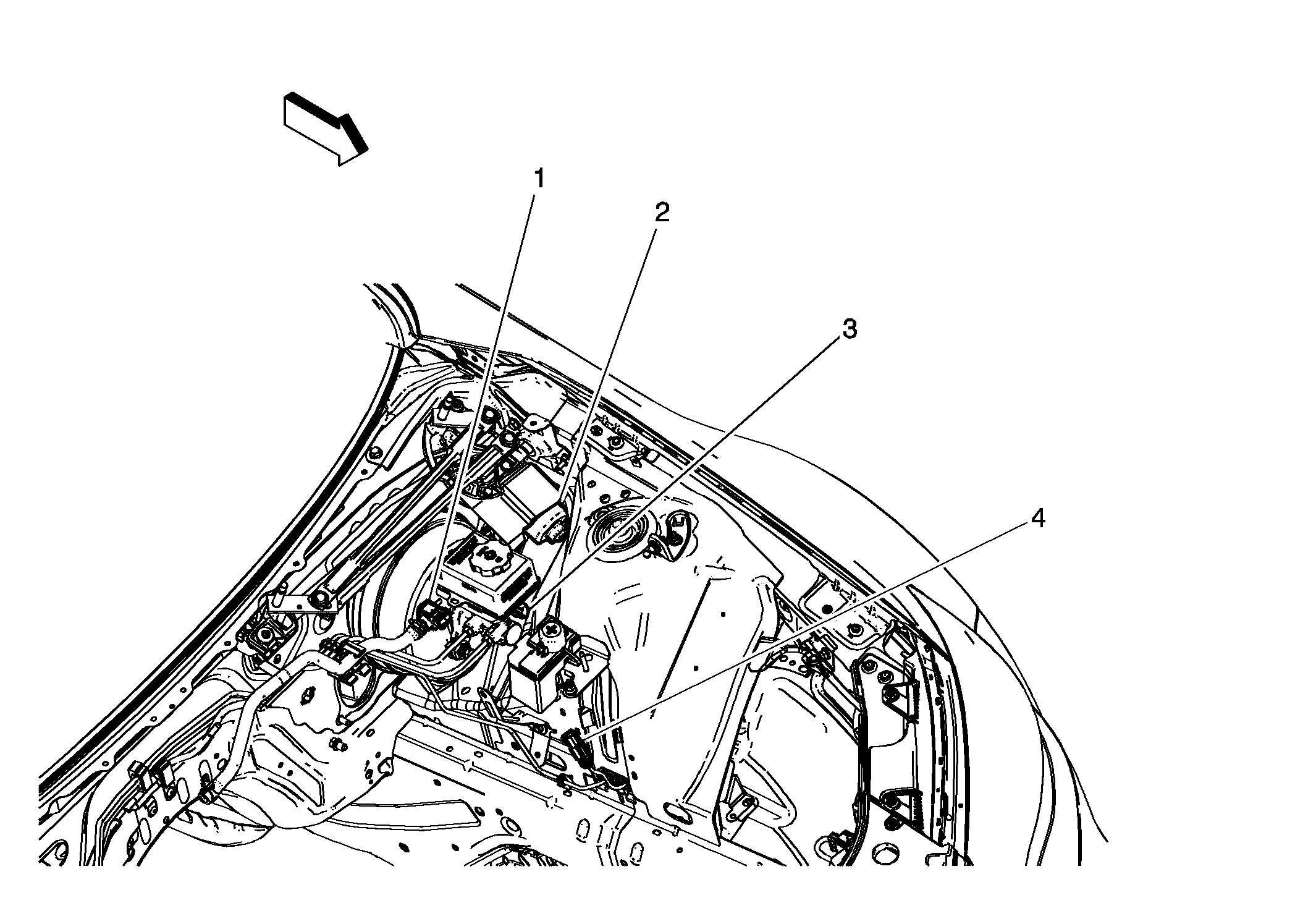

Fig 1: Left Side of Engine Compartment Components
GM3600186Courtesy of GENERAL MOTORS COMPANY
