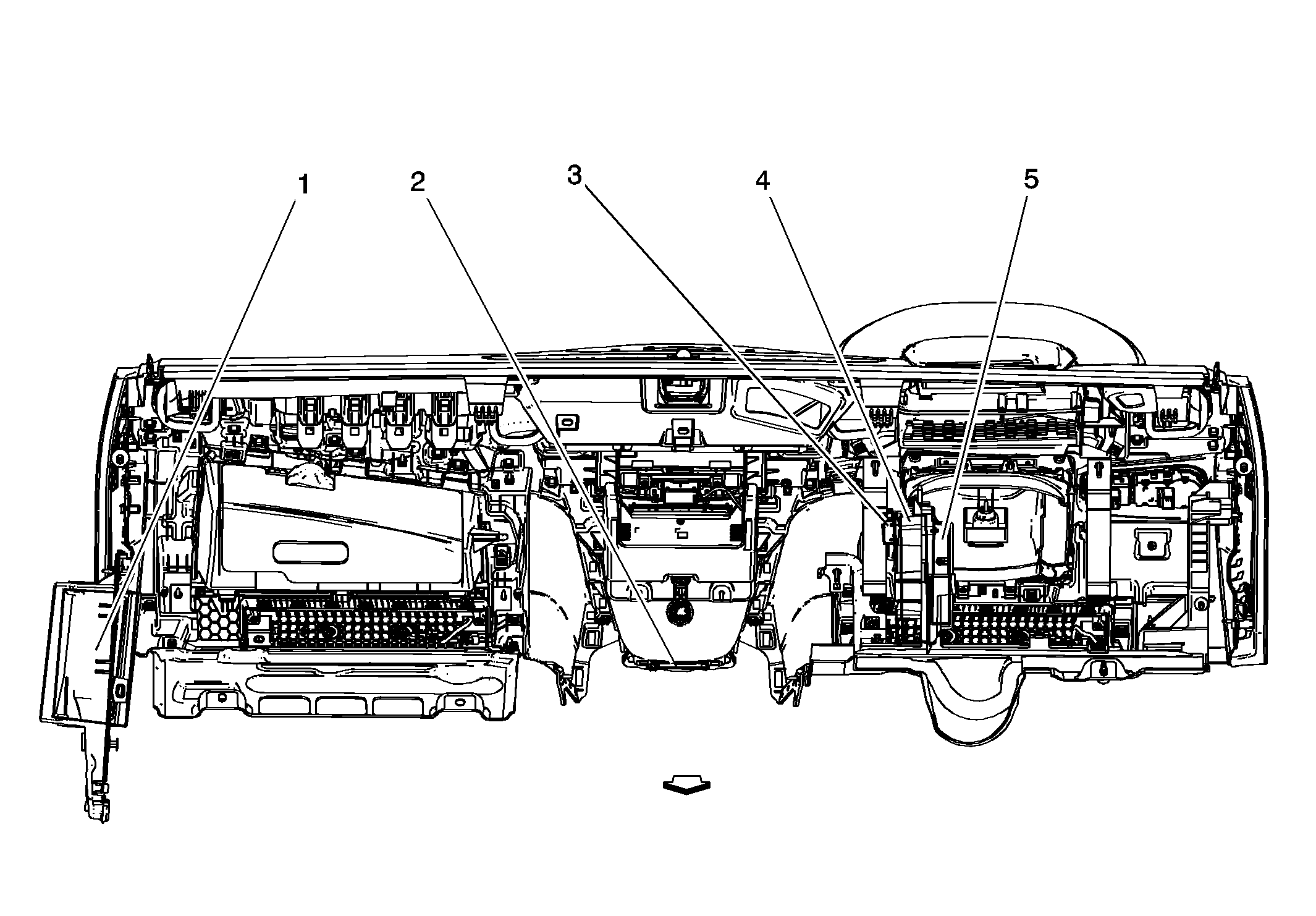

Rear of Instrument Panel Components
Rear of Instrument Panel Components
| Items |
|---|
| 1: K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3 |
| 2: T10J Keyless Entry Antenna - Center Console Front T10J Keyless Entry Antenna - Center Console Front |
| 3: T15 Navigation Antenna Signal Splitter T15 Navigation Antenna Signal Splitter X1T15 Navigation Antenna Signal Splitter X2T15 Navigation Antenna Signal Splitter X3 |
| 4: K73 Telematics Communication Interface Control Module K73 Telematics Communication Interface Control Module X1K73 Telematics Communication Interface Control Module X2K73 Telematics Communication Interface Control Module X5K73 Telematics Communication Interface Control Module X7 |
| 5: C3 Telematics Communication Interface Control Module Battery C3 Telematics Communication Interface Control Module Battery |
