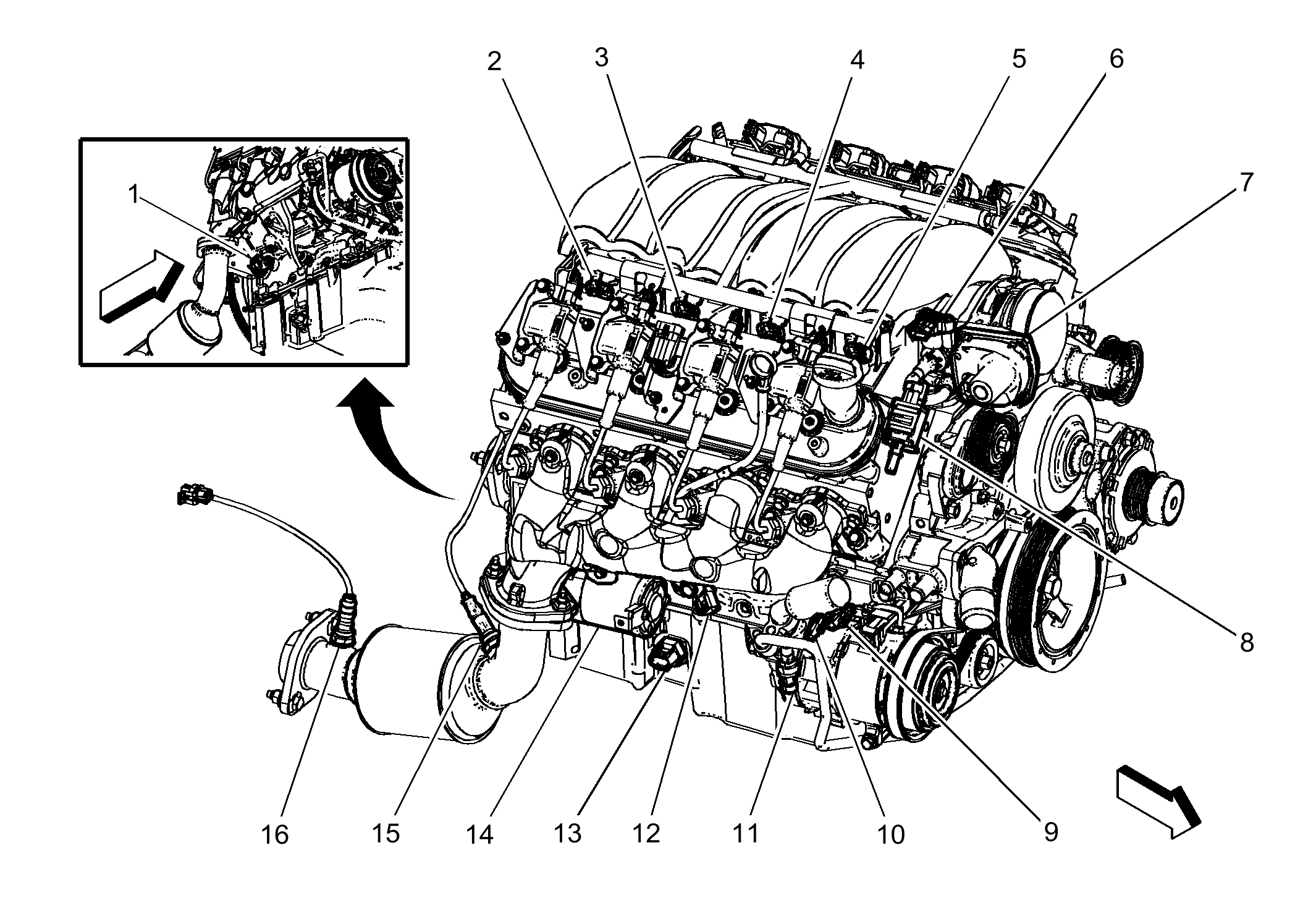

Right Front of Engine Components
Right Front of Engine Components
| Items |
|---|
| 1: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor |
| 2: Q17H Fuel Injector 8 Q17H Fuel Injector 8 |
| 3: Q17F Fuel Injector 6 Q17F Fuel Injector 6 |
| 4: Q17D Fuel Injector 4 Q17D Fuel Injector 4 |
| 5: Q17B Fuel Injector 2 Q17B Fuel Injector 2 |
| 6: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 7: Q38 Throttle Body Q38 Throttle Body |
| 8: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 9: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
| 10: G1 A/C Compressor G1 A/C Compressor |
| 11: B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor |
| 12: B68B Knock Sensor 2 |
| 13: B35C Engine Oil Level and Temperature Sensor B35C Engine Oil Level and Temperature Sensor |
| 14: M64 Starter Motor M64 Starter Motor X1 |
| 15: B52E Heated Oxygen Sensor - Bank 2 Sensor 1 B52E Heated Oxygen Sensor - Bank 2 Sensor 1 |
| 16: B52F Heated Oxygen Sensor - Bank 2 Sensor 2 B52F Heated Oxygen Sensor - Bank 2 Sensor 2 |
