Head-Up Display Replacement

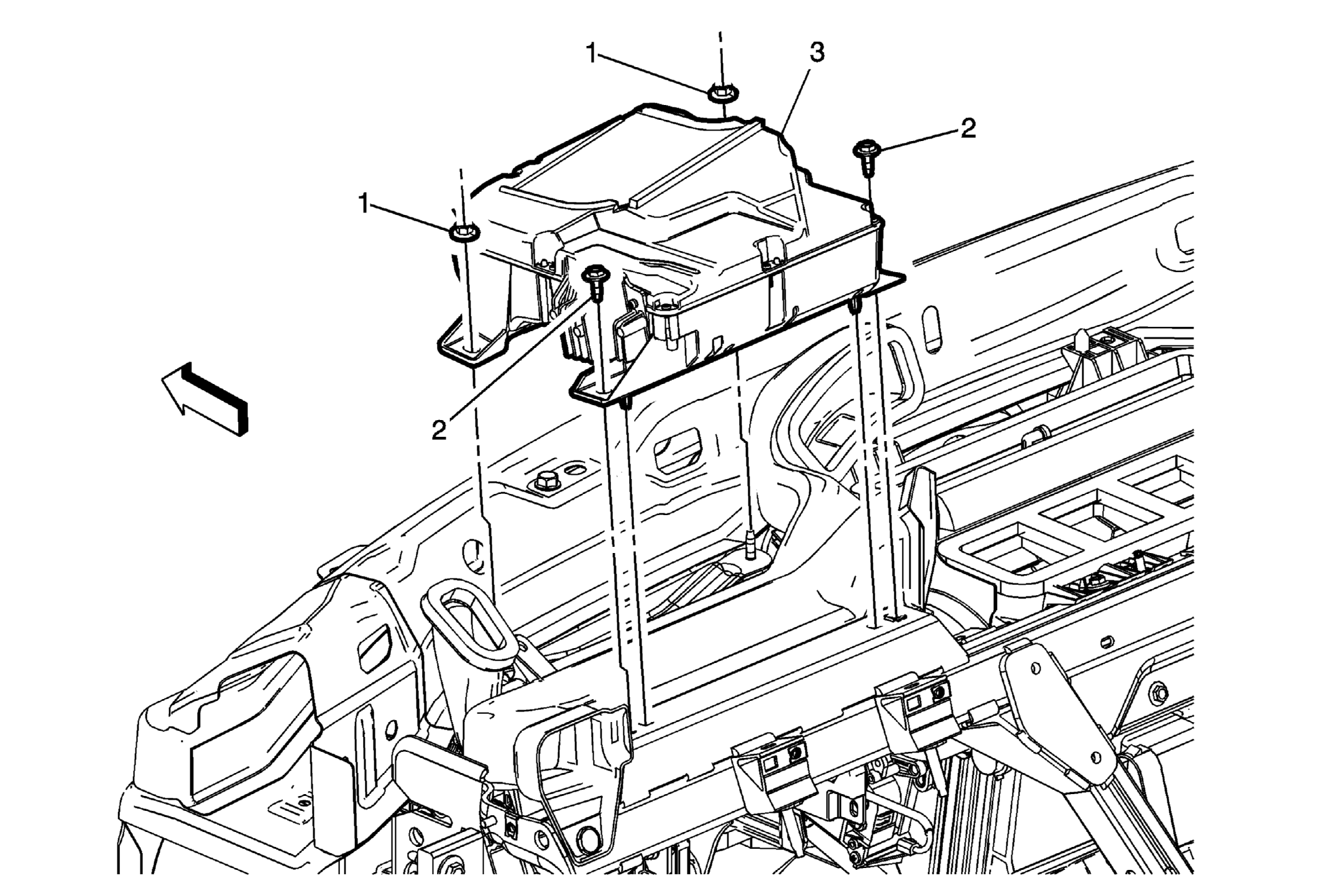

Fig 1: Head-Up Display

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
1	Head-Up Display Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Head-Up Display Bolt (Qty: 2) Tighten 5 N.m (44 lb in)
3	Head-Up Display Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up information.
