Instrument Cluster Replacement

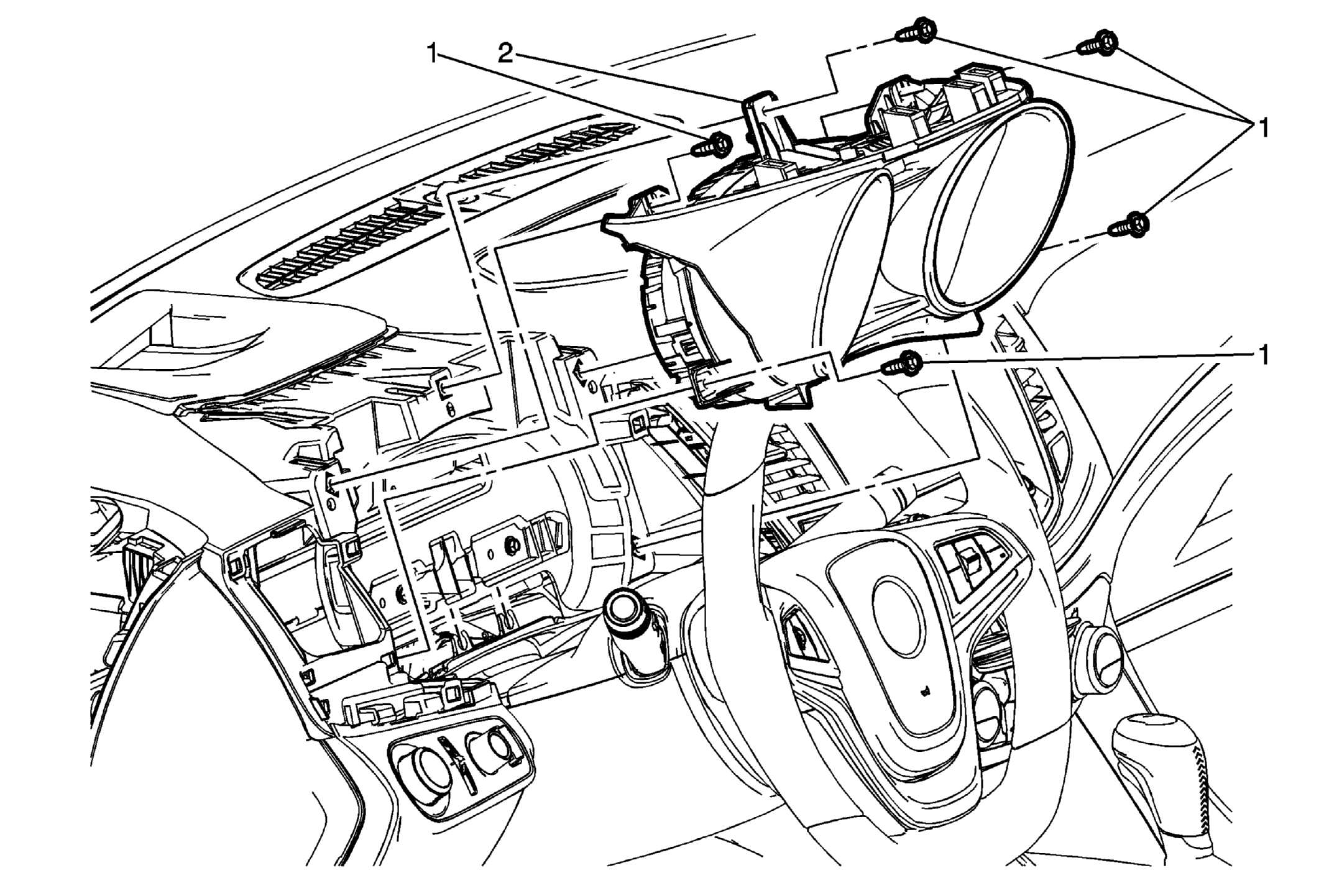

Fig 1: Instrument Cluster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Upper Trim Panel Replacement - Left Side Instrument Panel Center Trim Pad Replacement Instrument Panel Instrument Cluster Hood Replacement
1	Instrument Cluster Bolt (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Cluster Procedure Use a plastic trim tool if necessary. Disconnect the electrical connector. Perform the necessary programming and setup procedure: Control Module References NOTE: Select the TIS2Web procedure "Prepare Control Module for Removal" prior to removing the IPC from the vehicle.

Callout

Component Name

Preliminary Procedure

Instrument Cluster Bolt (Qty: 5)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Cluster

Procedure

Use a plastic trim tool if necessary.
Disconnect the electrical connector.
Perform the necessary programming and setup procedure: Control Module References

NOTE:

Select the TIS2Web procedure "Prepare Control Module for Removal" prior to removing the IPC from the vehicle.
