Air Cleaner Outlet Resonator Replacement

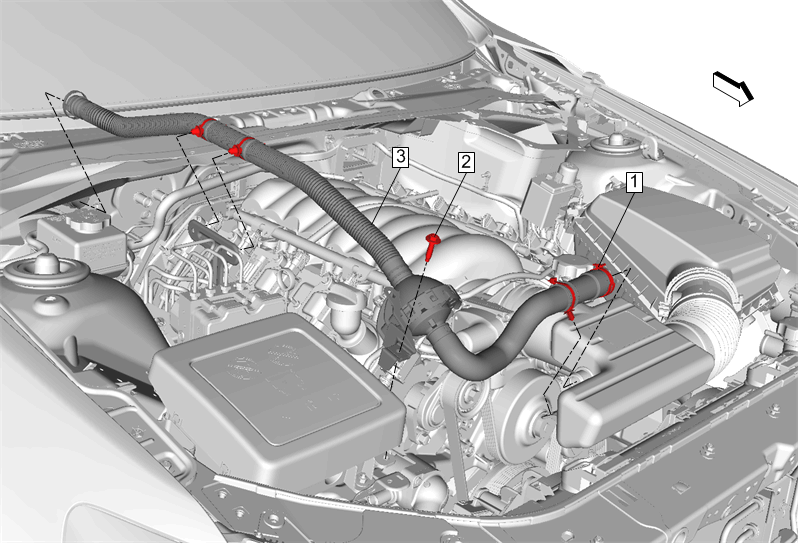

| Callout | Component Name |
|---|---|
| 1 | Air Cleaner Outlet Resonator Clamp Procedure Hose Clamp Replacement Guidelines - Spring Type |
| 2 | Air Cleaner Outlet Resonator Bolt
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 3 | Air Cleaner Outlet Resonator Procedure Disconnect the quick connect fitting an remove from retainers. Plastic Collar Quick Connect Fitting Service |
