Module Power, Ground, Serial Data, and Subsystem References (1 of 4)

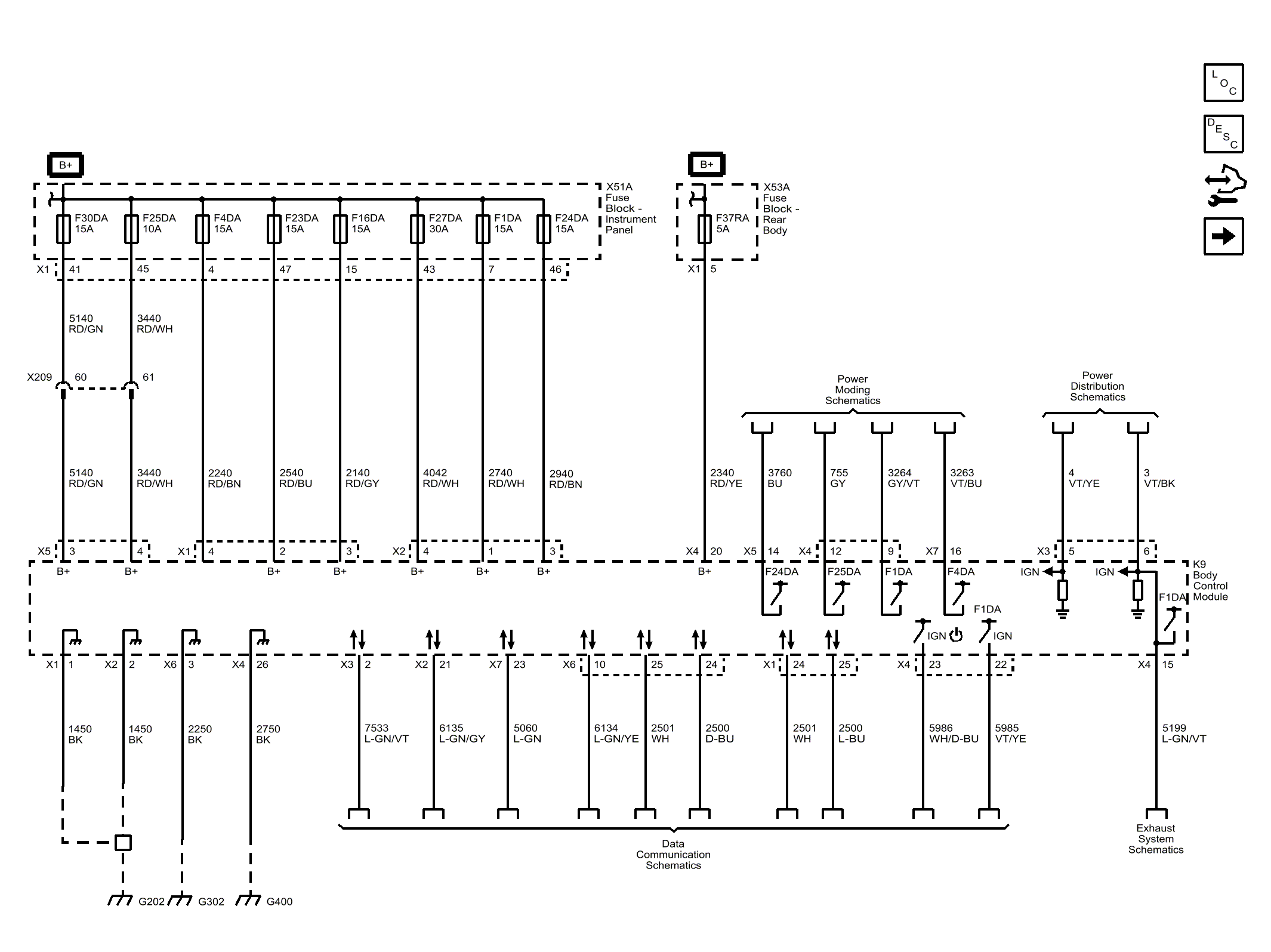

Fig 1: Module Power, Ground, Serial Data, and Subsystem References (1 of 4)
Courtesy of GENERAL MOTORS COMPANY
