Subsystem References (4 of 4)

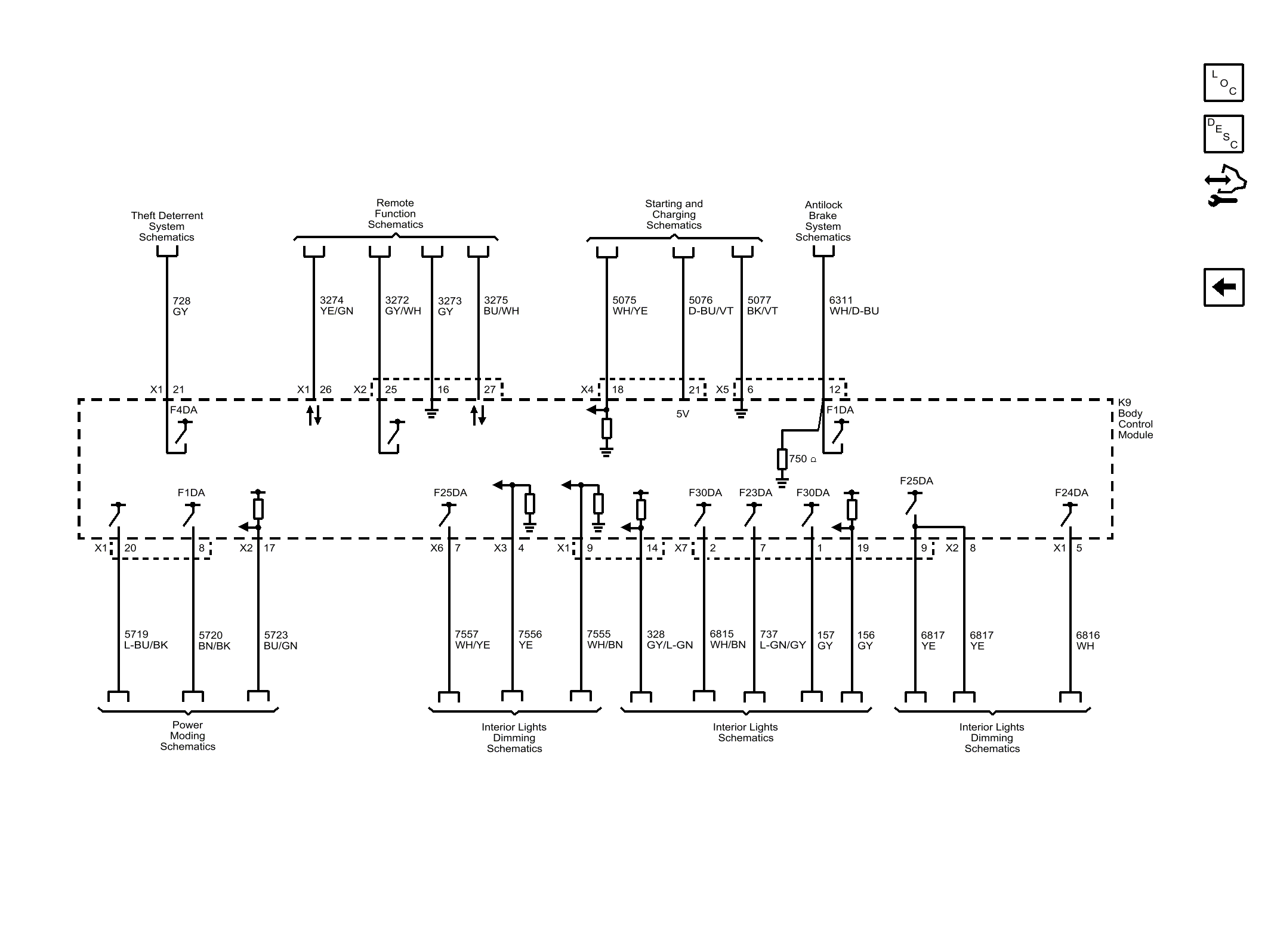

Fig 1: Subsystem References (4 of 4)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
