Linear Interconnect Network (LIN) Bus 6 and 9

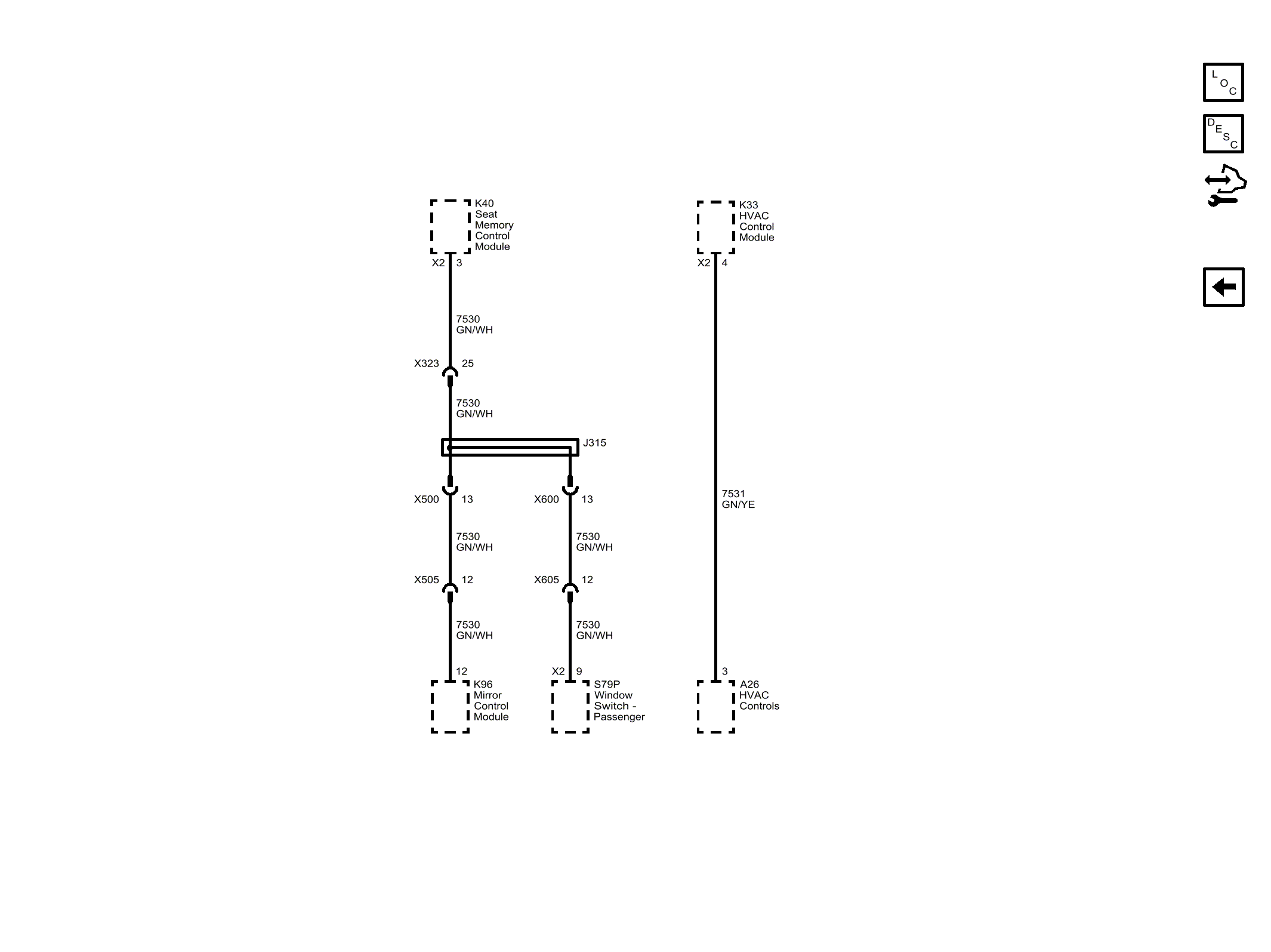

Fig 1: Linear Interconnect Network (LIN) Bus 6 and 9
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
