Front Seat Belt Guide Adjuster Replacement

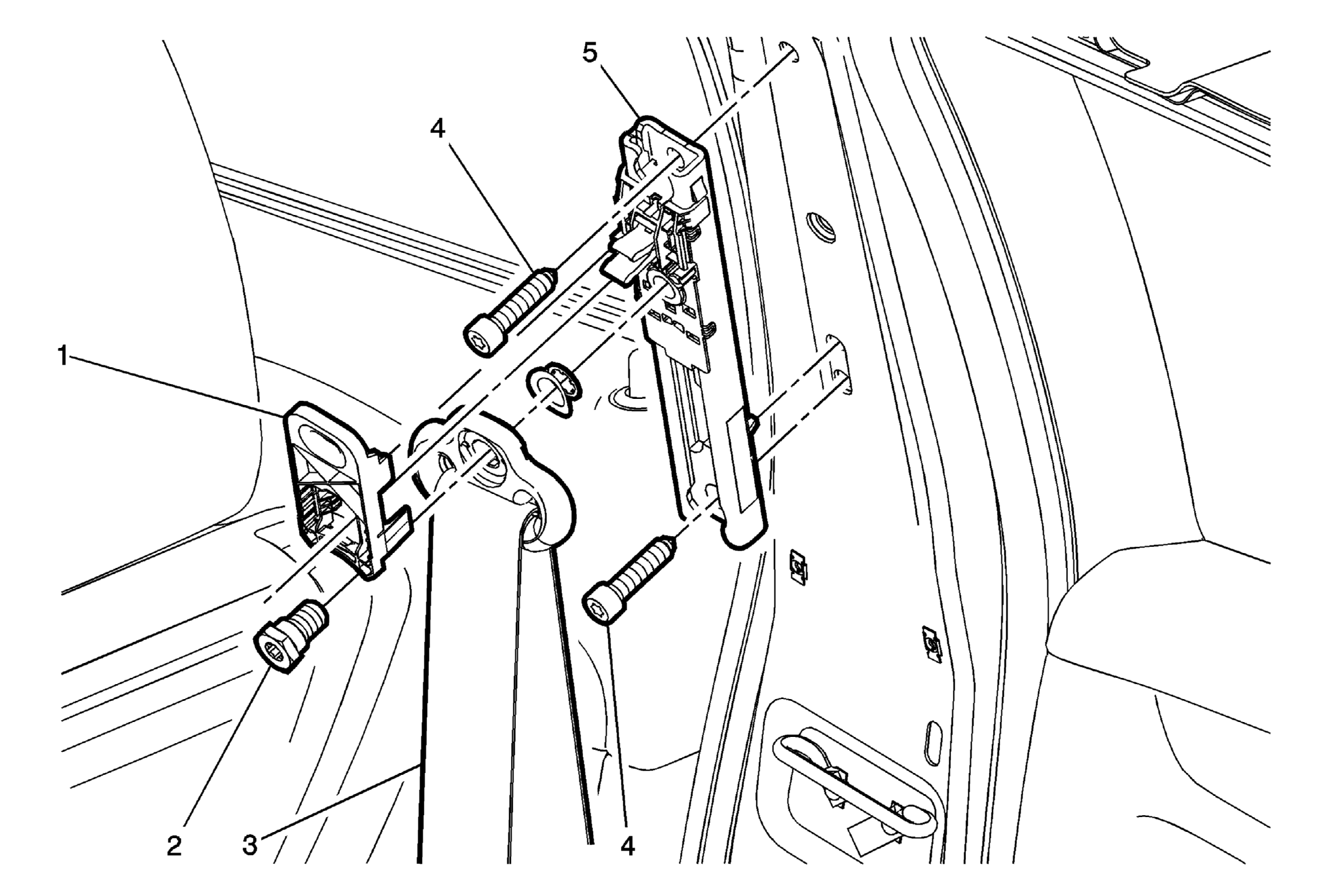

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement |
|
| 1 | Front Seat Belt Guide Adjuster Cover |
| 2 | Front Seat Belt Retractor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 3 | Front Seat Belt |
| 4 | Front Seat Belt Guide Adjuster Fastener (Qty: 2) Tighten 45 N.m (33 lb ft) |
| 5 | Front Seat Belt Guide Adjuster |
