Rear Seat Belt Retractor Replacement

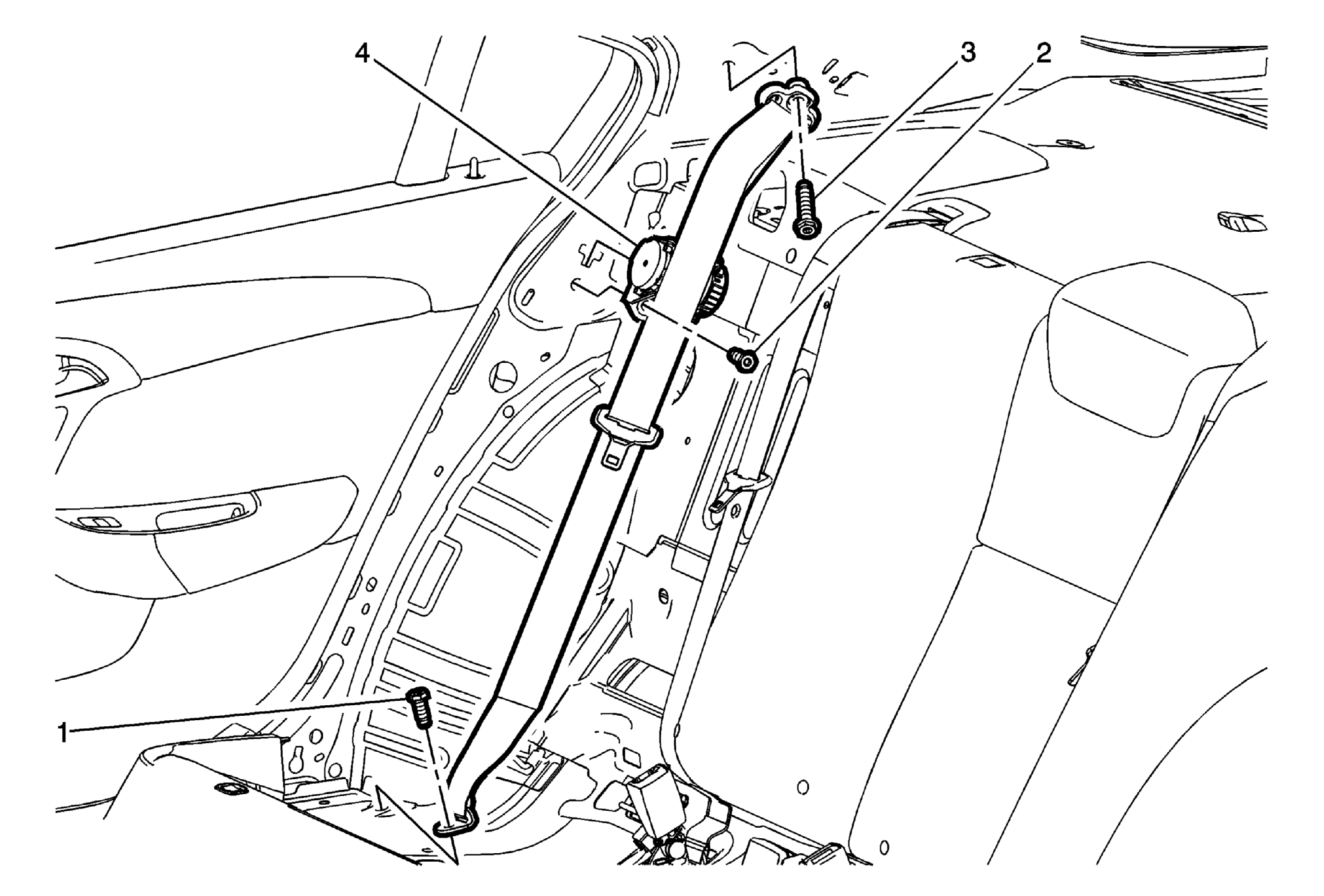

Fig 1: Rear Seat Belt Retractor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation . Remove the window quarter trim finish panel. Refer to Quarter Window Trim Finish Panel Replacement .
1	Rear Seat Belt Retractor Anchor Plate Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Belt Retractor Bolt (lower) Tighten 45 N.m (33 lb ft)
3	Rear Seat Belt Retractor Bolt (upper) Tighten 45 N.m (33 lb ft)
4	Rear Seat Belt Retractor
