Steering Linkage Outer Tie Rod Replacement

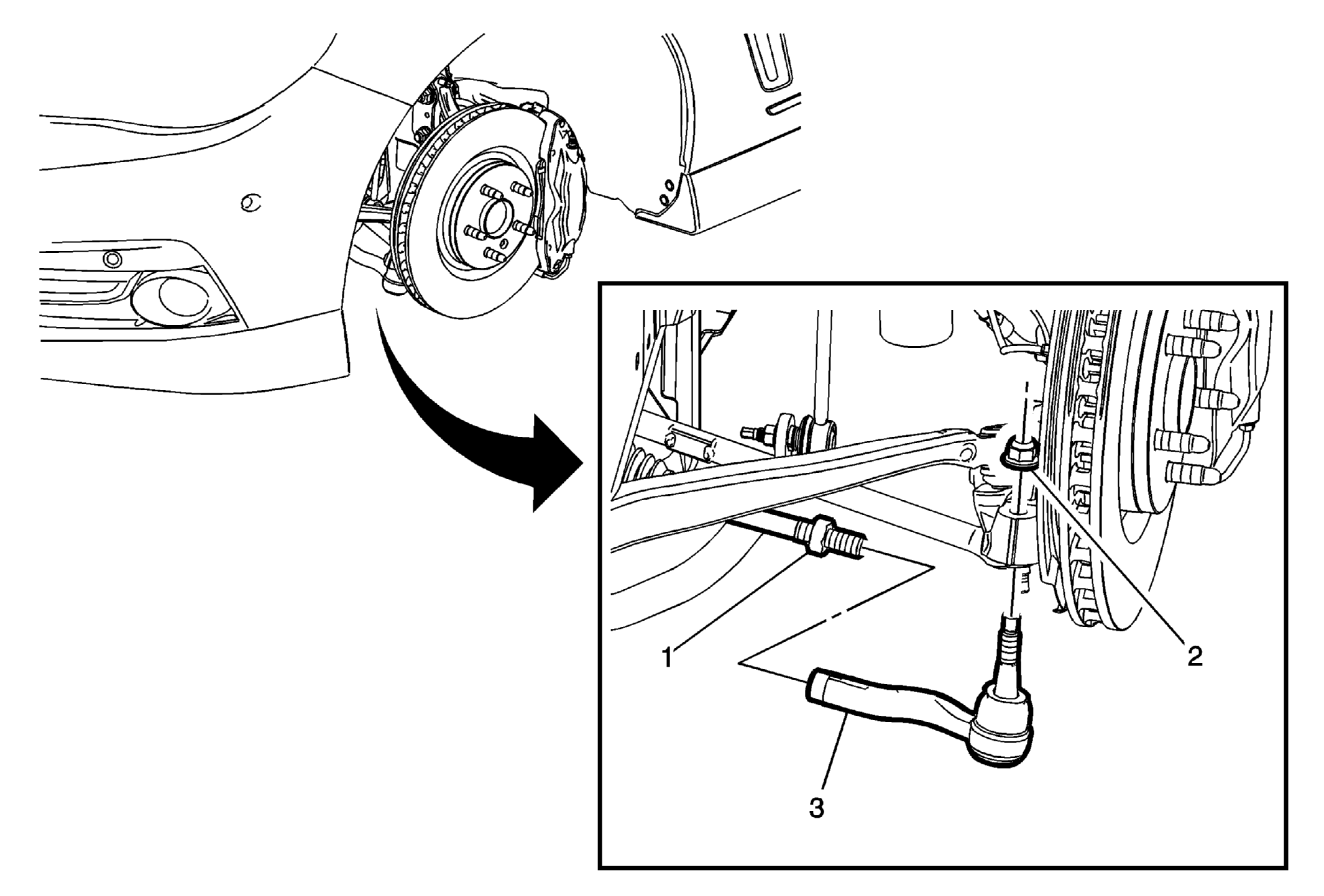

Fig 1: Steering Linkage Outer Tie Rod

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
1	Steering Linkage Inner Tie Rod Nut Procedure Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod. NOTE: Do NOT tighten the steering linkage inner tie rod nut during installation. Tighten the nut after adjusting the front toe.
2	Steering Linkage Outer Tie Rod Nut CAUTION: Refer to Fastener Caution . CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. Procedure Remove and DISCARD the steering linkage outer tie rod nut. Tighten First Pass: 25 N.m (18 lb ft) Final Pass: (115 - 125 degrees)
3	Steering Linkage Outer Tie Rod CAUTION: Do not free the ball stud by using a pickle fork or a wedge-type tool. Damage to the seal or bushing may result. Procedure Use the CH-42188 - B separator to separate the steering linkage outer tie rod from the steering knuckle. Clean the tapered surface of the steering knuckle. Inspect the steering linkage inner tie rod for bent or damaged threads.If necessary, replace the steering linkage inner tie rod. Steering Linkage Inner Tie Rod Replacement Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment Special Tools CH-42188 - B Ball Joint Separator Equivalent regional tools:Special Tools
