Preliminary Procedure
- Remove the Rear Compartment Side Trim - Right Side. Rear Compartment Side Trim Panel Replacement (Left Side)Rear Compartment Side Trim Panel Replacement (Right Side)
.
|
| 1 |

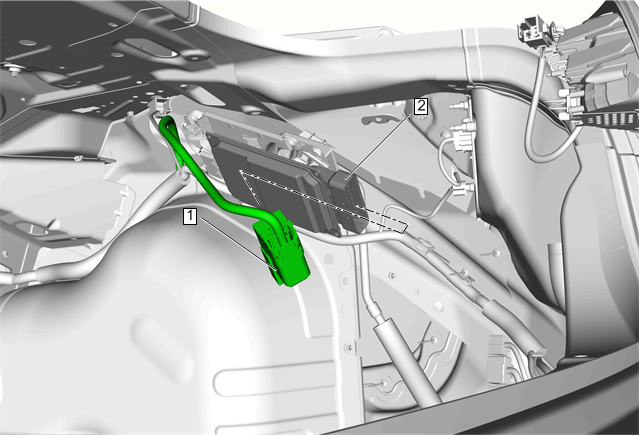

Electronic Suspension Control Module Connector
Procedure
Disconnect the electrical connector. |
| 2 |
Electronic Suspension Control Module Procedure
- Remove the control module from the mounting bracket by sliding forward and pulling away from bracket.
- Program the new Electronic Suspension Control Module. Suspension Control Module Programming and Setup
|
