Shift Lock Control

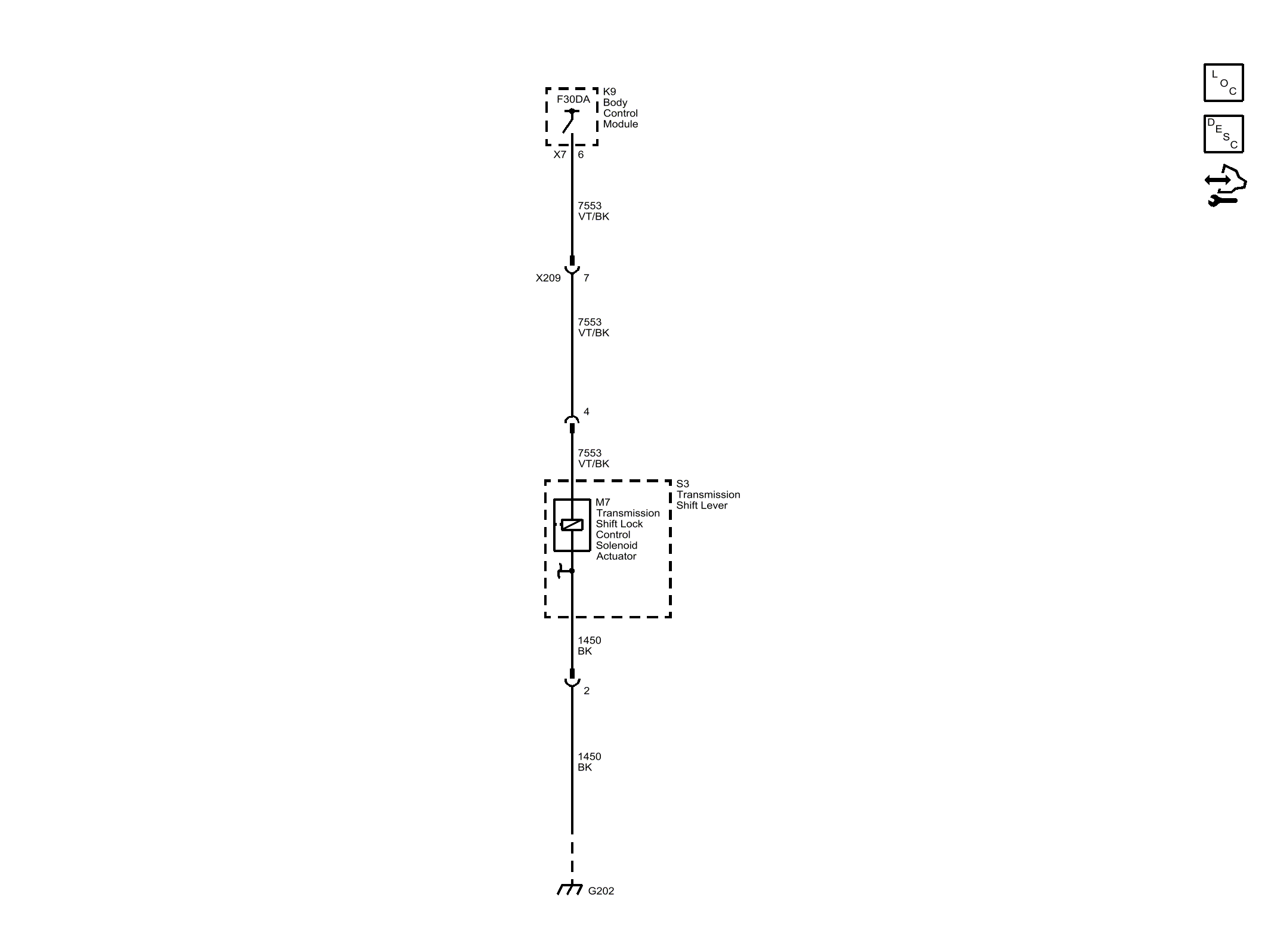

Fig 1: Shift Lock Control
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
