Keyless Entry Control Module Replacement

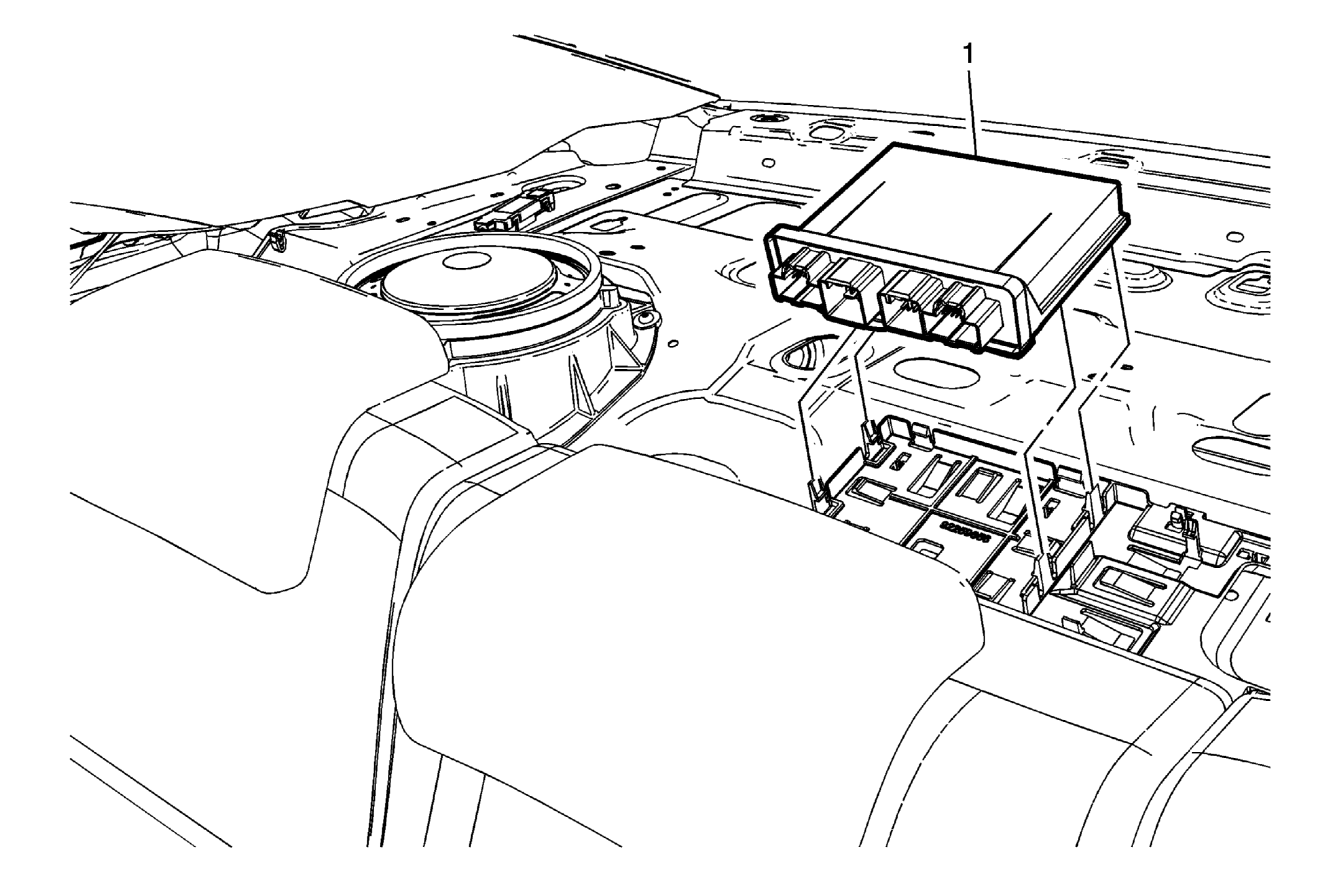

Fig 1: Keyless Entry Control Module
GM3285073Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear window trim panel. Refer to Rear Window Panel Trim Replacement .
1 Keyless Entry Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. Release module from retaining tabs on bracket.
  3. For programming and set up information, refer to Control Module References .
