Outside Rearview Mirror Replacement

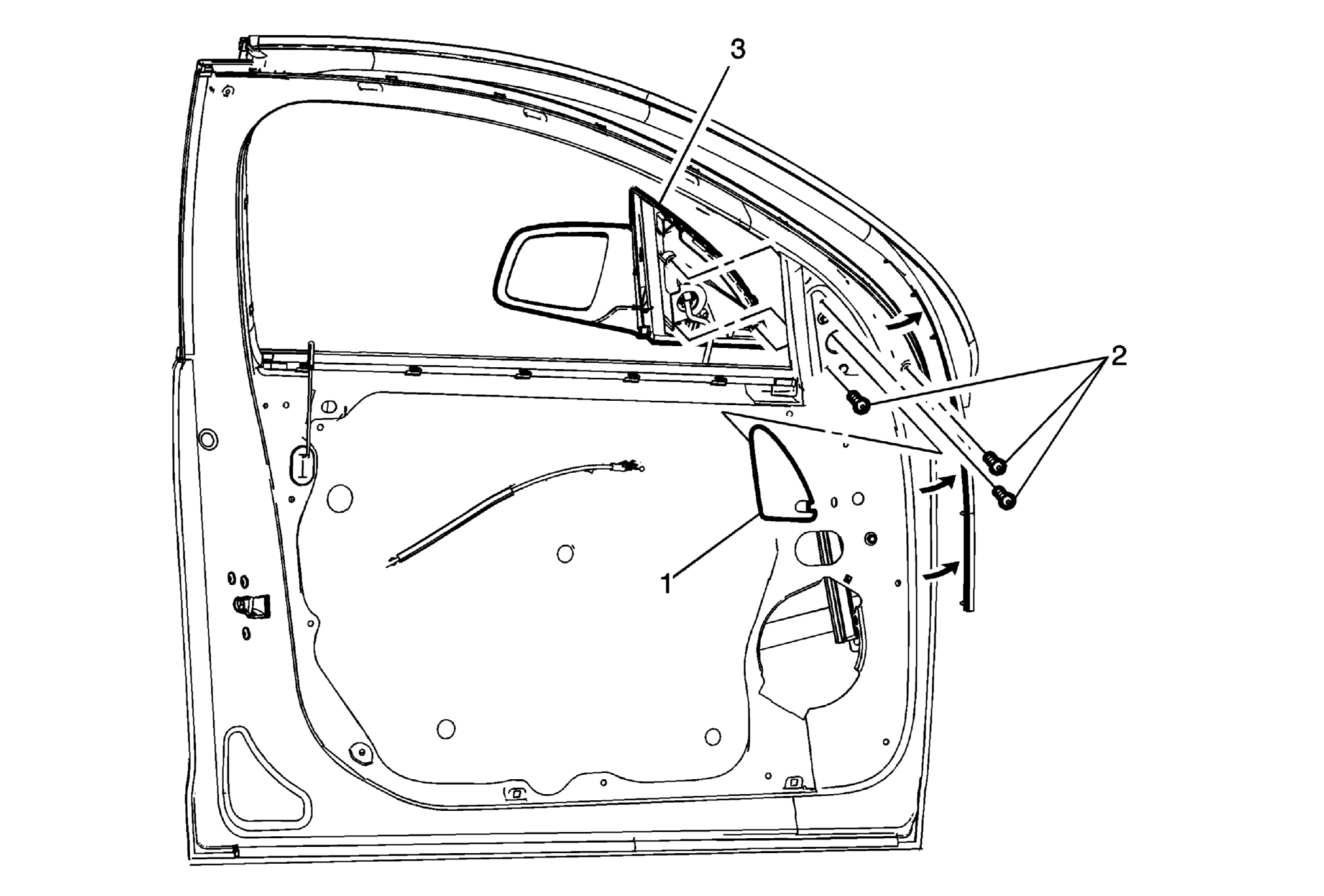

Fig 1: Outside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door front trim. Refer to Front Side Door Trim Replacement . Remove the outside rearview mirror opening applique. Refer to Outside Rearview Mirror Opening Applique Replacement . Remove only the leading front edge of the front side door upper auxiliary weatherstrip to expose the mirror screw. Refer to Front or Rear Side Door Upper Auxiliary Weatherstrip Replacement (Front)Front or Rear Side Door Upper Auxiliary Weatherstrip Replacement (Rear) .
1	Outside Rearview Mirror Opening Applique Seal
2	Outside Rearview Mirror Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 2.5 N.m (22 lb in)
3	Outside Rearview Mirror Procedure Inspect the outside mirror for proper operation before installing the door trim.
