Ignition Lock Key Transmitter Antenna Replacement - Rear Compartment

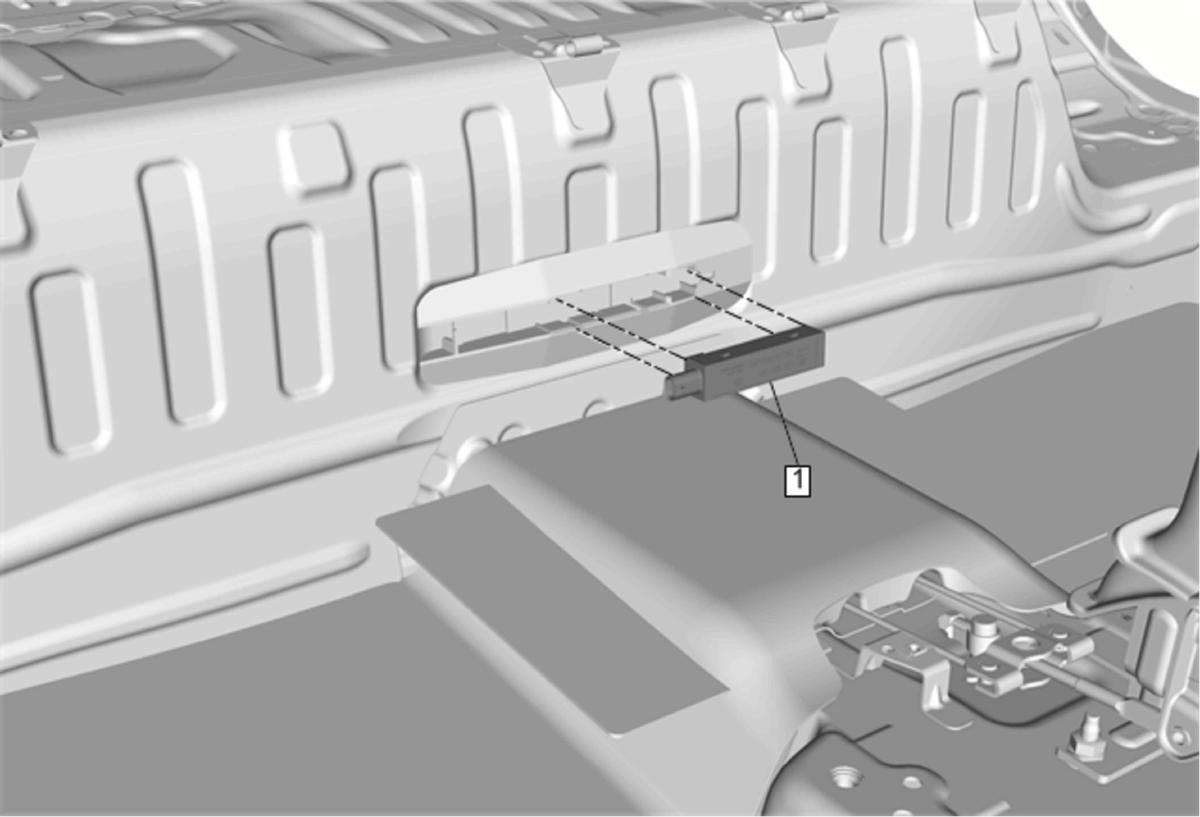

Fig 1: Ignition Lock Key Transmitter Antenna - Rear Compartment

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove front panel carpet. Refer to Floor Panel Carpet Replacement .
1	Ignition Lock Key Transmitter Antenna Procedure  Disconnect the electrical connector.
