Shift Lock (MR8)

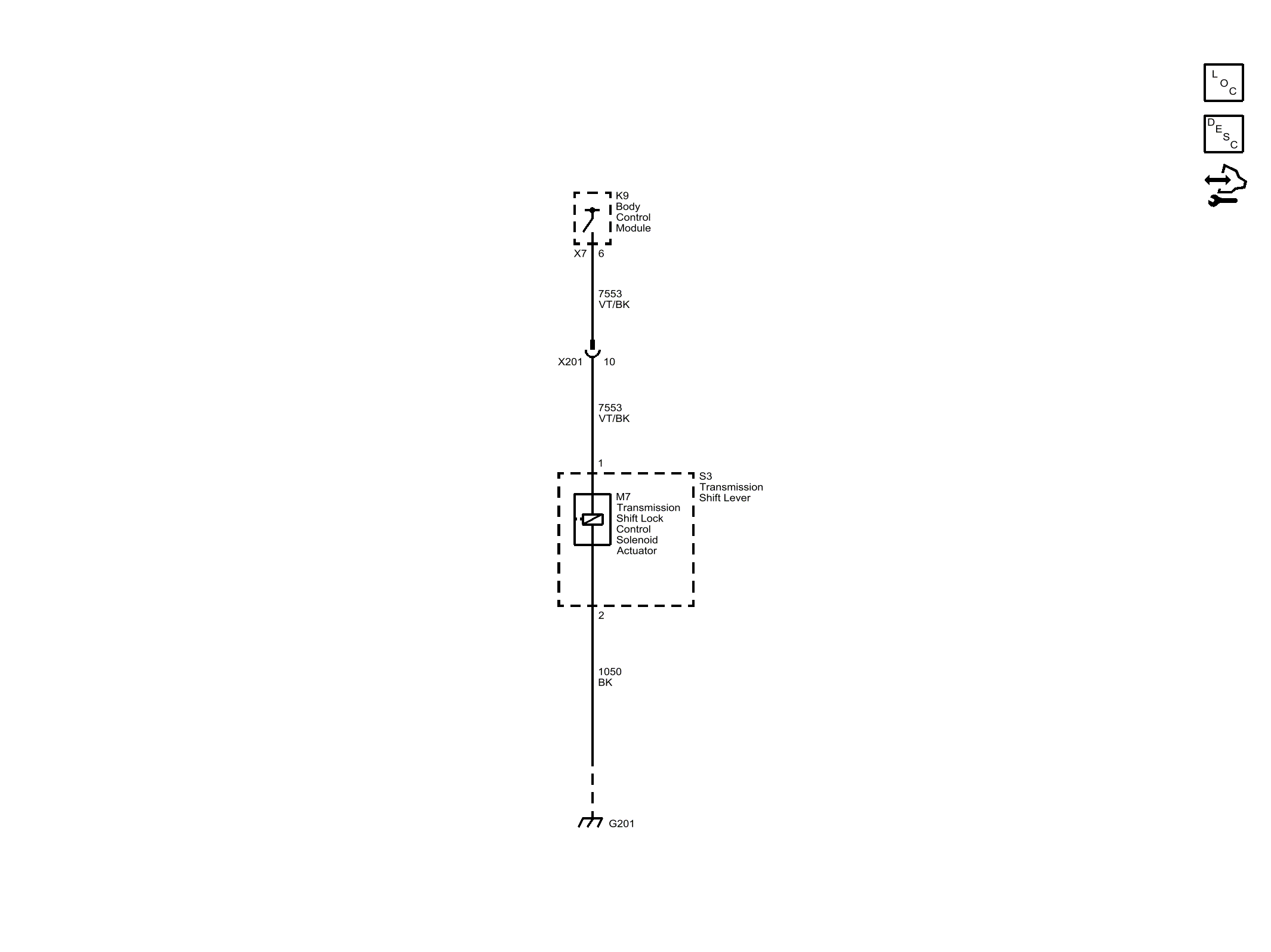

Fig 1: Shift Lock (MR8)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
