Communication Interface Module Replacement

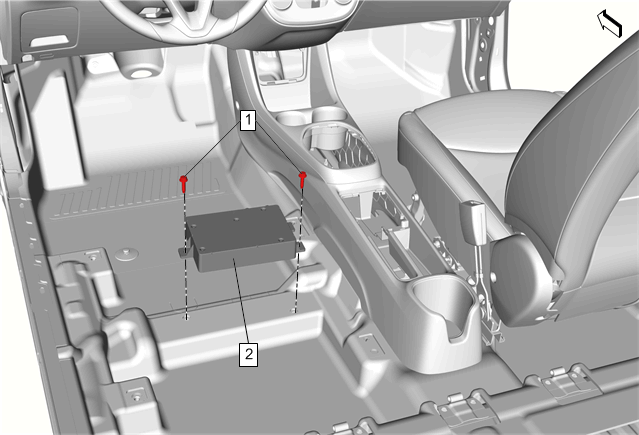

Fig 1: Communication Interface Module

GM4045899

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

WARNING:

Refer to Battery Disconnect Warning .

Preliminary Procedures

Disconnect the battery negative cable.
Remove driver front seat. Refer to Driver or Passenger Seat Removal and Installation .

1

Communication Interface Module Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
5.5 N.m (49 lb in)

2

Communication Interface Module

Procedure

Disconnect the electrical connector.
For programming and set up procedures, refer to Telematics Communication Interface Control Module Programming and Setup .
