Ignition Lock Key Transmitter Antenna Bracket Replacement

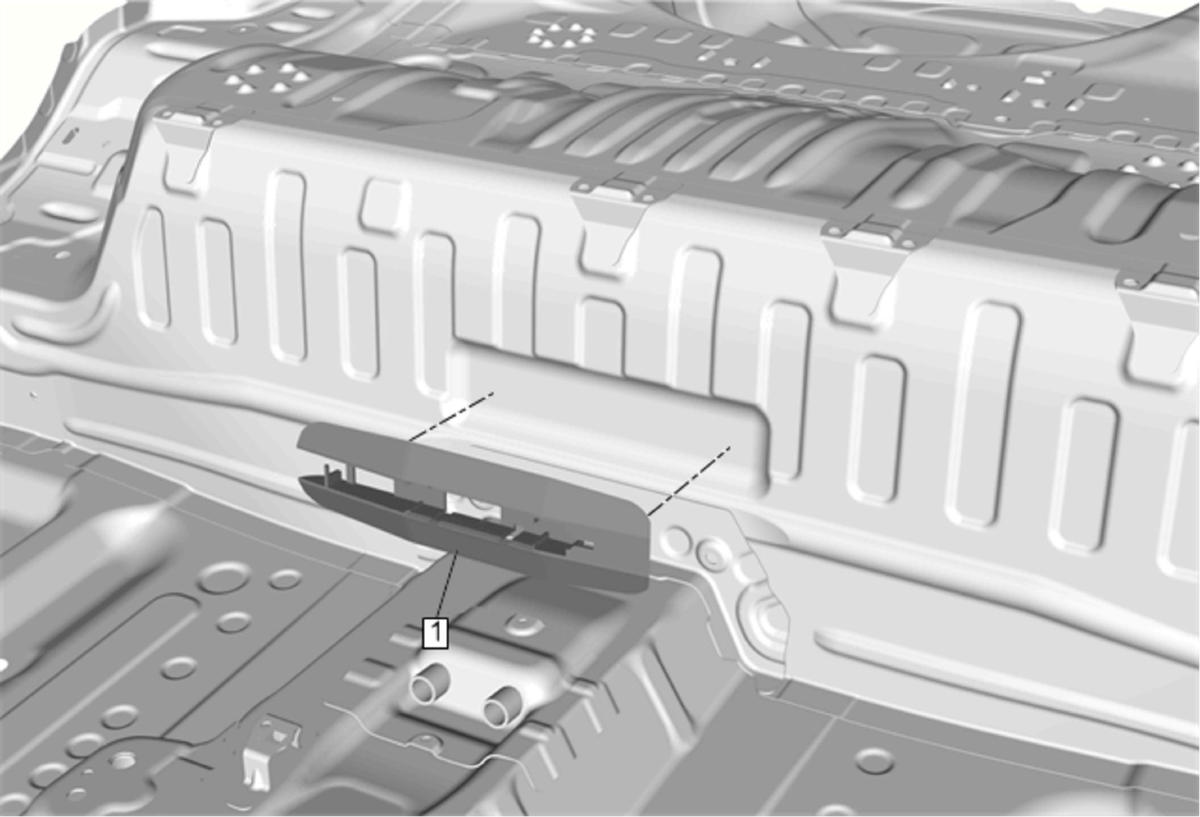

Fig 1: Ignition Lock Key Transmitter Antenna Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Ignition Lock Key Transmitter Antenna Replacement - Rear Compartment
1	Ignition Lock Key Transmitter Antenna Bracket Procedure  Install the ignition lock key transmitter antenna bracket to the rear compartment panel using 2 sided adhesive tape.
