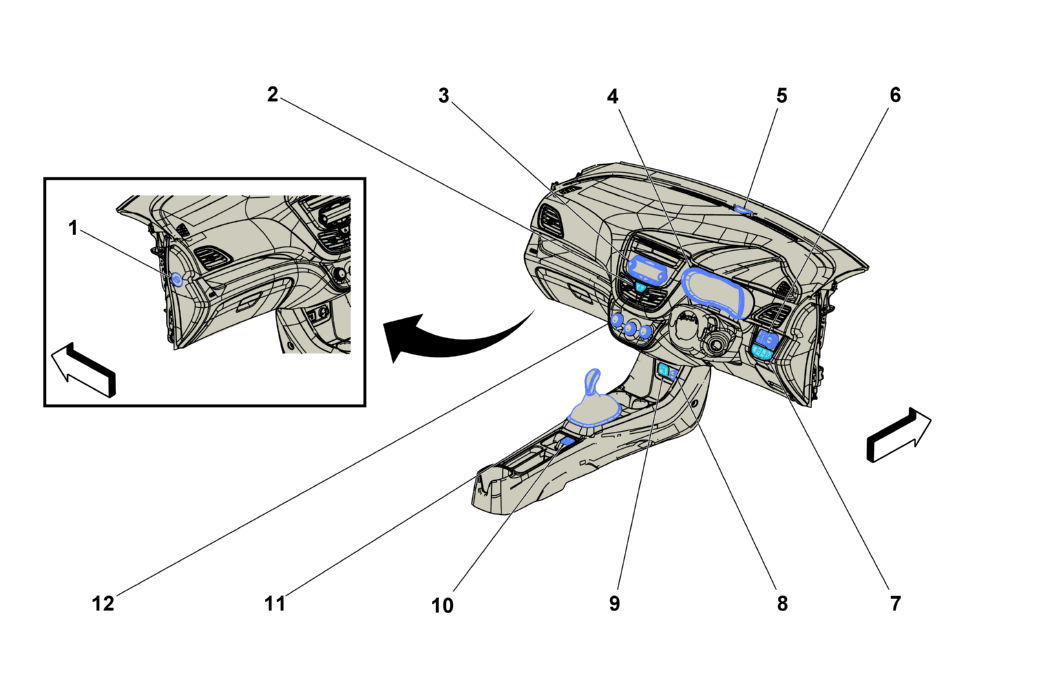

Instrument Panel Components (RHD)
Instrument Panel Components (RHD)
| Items |
|---|
| 1. S40 Passenger Air Bag Disable Switch (C99) S40 Passenger Air Bag Disable Switch |
| 2. S26 Hazard Warning Switch S26 Hazard Warning Switch |
| 3. A11 Radio (IOB, IP0 or IP1) A11 Radio X1 (IOB)A11 Radio X1 (IP0+IP1)A11 Radio X2A11 Radio X3 (IOB)A11 Radio X3A11 Radio X8 (IO3)A11 Radio X7 |
| 4. P16 Instrument Cluster P16 Instrument Cluster |
| 5. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 6. S30 Headlamp Switch S30 Headlamp Switch |
| 7. S48A Multifunction Switch - Instrument Panel S48A Multifunction Switch - Instrument Panel |
| 8. E32 Cigarette Lighter Receptacle E32 Cigarette Lighter Receptacle |
| 9. X83 Auxiliary Audio Input X83 Auxiliary Audio InputX83 Auxiliary Audio Input X2 |
| 10. S32 Seat Heating Switch (KA1) S32 Seat Heating Switch |
| 11. S3 Transmission Shift Lever (MFQ or MR8) S3 Transmission Shift Lever (MR8) |
| 12. S94 Blower Motor Switch (C41 or C60) S94 Blower Motor Switch |
