Body Control Module Bracket Replacement

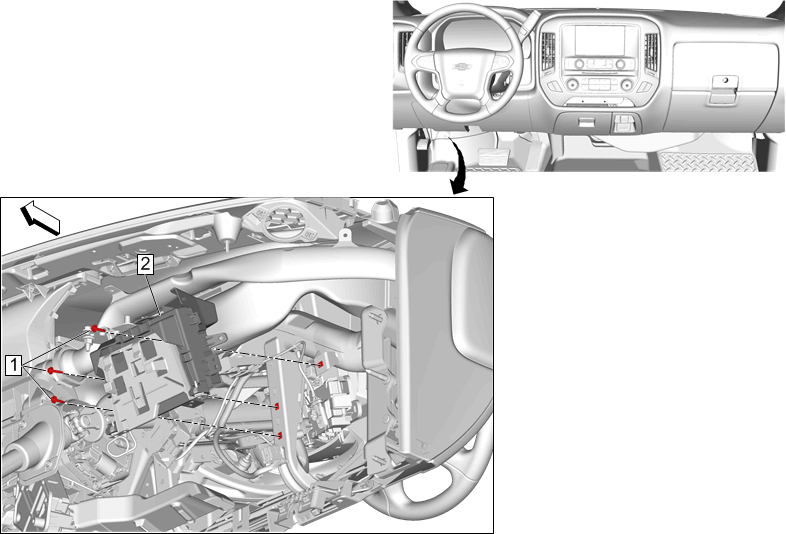

Fig 1: Body Control Module Bracket
GM4489152Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Body Control Module Replacement
1 Body Control Module Bracket Bolt (Qty: 3)
CAUTION:

Fastener Caution


Tighten
2 N.m (18 lb in)
2 Body Control Module Bracket

Procedure

  1. Release the instrument panel harness retainer, disconnect and unclip the airbag wiring harness connector from the plastic retainer on the body control module bracket.
  2. Transfer components as necessary.
