Body Control Module Replacement

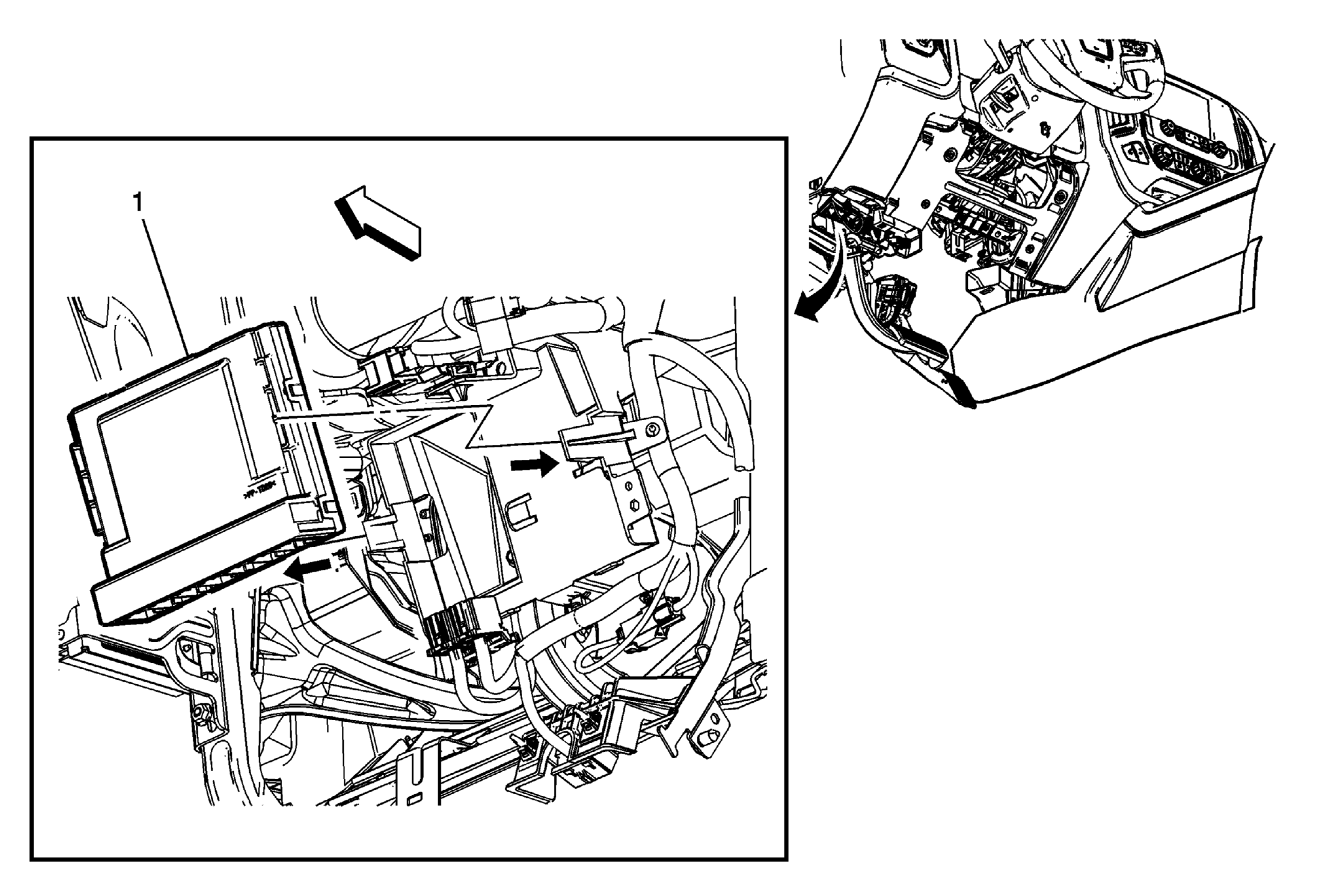

Fig 1: Body Control Module

GM3270017

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement (Chevrolet / GMC)Instrument Panel Knee Bolster Replacement (Cadillac) .

1

Body Control Module

Procedure

Disconnect the electrical connectors.
Press on the tabs to release the body control module.
If a replacement module is installed, program the module. Refer to Control Module References .
