Garage Door Opener Transmitter Replacement

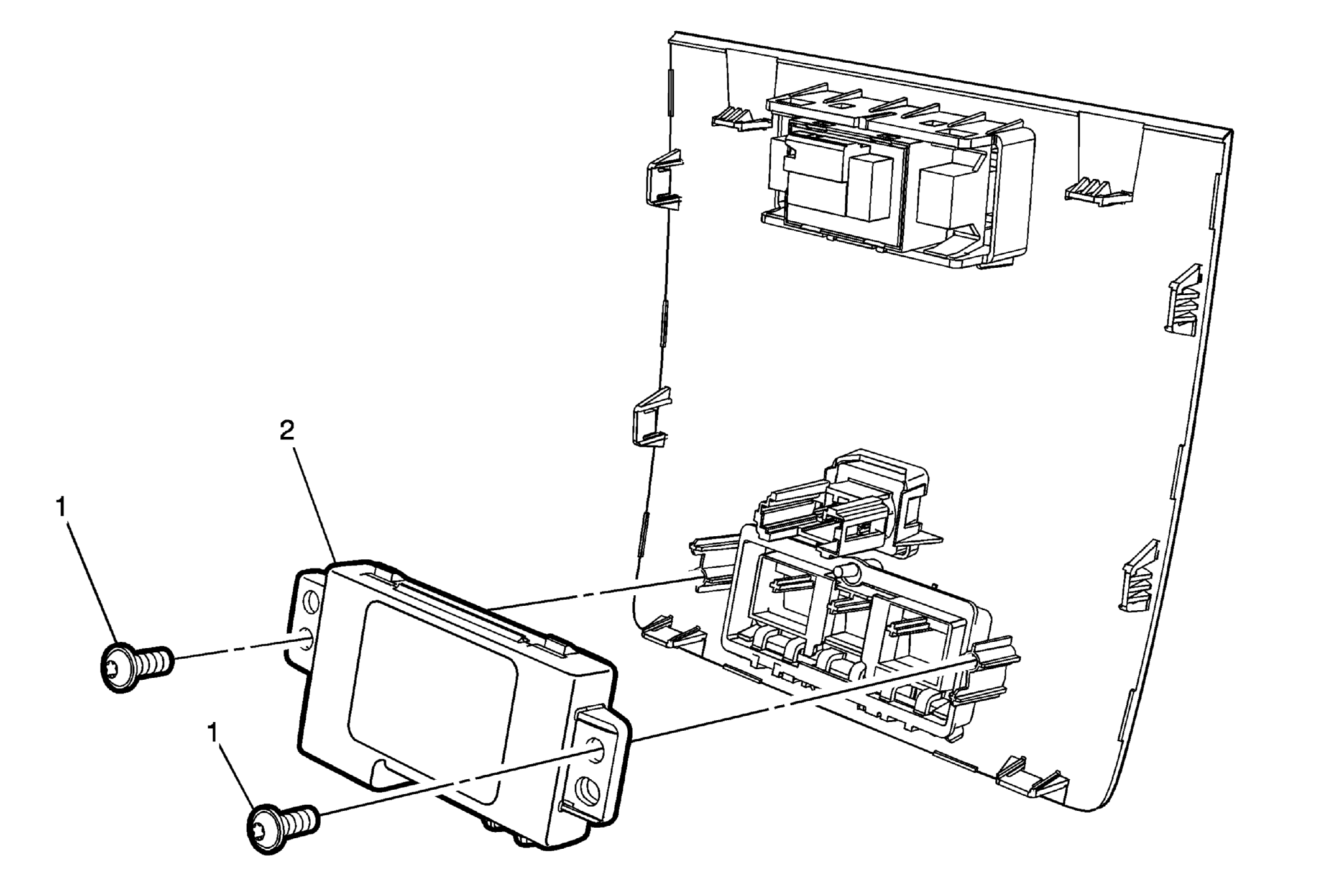

Fig 1: Garage Door Opener Transmitter
GM3256780Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Roof Console Opening Trim Plate. Refer to Roof Console Opening Trim Plate Replacement
1 Garage Door Opener Transmitter Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution


Tighten
1.5 N.m (13 lb in)
2 Garage Door Opener Transmitter
