Ignition Lock Key Transmitter Antenna Replacement - Rear Compartment

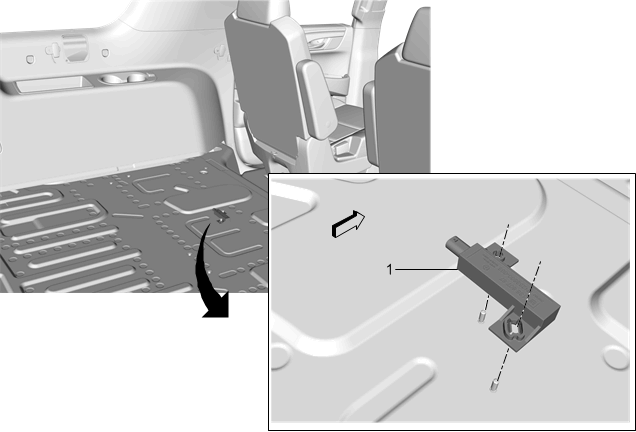

Fig 1: Ignition Lock Key Transmitter Antenna - Rear Compartment

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear floor panel carpet. Refer to Rear Floor Panel Carpet Replacement .
1	Ignition Lock Key Transmitter Antenna Procedure Disconnect the electrical connector. Remove antenna from the two weld studs on the rear floor panel.

Callout

Component Name

Preliminary Procedure
Remove the rear floor panel carpet. Refer to Rear Floor Panel Carpet Replacement .

Ignition Lock Key Transmitter Antenna

Procedure
