Remote Control Door Lock Receiver Replacement

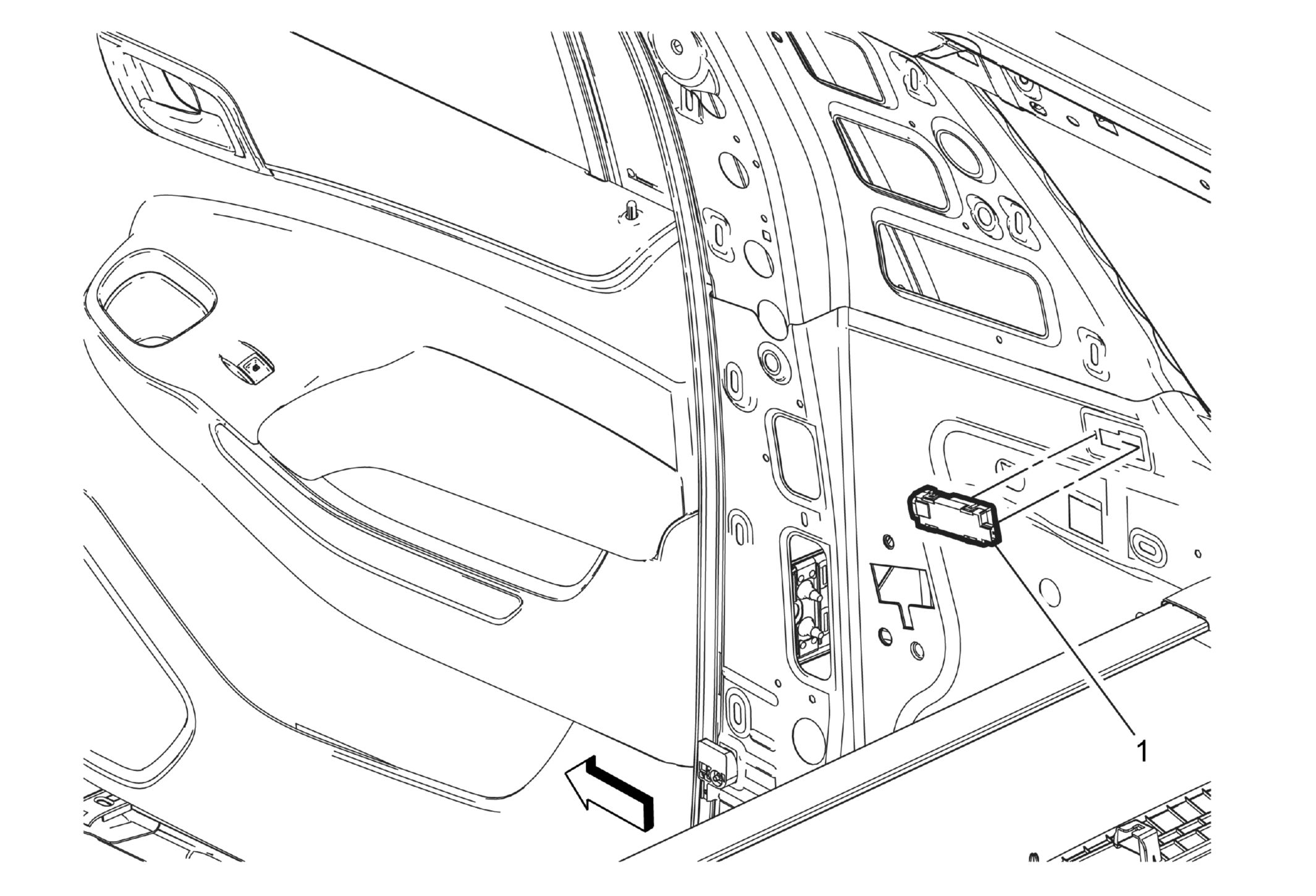

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the quarter lower rear trim panel - right side. Refer to Quarter Lower Rear Trim Panel Replacement (Right Side, Standard Wheelbase)Quarter Lower Rear Trim Panel Replacement (Right Side, Extended Wheelbase) .
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector and the radio antenna extension cable. Slide the receiver rearward to release.

Callout

Component Name

Remote Control Door Lock Receiver

Procedure
