Theft Deterrent Module Replacement (Without BTM)

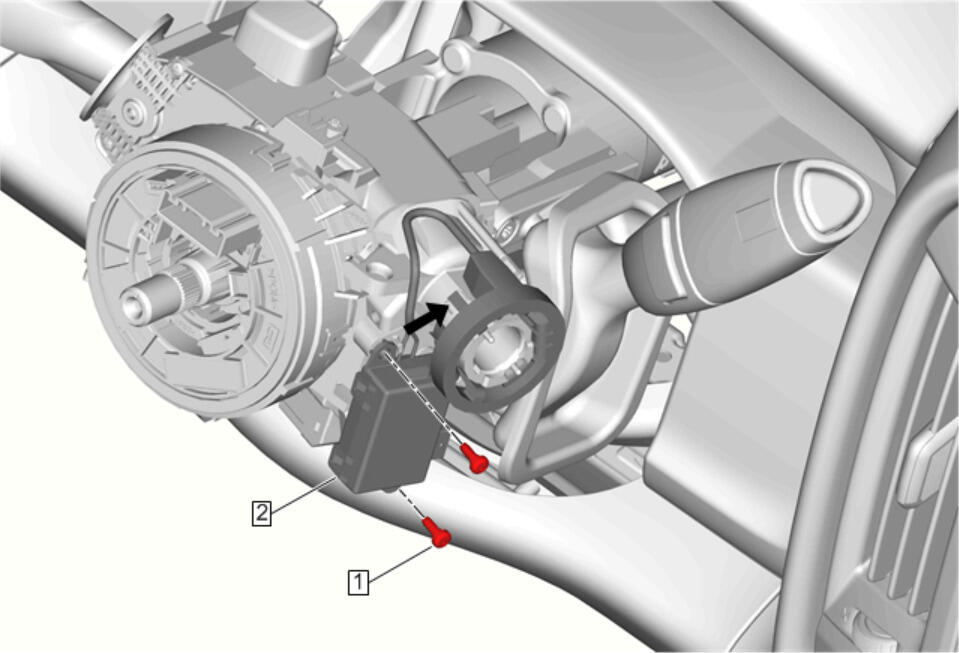

Fig 1: Theft Deterrent Module (Without BTM)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Ignition Lock Cylinder. Refer to Ignition Lock Cylinder Replacement NOTE: The steering wheel is shown removed for clarity only. It is NOT necessary to remove the steering wheel to perform the theft deterrent module replacement procedure.
1	Theft Deterrent Module Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Theft Deterrent Module Procedure Disconnect the electrical connector. Release the retaining tabs and remove the theft deterrent module from the ignition lock cylinder case. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove Ignition Lock Cylinder. Refer to Ignition Lock Cylinder Replacement

NOTE:

The steering wheel is shown removed for clarity only. It is NOT necessary to remove the steering wheel to perform the theft deterrent module replacement procedure.

Theft Deterrent Module Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Theft Deterrent Module

Procedure

Disconnect the electrical connector.
Release the retaining tabs and remove the theft deterrent module from the ignition lock cylinder case.
Perform the necessary programming and setup procedure: Control Module References
