Steering Wheel Heat Control Module Replacement

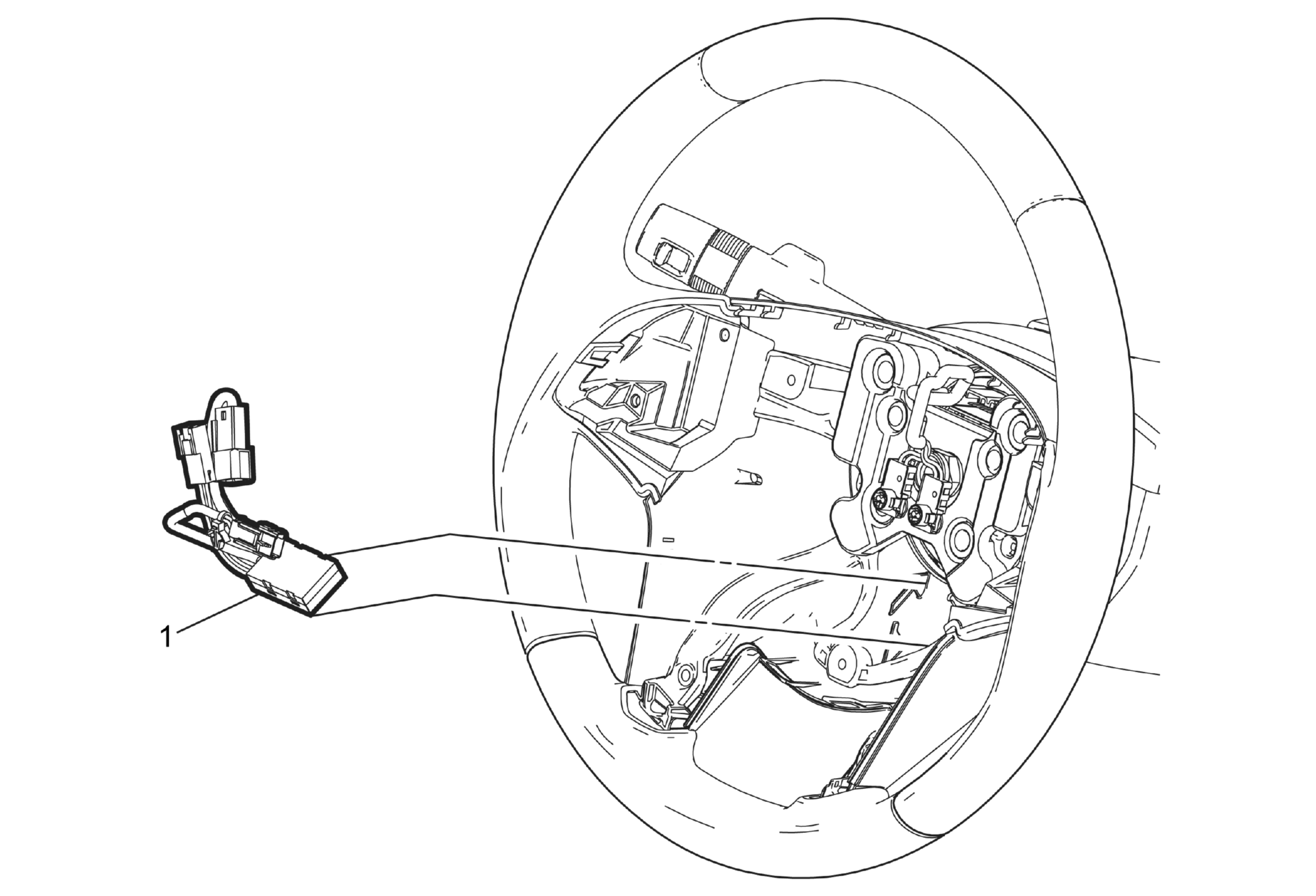

Fig 1: Steering Wheel Heat Control Module
GM3637756Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the steering wheel pad accessory wiring harness. Refer to Steering Wheel Pad Accessory Wiring Harness Replacement (Cadillac) .
1 Steering Wheel Heat Module
Procedure
Disconnect any electrical connectors as needed.
