Automatic Transmission Shift Lock Control Actuator Replacement (N38)

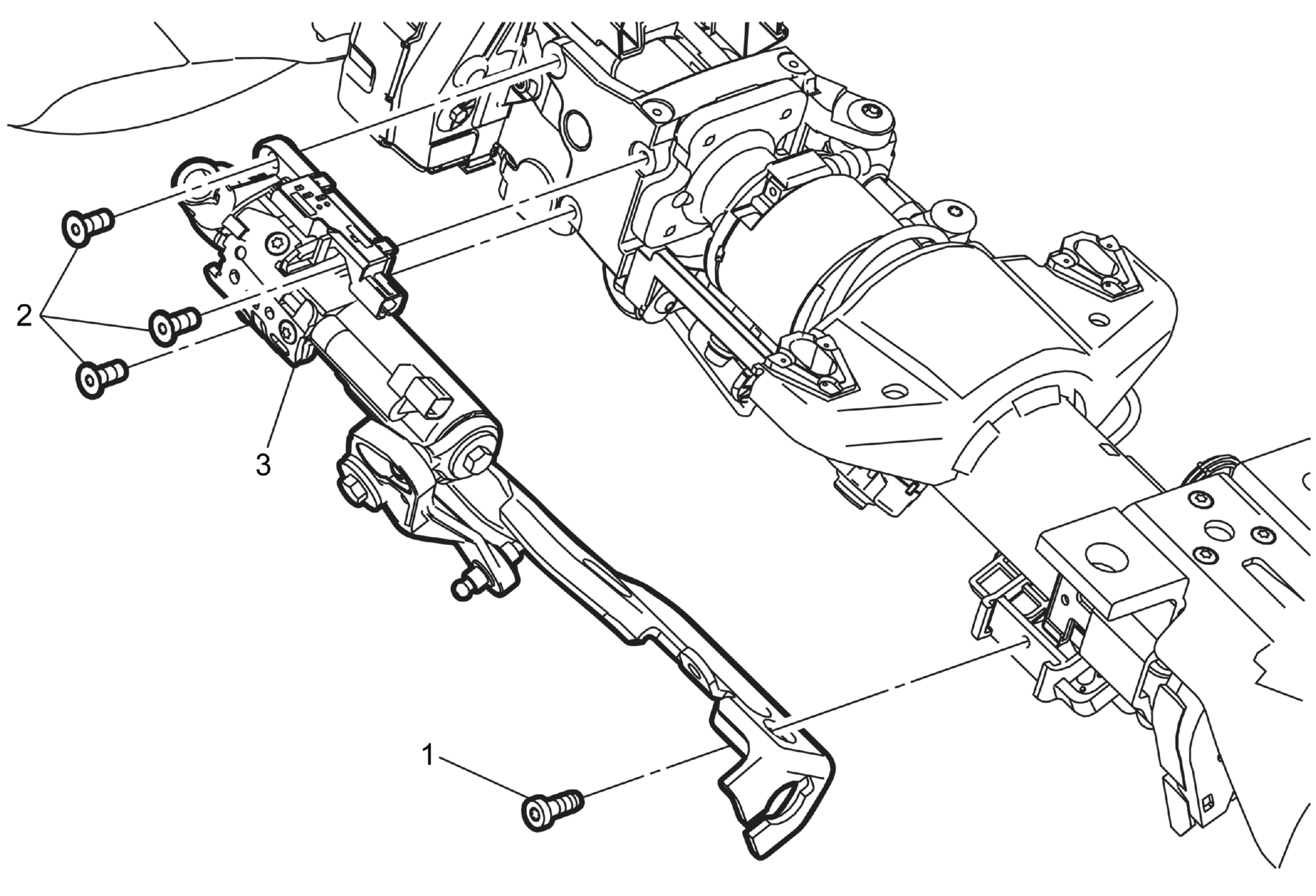

Fig 1: Transmission Control (N38)
GM3637762Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

Preliminary Procedures

  1. Steering Column Replacement (N38)
  2. Range Selector Lever Cable Lever Replacement (N38)
NOTE:

When equipped with the N38 steering column, the automatic transmission shift lock control actuator is service as part of the automatic transmission control. It is NOT serviced separately.
1 Automatic Transmission Control Bracket Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Automatic Transmission Control Bolt (Qty: 3)
Tighten
10 N.m (89 lb in)
3 Automatic Transmission Control

Procedure

  1. Disconnect the electrical connectors.
  2. Transfer components as necessary.
