Engine Front Cover
Engine Front Cover

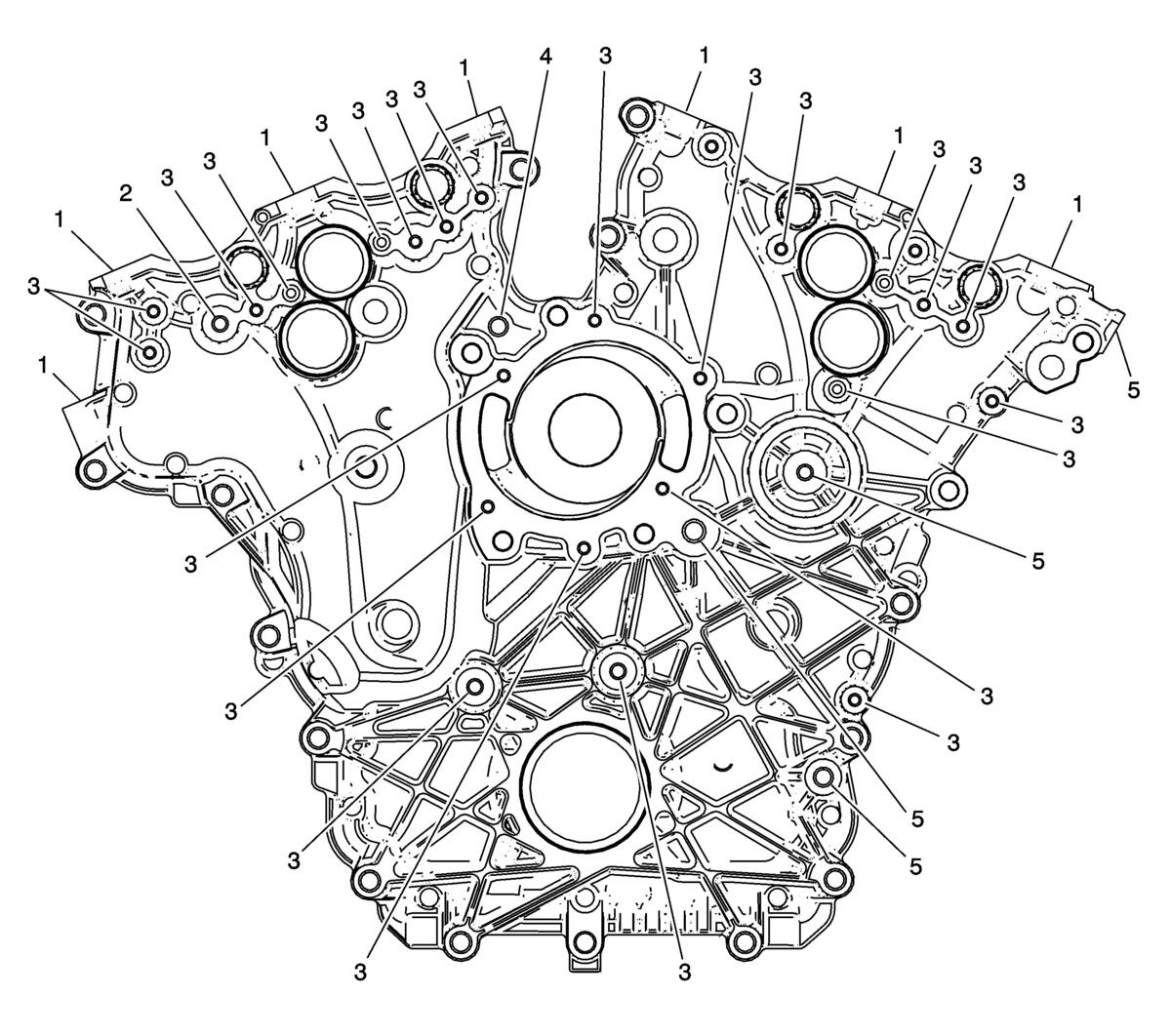

| Hole Location | Thread Size | Drill | Counter Bore Tool | Stop Collar | Tap | Driver | Insert | Drill Depth (Maximum) | Tap Depth (Minimum) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| J 42385 - | MM | (IN) | MM | (IN) | |||||||
| 1 | M6 x 1.0 | 201 | 202 | N/A | 203 | 204 | 205 | THRU | THRU | ||
| 2 | M8 x 1.25 | 206 | 207 | N/A | 208 | 209 | 210 | 28.5 | 1.1220 | 23.0 | 0.9055 |
| 3 | M6 x 1.0 | 201 | 202 | N/A | 203 | 204 | 205 | 21.5 | 0.8465 | 18.0 | 0.7087 |
| 4 | M10 x 1.5 | 211 | 212 | N/A | 213 | 214 | 215 | THRU | THRU | ||
| 5 | M10 x 1.5 | 211 | 212 | N/A | 213 | 214 | 420 | 32.5 | 1.2795 | 27.0 | 1.0630 |
