Front View Camera Replacement

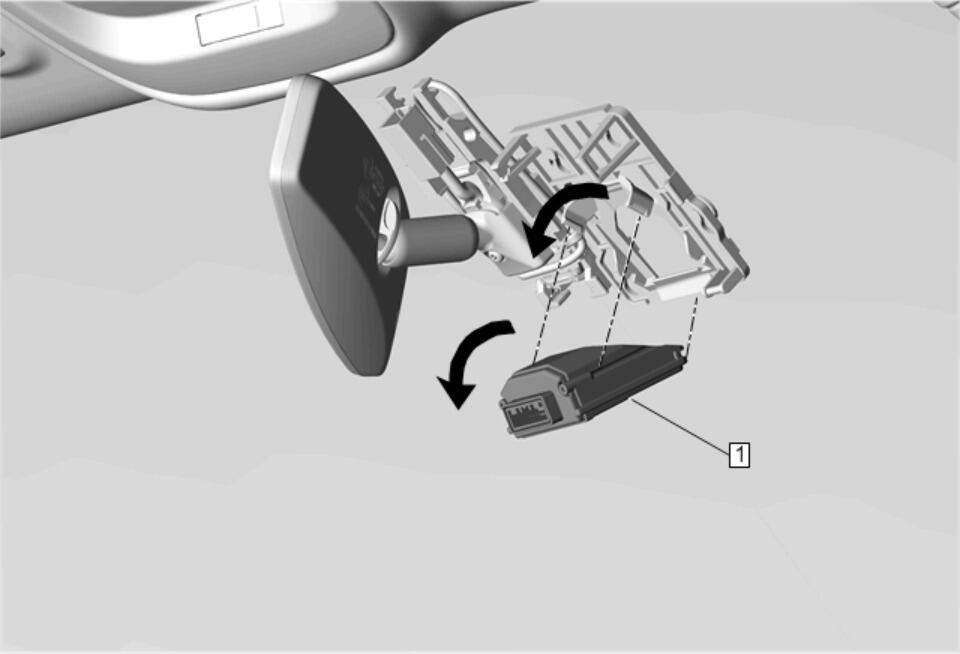

Fig 1: Front View Camera

GM3975606

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the inside rearview mirror mount plate cover. Refer to Inside Rearview Mirror Mount Plate Replacement .

1

Front View Camera

Procedure

Using a suitable plastic tool, insert the tool between the edge of the front view camera retainers, turn the tool to release the retainers and the camera and rotate downward.
Disconnect the electrical connector.
After replacement of the front view camera, program the front view camera. Refer to Control Module References .
