Side Object Sensing Alert Module Replacement

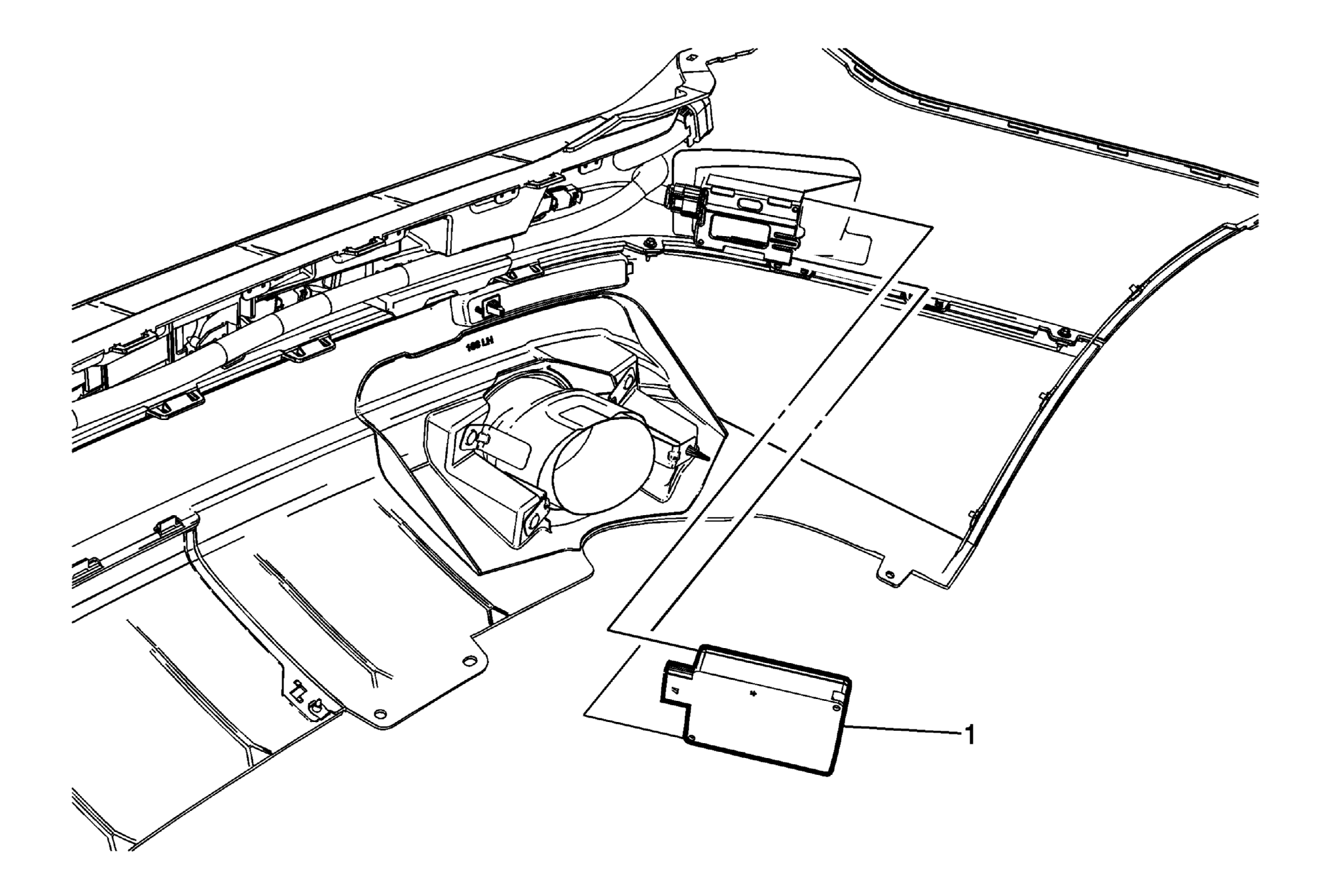

Fig 1: Side Object Sensing Alert Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Acadia)Rear Bumper Fascia Replacement (Enclave)Rear Bumper Fascia Replacement (Traverse) .
1	Side Object Sensor Module Procedure Disconnect the electrical connector. For programming and set up, refer to Control Module References . Slide module to release from bracket.

Callout

Component Name

Side Object Sensor Module

Procedure
