Communication Interface Module Replacement

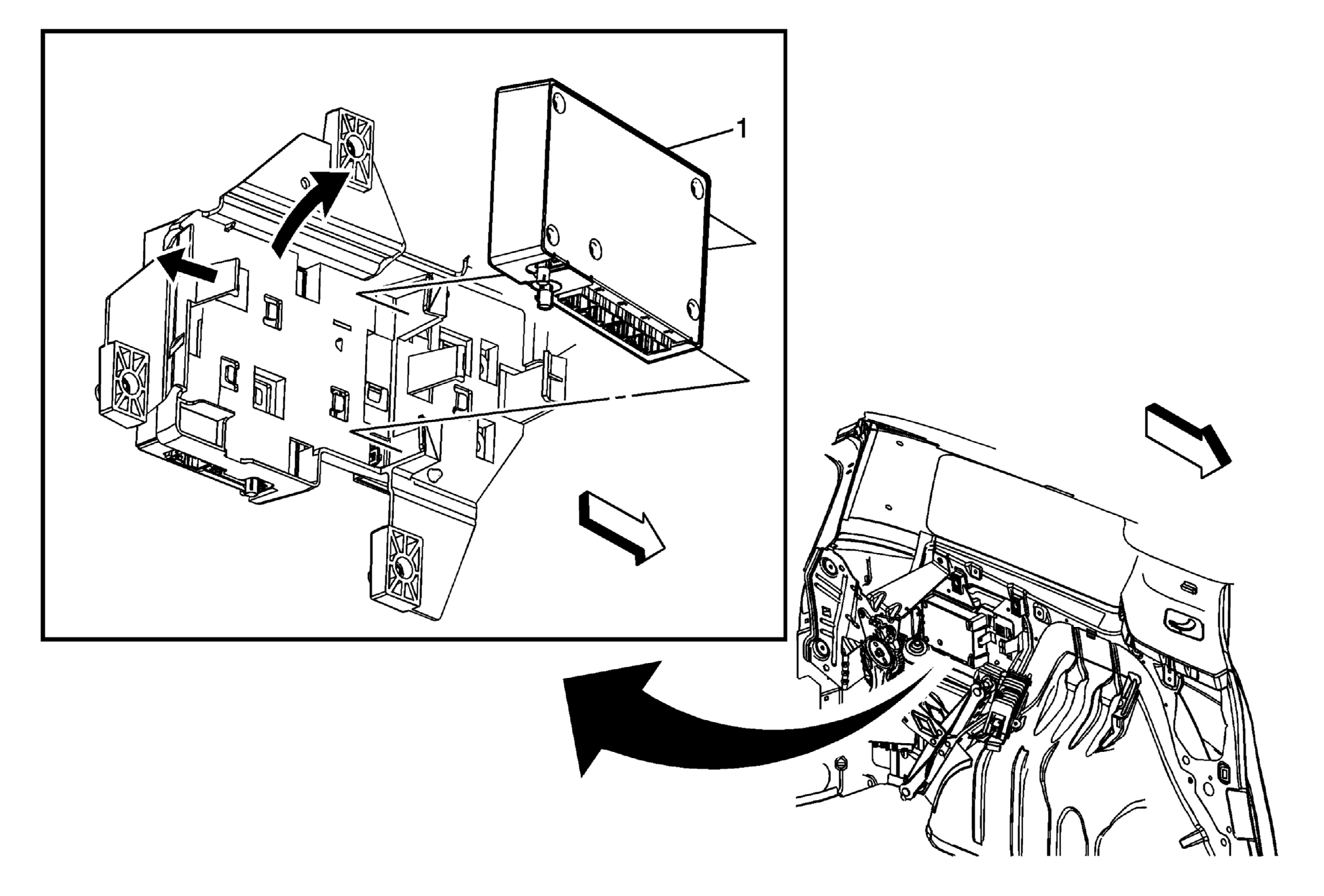

Fig 1: Communication Interface Module

GM1847143

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the left rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Traverse with TB5)Quarter Lower Rear Trim Panel Replacement (Traverse with TB4)Quarter Lower Rear Trim Panel Replacement (Enclave with TB5)Quarter Lower Rear Trim Panel Replacement (Enclave with TB4)Quarter Lower Rear Trim Panel Replacement (Acadia with TB5)Quarter Lower Rear Trim Panel Replacement (Acadia with TB4) .

1

Communication Interface Module

Procedure

Disconnect the electrical connectors.
When replacing the communication interface module be sure to transfer Bluetooth Antenna, if equipped.
Reprogram the communication interface module if replaced. Refer to Control Module References .
