Steering Wheel Control Switch Assembly Replacement (Traverse)

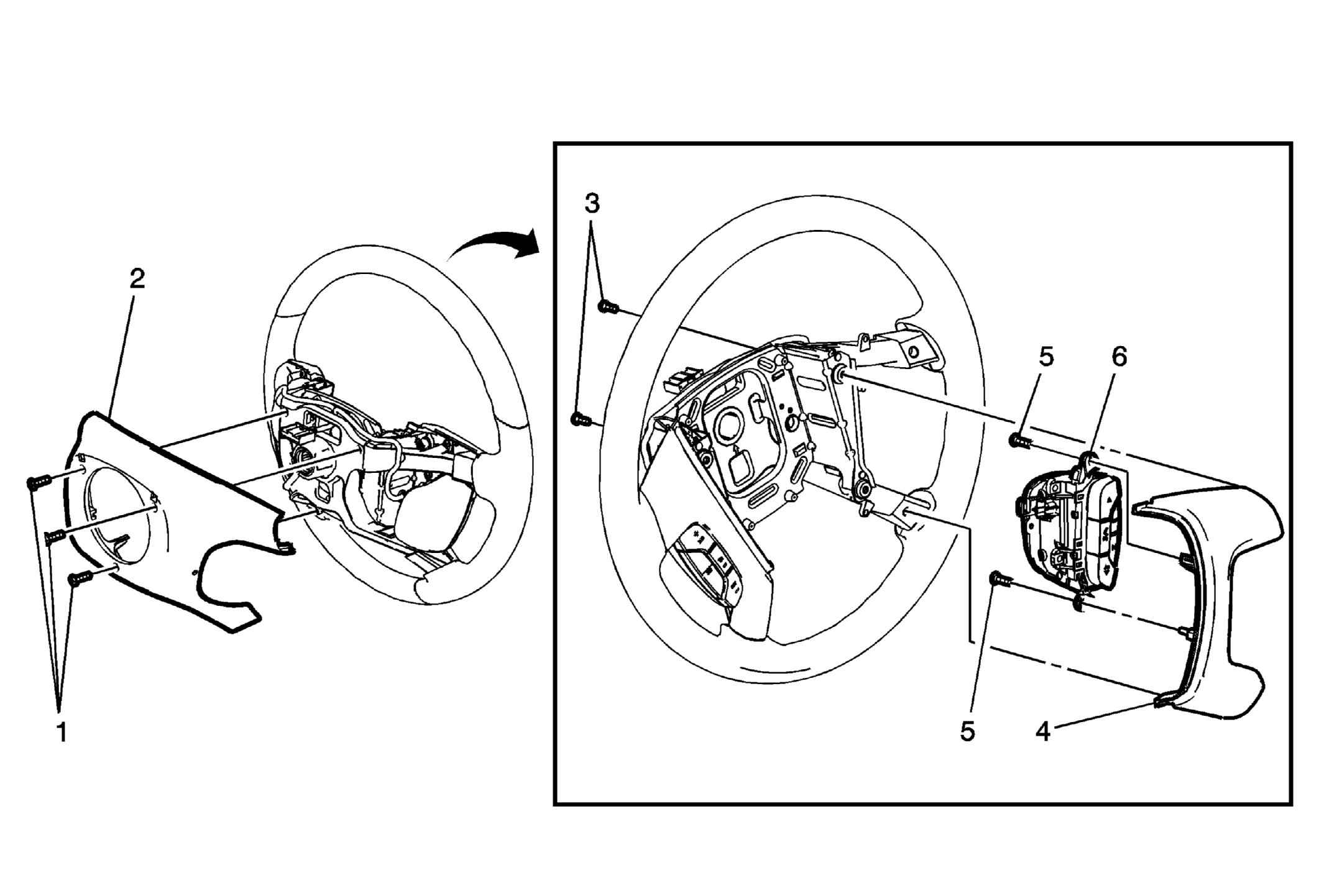

Fig 1: Steering Wheel Control Switch Assembly (Traverse)
GM2392835Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the inflatable restraint steering wheel module. Refer to Airbag Steering Wheel Module Replacement .
  2. Remove the steering wheel. Refer to Steering Wheel Replacement
1 Steering Wheel Rear Cover Screw (Qty: 3)
CAUTION:

Refer to Fastener Caution .
2 Steering Wheel Rear Cover
3 Steering Wheel Spoke Cover Screw (Qty: 4)
CAUTION:

Refer to Fastener Caution .
4 Steering Wheel Spoke Cover (Qty: 2)
TIP:  Use a flat-bladed plastic tool to disengage the 2 detent tabs and carefully pull cover from the 2 retainers.
5 Steering Wheel Control Switch Screw (Qty: 4)
CAUTION:

Refer to Fastener Caution .
6 Steering Wheel Control Switch Assembly (Qty: 2)

Procedure

  1. Radio control switch assembly is shown. Cruise control switch assembly is similar.
  2. Disconnect the electrical connector.
