Garage Door Opener Transmitter Replacement

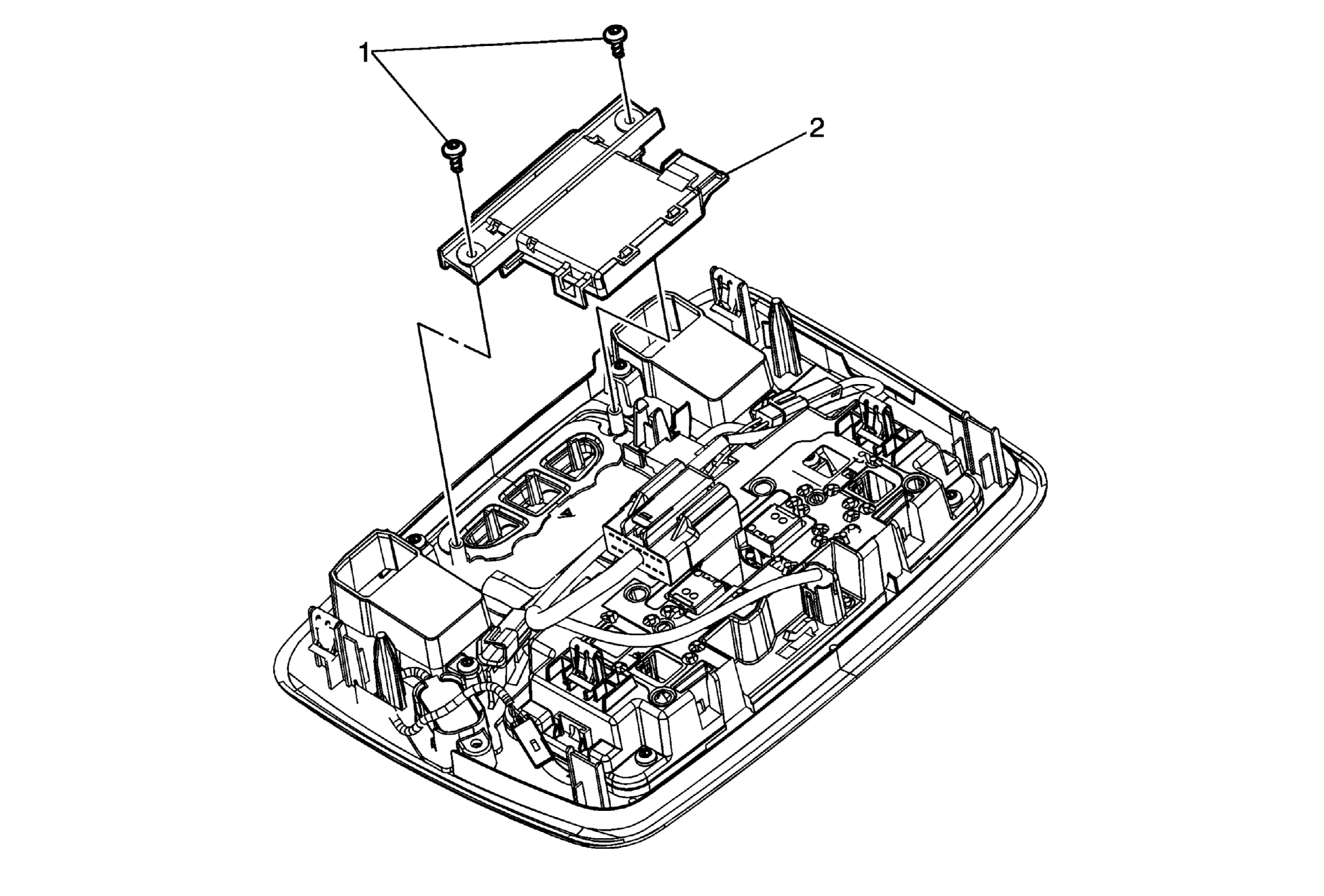

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the roof console assembly. Refer to Roof Console Replacement . |
|
| 1 | Garage Door Opener Transmitter Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Garage Door Opener Transmitter Assembly Procedure Disconnect the electrical connector. |
