Terminal Removal Procedure

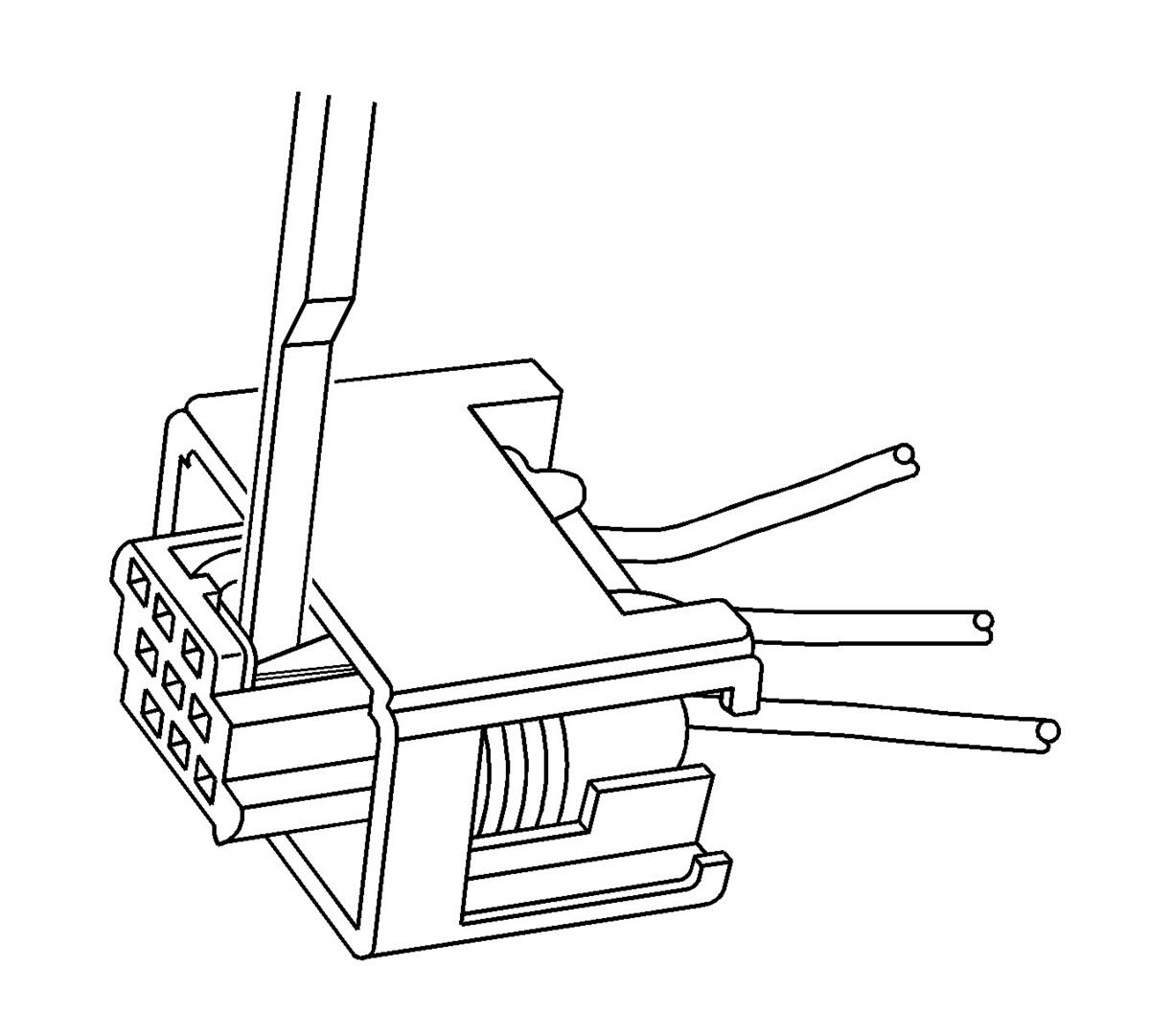

Fig 1: Inserting Special Tool Into Lower Right Face Cavity

Courtesy of GENERAL MOTORS COMPANY

Insert the J-38125-11A tool into the cavity on the lower right hand face of the connector until the terminal release tang access panel slides over.

Fig 2: Pushing Wire Side Of Terminal Toward Connector

Courtesy of GENERAL MOTORS COMPANY

Ensure that the terminal release tang access panel is in the correct location to access the terminals.
Push the wire side of the terminal that is being removed toward the connector and hold it in position.

Fig 3: Inserting Tool Into Terminal Release Tang Access Slot (Sensor)

Courtesy of GENERAL MOTORS COMPANY

Insert the J-38125-11A into the terminal release tang access slot located behind the access panel of the connector and press down on the terminal while carefully pulling the terminal out of the connector. Always remember never use force when pulling a terminal out of a connector. If the terminal is difficult to remove, repeat the entire procedure.
Repair the terminal by following the Repairing Connector Terminals (Terminated Lead Repair) Repairing Connector Terminals (Terminal Repair) procedure.
Insert the repaired terminal back into the cavity. Repeat the diagnostic procedure to verify the repair and reconnect the connector bodies.
