Inside Rearview Mirror Replacement

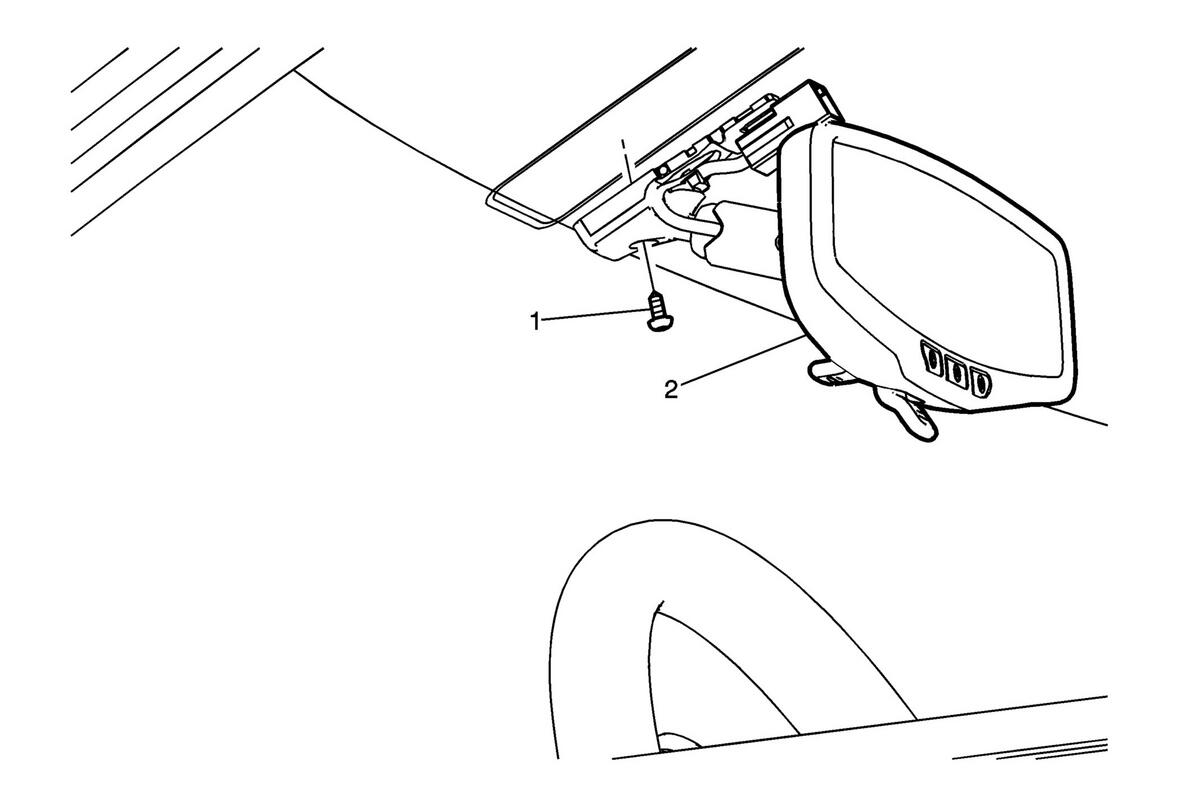

Fig 1: Inside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Inside Rearview Mirror Screw CAUTION: Refer to Fastener Caution . Procedure Remove the inside rearview mirror cover, if equipped. Tighten 2 N.m (18 lb in)
2	Inside Rearview Mirror Procedure Disconnect the electrical connector, if equipped. Adjust the mirror to the full upward position. Slide the mirror upward off of the rearview mirror button. Refer to Control Module References for programming and setup information.

Callout

Component Name

Inside Rearview Mirror Screw

CAUTION:

Procedure
Remove the inside rearview mirror cover, if equipped.
Tighten
2 N.m (18 lb in)

Inside Rearview Mirror

Procedure
