Outside Rearview Mirror Remote Control Switch Replacement

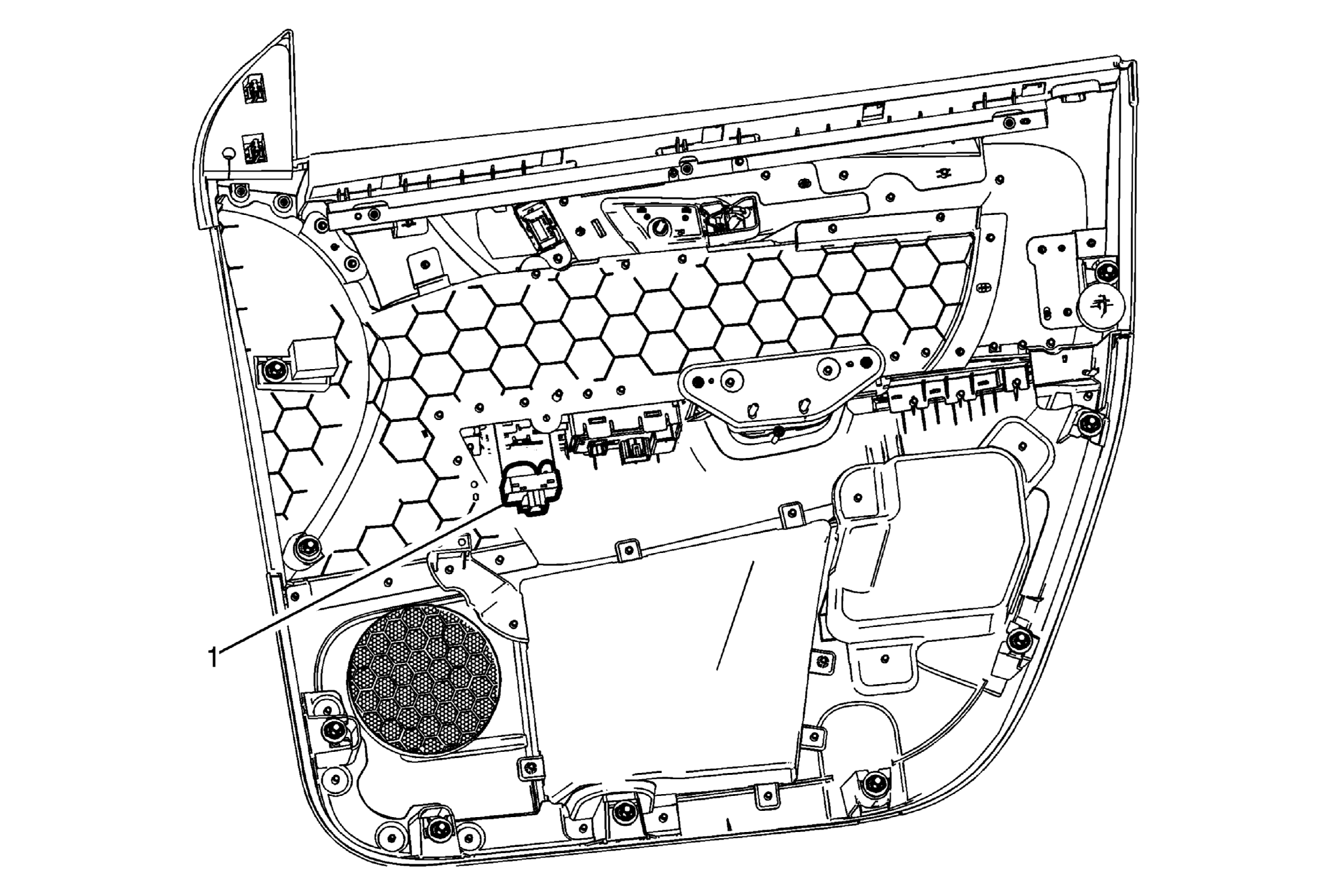

Fig 1: Outside Rearview Mirror Remote Control Switch

GM2889752

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the driver side door trim panel and place on a flat surface. Refer to Front Side Door Trim Panel Replacement - Left Side (Acadia or Traverse)Front Side Door Trim Panel Replacement - Left Side (Enclave) .

1

Outside Remote Control Rearview Mirror Switch Assembly

Procedure

Disconnect the electrical connector from the switch.
Release the switch from the underside of the door trim panel by depressing the tabs along each side of the switch.
Refer to Control Module References for programming and set-up procedures, if required.
