Power Mirror Replacement

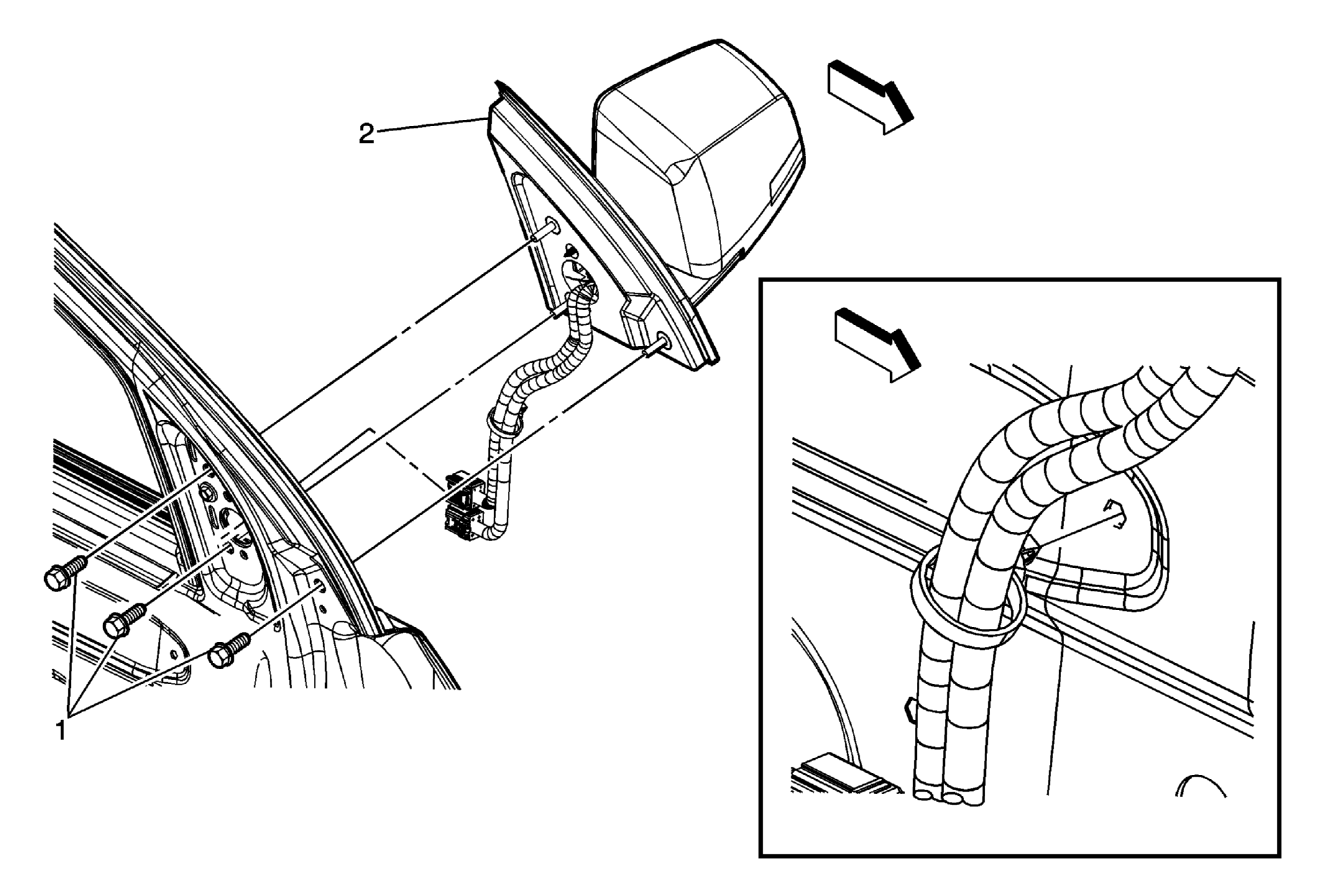

Fig 1: Power Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Acadia or Traverse)Front Side Door Trim Panel Replacement - Left Side (Enclave) , or Front Side Door Trim Panel Replacement - Right Side (Enclave)Front Side Door Trim Panel Replacement - Right Side (Acadia or Traverse) . Remove the front side door upper garnish molding, if equipped. Refer to Front Side Door Garnish Molding Replacement (Enclave) .
1	Outside Rearview Mirror Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 10 N.m (89 lb in)
2	Outside Rearview Mirror Procedure Remove the retainer holding the window reveal molding at the lower corner of the door in three positions.

Callout

Component Name

Preliminary Procedures

Outside Rearview Mirror Nut (Qty: 3)

CAUTION:

Procedure
Disconnect the electrical connector.
Tighten
10 N.m (89 lb in)

Outside Rearview Mirror
Procedure
Remove the retainer holding the window reveal molding at the lower corner of the door in three positions.
