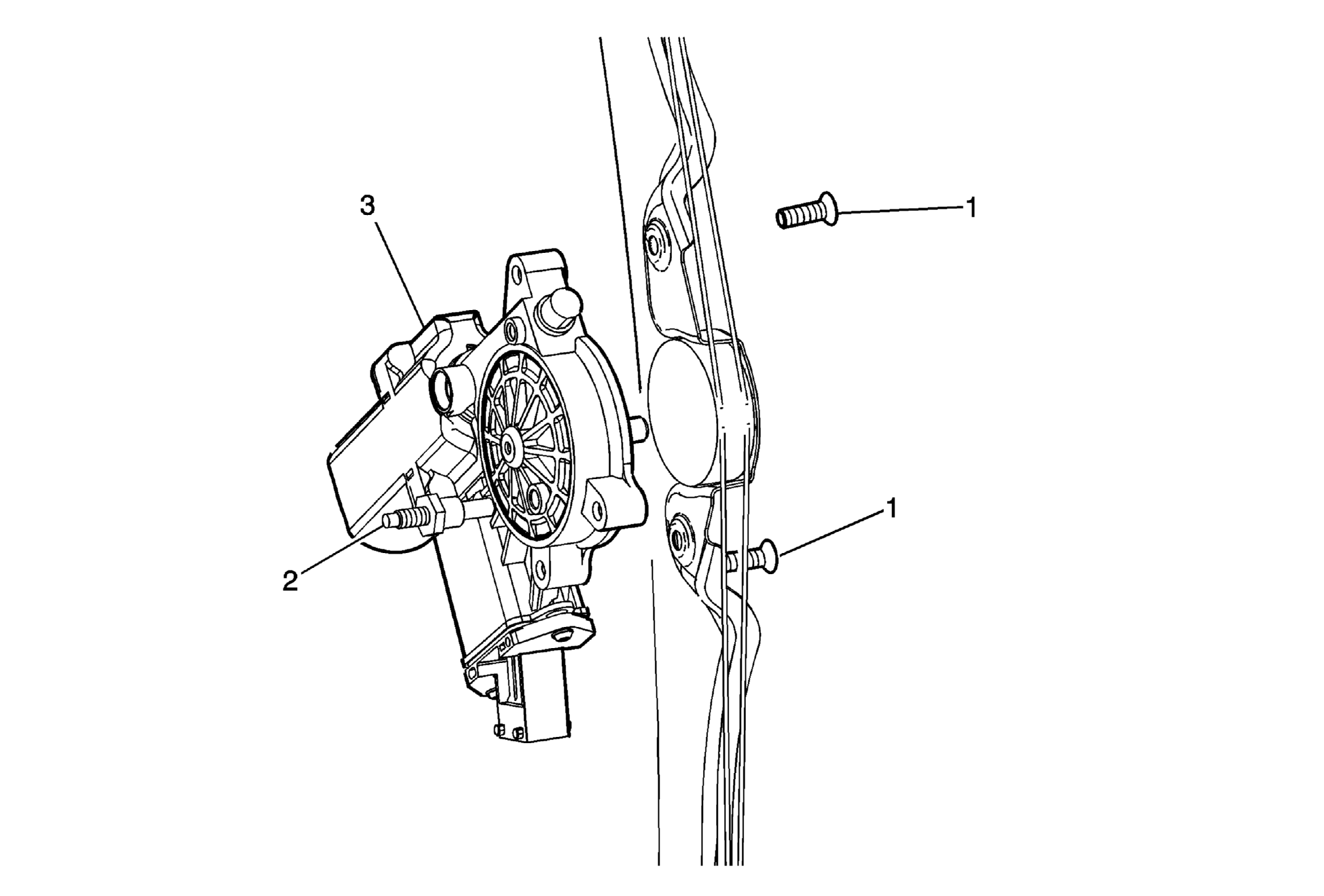

Door Window Regulator Motor Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the window regulator. Refer to Front Side Door Window Regulator Replacement , or Rear Side Door Window Regulator Replacement . |
|
| 1 | Door Window Regulator Motor Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 5 N.m (44 lb in) |
| 2 | Door Window Regulator Motor Stud Bolt Tighten 5 N.m (44 lb in) |
| 3 | Door Window Regulator Motor Procedure Reprogram the window motor. Refer to Control Module References . |
