Installation Procedure

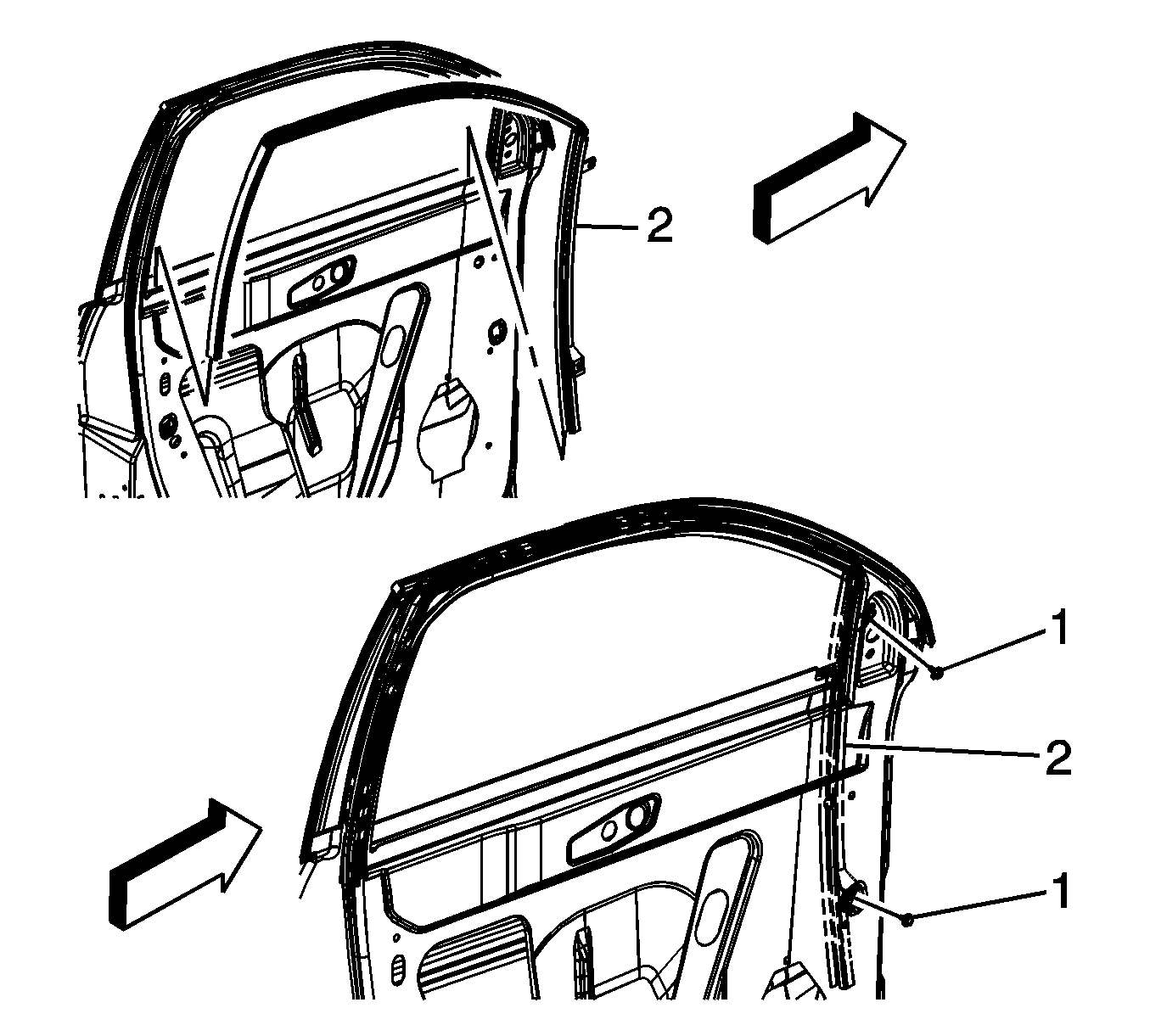

    Fig 1: Locating Weatherstrip/Run Channel & Bolts
    GM1843993Courtesy of GENERAL MOTORS COMPANY
  1. Install the weatherstrip/run channel (2) to the door.
  2. Position the tabs on the weatherstrip/run channel into the slots in the door.
  3. Press the weatherstrip/run channel into the window frame opening.
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install the retaining bolts (1).

    Tighten

    Tighten the retaining bolts to 10 N.m (88 lb in).

  5. Install the door speaker. Refer to Radio Front Side Door Speaker Replacement .
  6. Install the window. Refer to Front Side Door Window Replacement .
  7. Install the water deflector. Refer to Front Side Door Water Deflector Replacement .
  8. Install the door trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Acadia or Traverse) , or Front Side Door Trim Panel Replacement - Right Side (Acadia or Traverse) .
