Removal Procedure

WARNING:

NOTE:

Before cutting out a quarter window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

Open the liftgate.
Remove the rear quarter panel trim. Refer to Quarter Upper Trim Panel Replacement (TB5)Quarter Upper Trim Panel Replacement (TB4) .
Cover the following parts to protect from broken glass, seats and carpeting.

Fig 1: Separating Urethane Adhesive From Window

Courtesy of GENERAL MOTORS COMPANY

WARNING:

NOTE:

Keep the cutting edge of the tool against the window.

Remove the window from the urethane adhesive.
- Leave a base of auto-adhesive on the pinchweld flange.
- The only suitable lubrication is clean water, no oils, lubes or soaps.
- Use BO-24402-A Glass Sealant Remover (Cold Knife).
- BO-39032 Stationary Glass Removal Tool, or equivalent in order to remove the window.

Fig 2: Separating Bottom Of Window

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Keep the cutting edge of the knife/tool against the window. Do this from inside the vehicle.

If necessary, use a long utility knife or similar tool to remove the bottom corners of the window from the urethane adhesive.

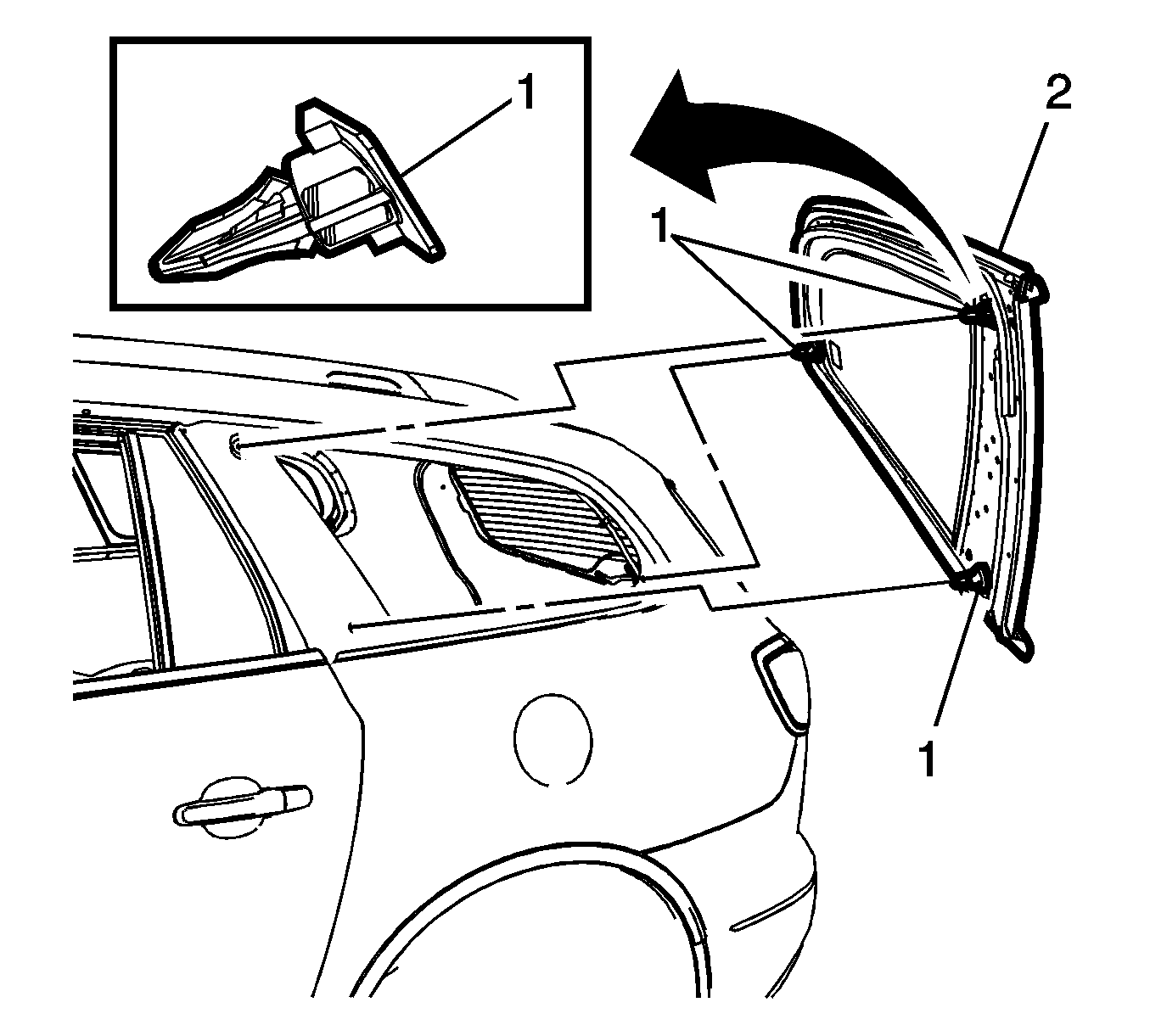

Fig 3: Quarter Window (Enclave/Traverse)

Courtesy of GENERAL MOTORS COMPANY

With an assistant, remove the window (2) from the vehicle. Check that the retainers (1) are still attached to the window before installing.
