Rear Side Door Window Switch Replacement (Traverse)

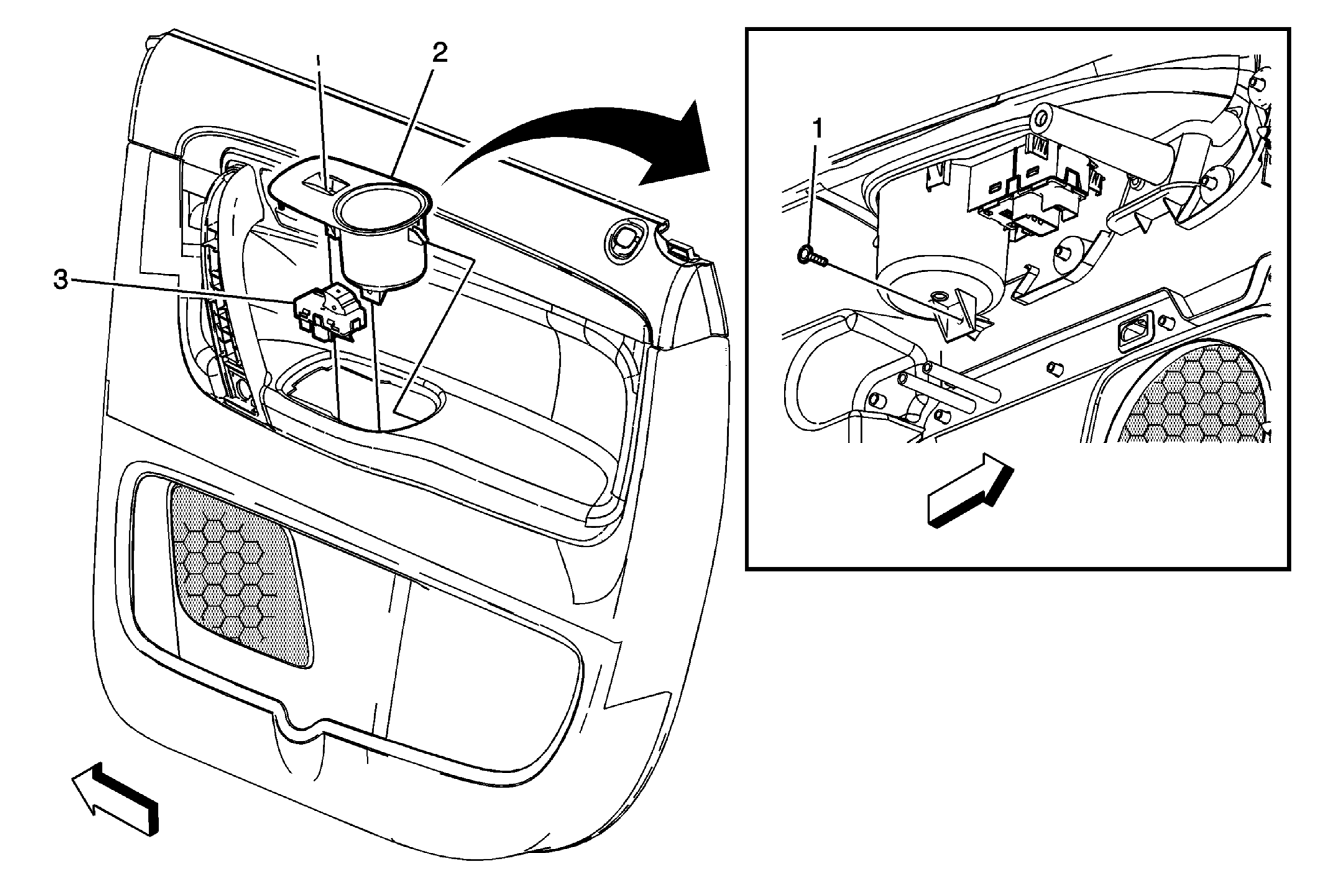

Fig 1: Rear Side Door Window Switch (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove rear door trim panel. Refer to Rear Side Door Trim Panel Replacement (Acadia or Traverse) .
1	Rear Switch Plate Screw CAUTION: Refer to Fastener Caution . Tighten  2 N.m (18 lb in)
2	Rear Switch Plate Assembly TIP:  Use a flat-bladed tool to pry switch plate from door trim.
3	Rear Side Door Window Switch Assembly TIP:  Disconnect electrical connectors.
