Defogger Wiring Schematics: Defogger

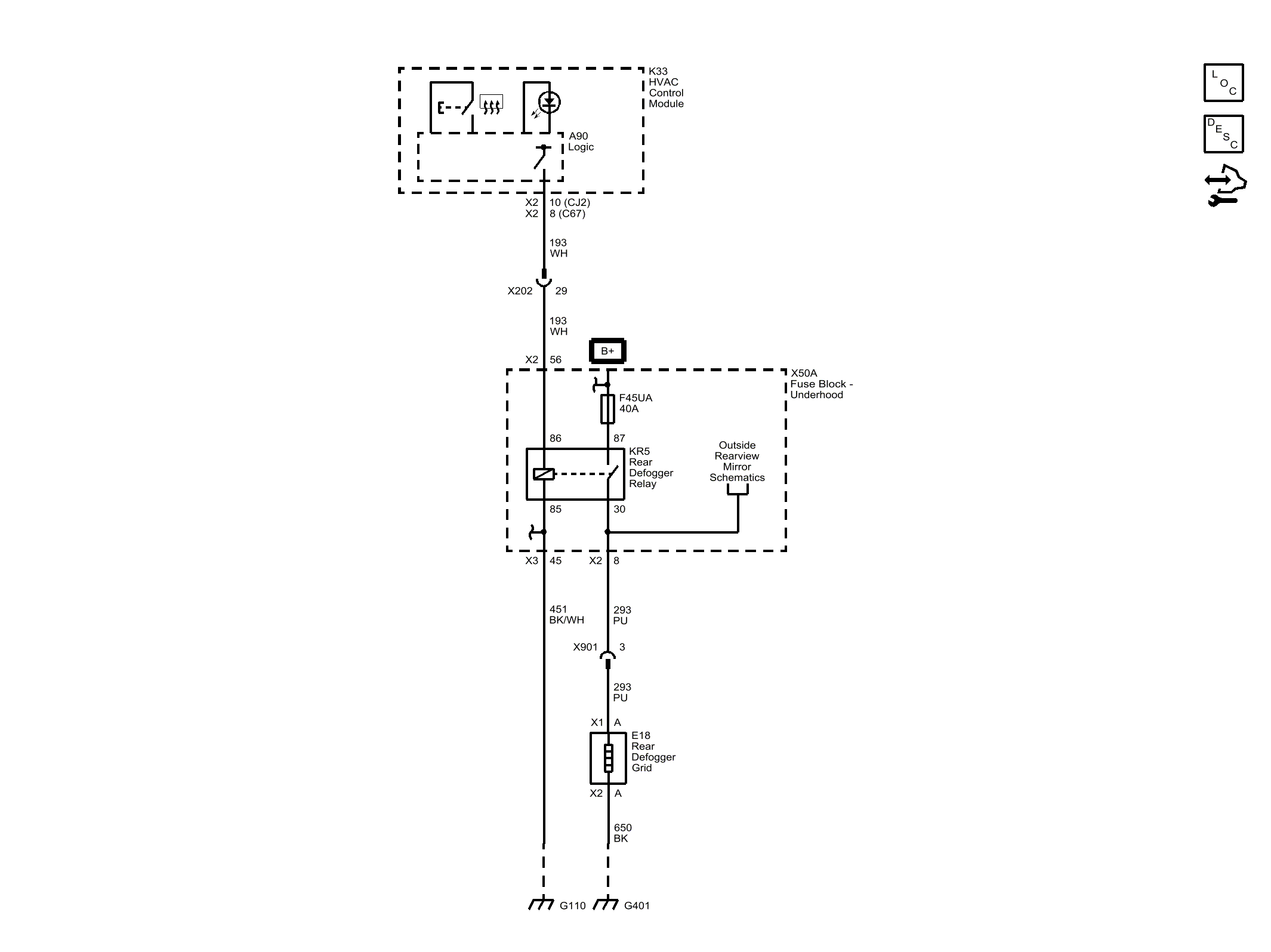

Fig 1: Defogger
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
