Installation Procedure

Fig 1: BPMV Insulators

Courtesy of GENERAL MOTORS COMPANY

Install the lower BPMV bracket insulator.
Use denatured alcohol on the BPMV bracket insulator as an installation aid, if necessary.
Install the 2 upper BPMV bracket insulators.
Use denatured alcohol on the BPMV bracket insulators as an installation aid, if necessary.
Install the BPMV bracket to the BPMV.

Fig 2: BPMV Insulator Nuts & Washers

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Install the 2 BPMV washers and nuts.
Tighten

Tighten the nuts to 8 N.m (71 lb in).

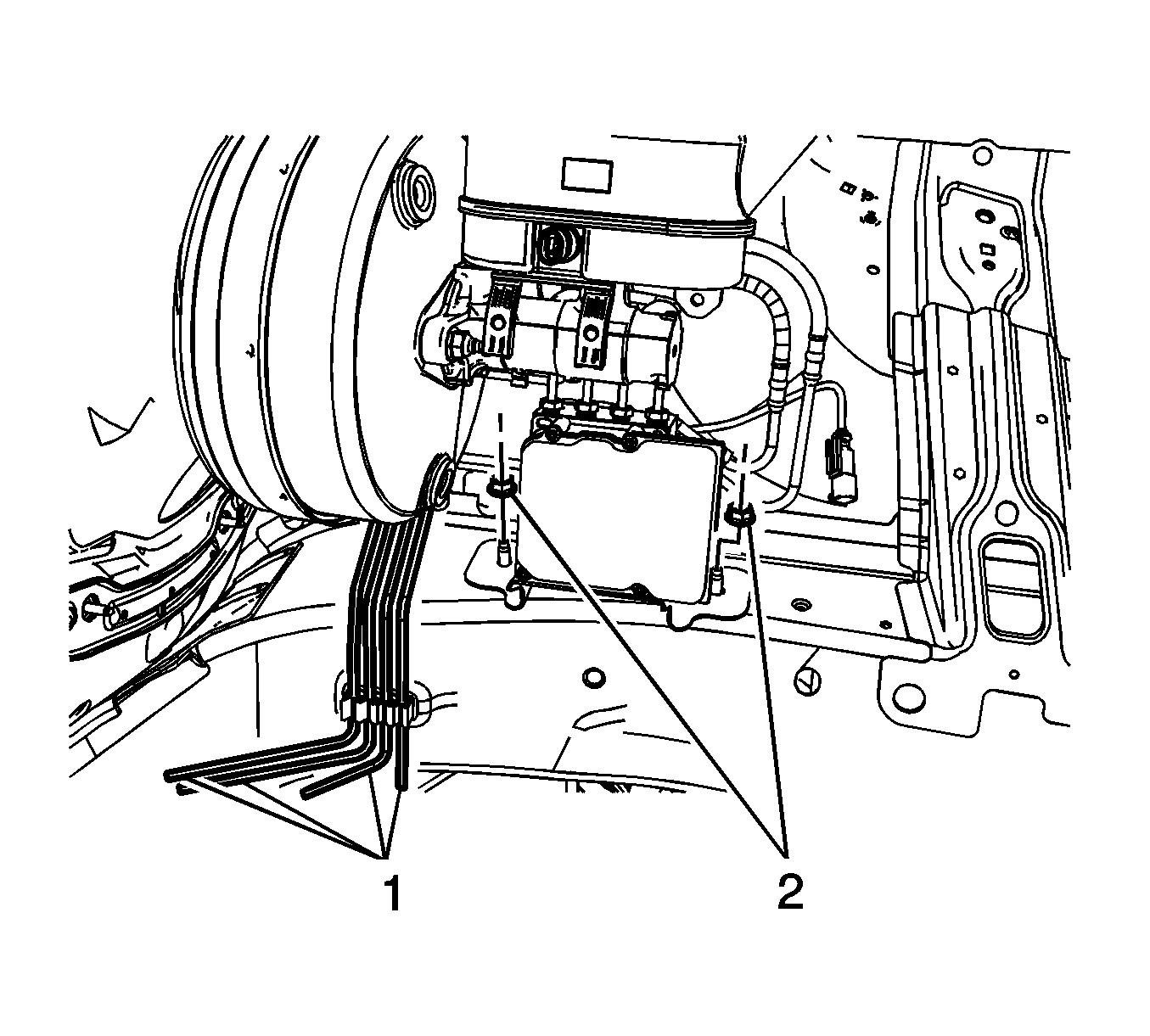

Fig 3: Brake Pressure Modulator Valve Bracket

Courtesy of GENERAL MOTORS COMPANY

Install the 2 BPMV bracket nuts (2).
Tighten

Tighten the nuts to 20 N.m (15 lb ft).
Install the front and rear brake pipes (1) to the routing clip on the frame rail.
Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
